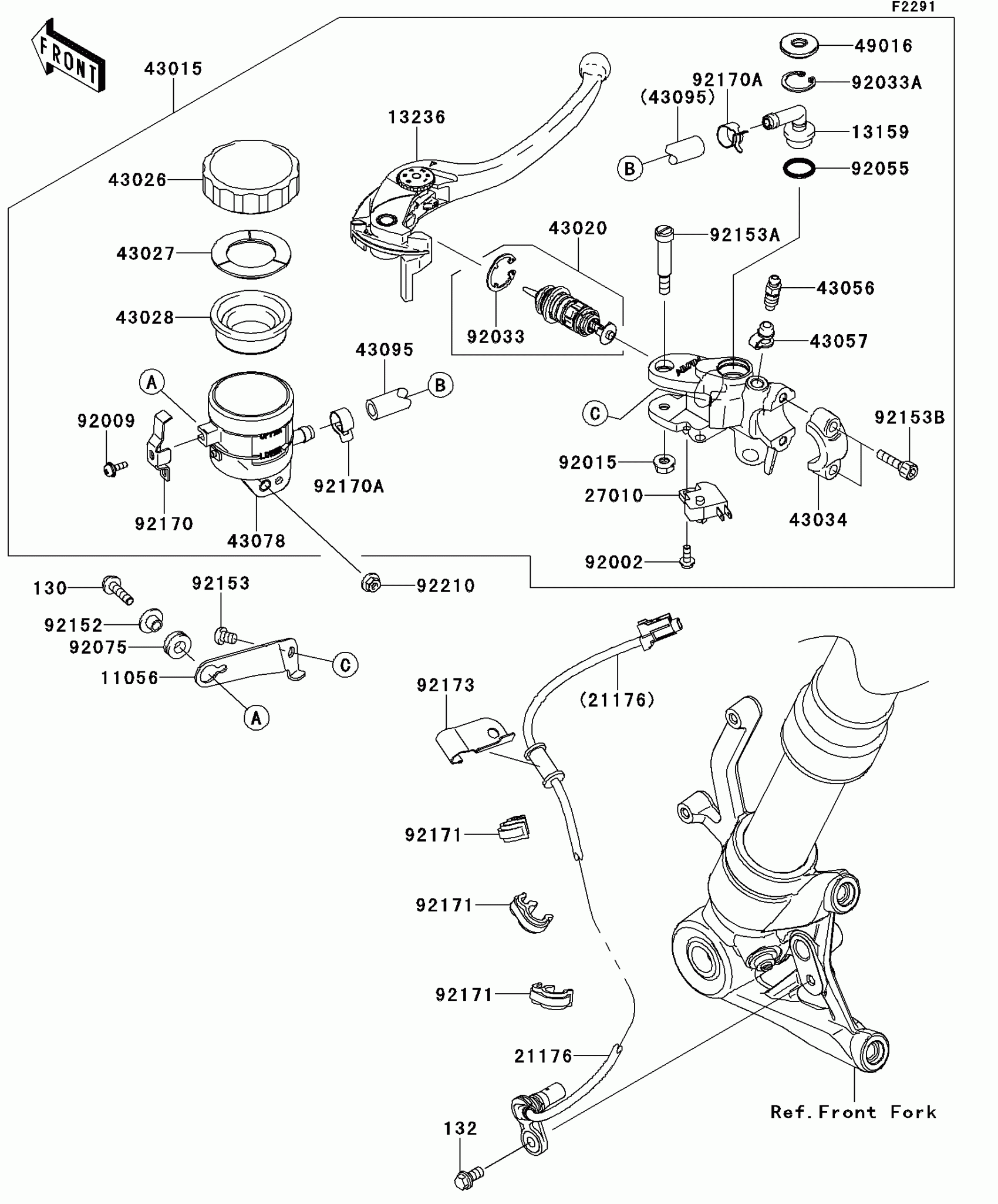

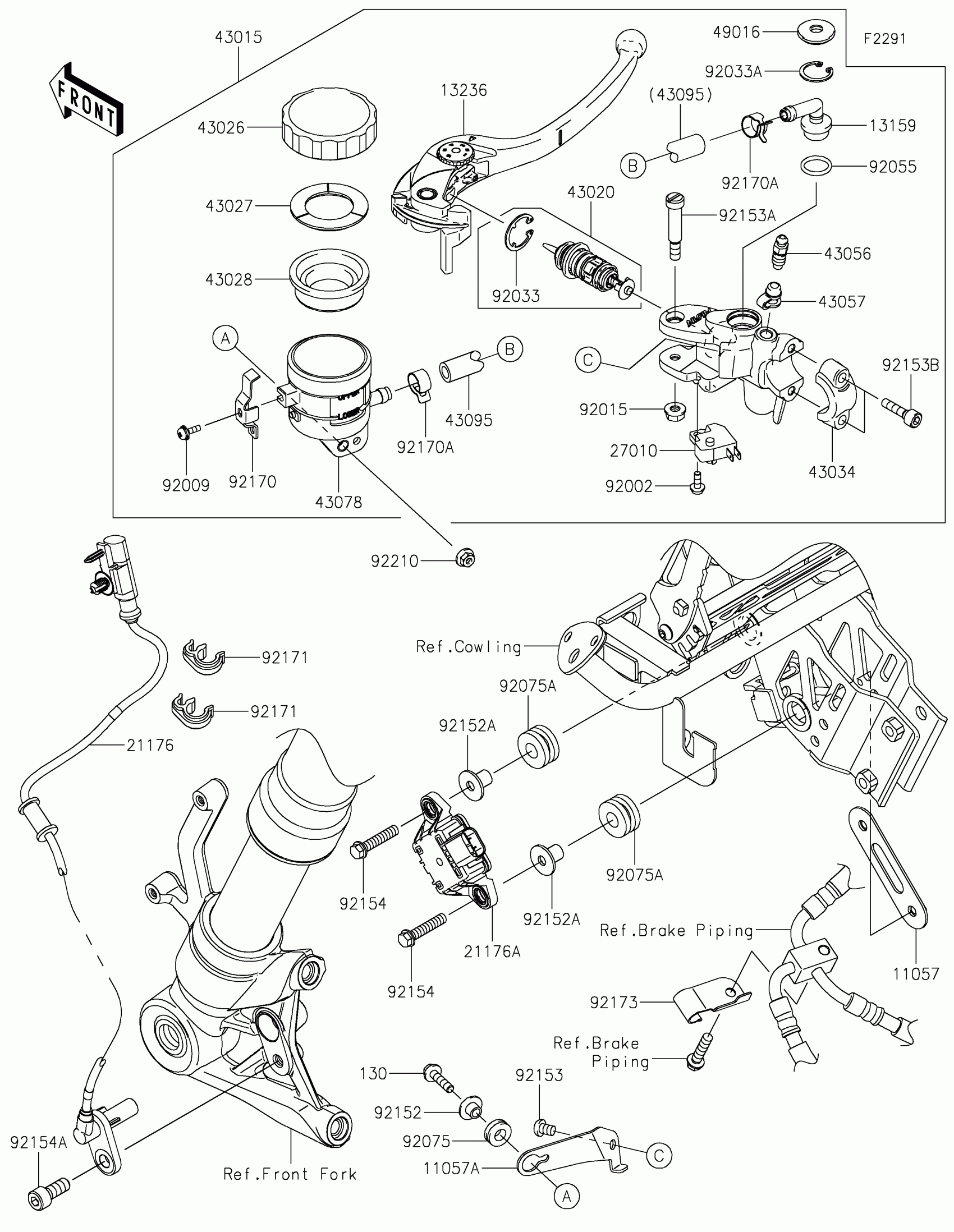

Find the part on the Front Master Cylinder diagram for your 2013 Kawasaki Ninja® 1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Ninja® 1000 ABS Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

1

$5.97

In stock

13159

CONNECTOR

13159-1061

1
Out of stock

13236

LEVER-COMP,FRONT BRAKE

13236-0103

1
Out of stock

21176

SENSOR,WHEEL SPEED,FR

21176-0706

1
Out of stock

27010

SWITCH,BRAKE

27010-0025

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0141

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-0010

1
Out of stock

43026

CAP-BRAKE

43026-1051

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1051

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0056

1
Out of stock

43056

BREATHER-BRAKE

43056-1056

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43078

RESERVOIR

43078-1099

1
Out of stock

43095

HOSE-BRAKE,FR MASTER CYLINDER

43095-0366

1
Out of stock

49016

COVER-SEAL

49016-1147

1
Out of stock

92002

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92009

SCREW

92009-1570

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1
Out of stock

92033

RING-SNAP

92033-0034

1
Out of stock

92033A

RING-SNAP,20.5MM

92033-1186

1
Out of stock

92055

RING-O,14.8X2.4

92055-0741

1
Out of stock

92075

DAMPER

92075-161

1
Out of stock

92152

COLLAR

92152-0017

1
Out of stock

92153

BOLT,6X8

92153-0578

1
Out of stock

92153A

BOLT,LEVER

92153-0868

1
Out of stock

92153B

BOLT,SOCKET,6X22

92153-1518

1
Out of stock

92170

CLAMP

92170-1090

1

$13.69

In stock

92170A

CLAMP,HOSE

92170-1091

1

$3.97

In stock

92171

CLAMP,BRAKE HOSE

92171-1819

1
Out of stock

92173

CLAMP

92173-0086

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

130

BOLT-FLANGED,5X20

130BB0520

1

$1.69

In stock

132

1

$1.12

In stock
