2013 Kawasaki Ninja® 1000 ABS Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2013 Kawasaki Ninja® 1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

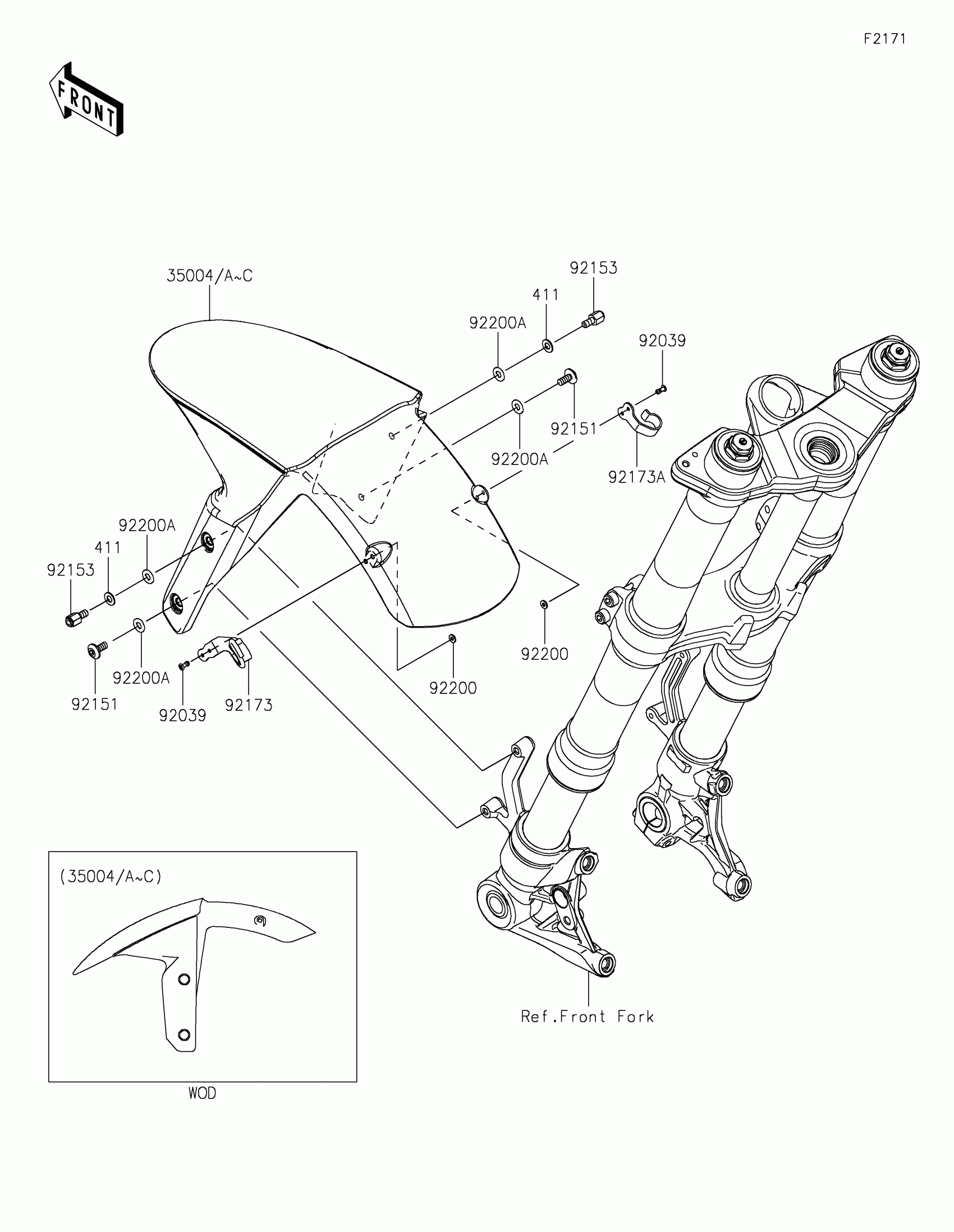

2013 Kawasaki Ninja® 1000 ABS Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,C.L.GREEN

35004-0118-17P

1
Out of stock

35004A

FENDER-FRONT,M.S.BLACK

35004-0118-660

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92153

BOLT,6MM

92153-0335

1
Out of stock

92200

WASHER,6.5X14X1

92200-1388

1
Out of stock

411

WASHER-PLAIN,6MM

411AB0600

1
Out of stock
