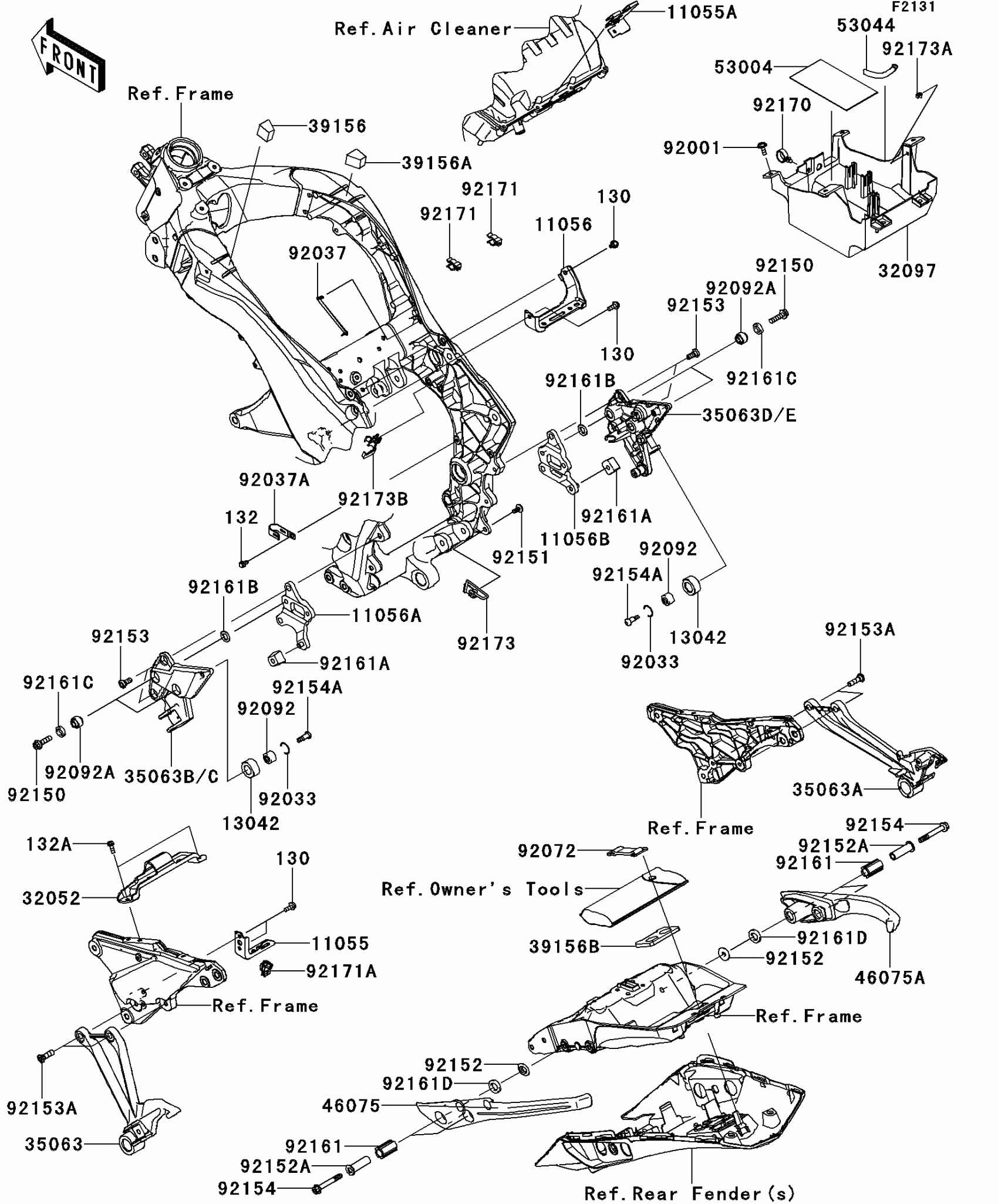

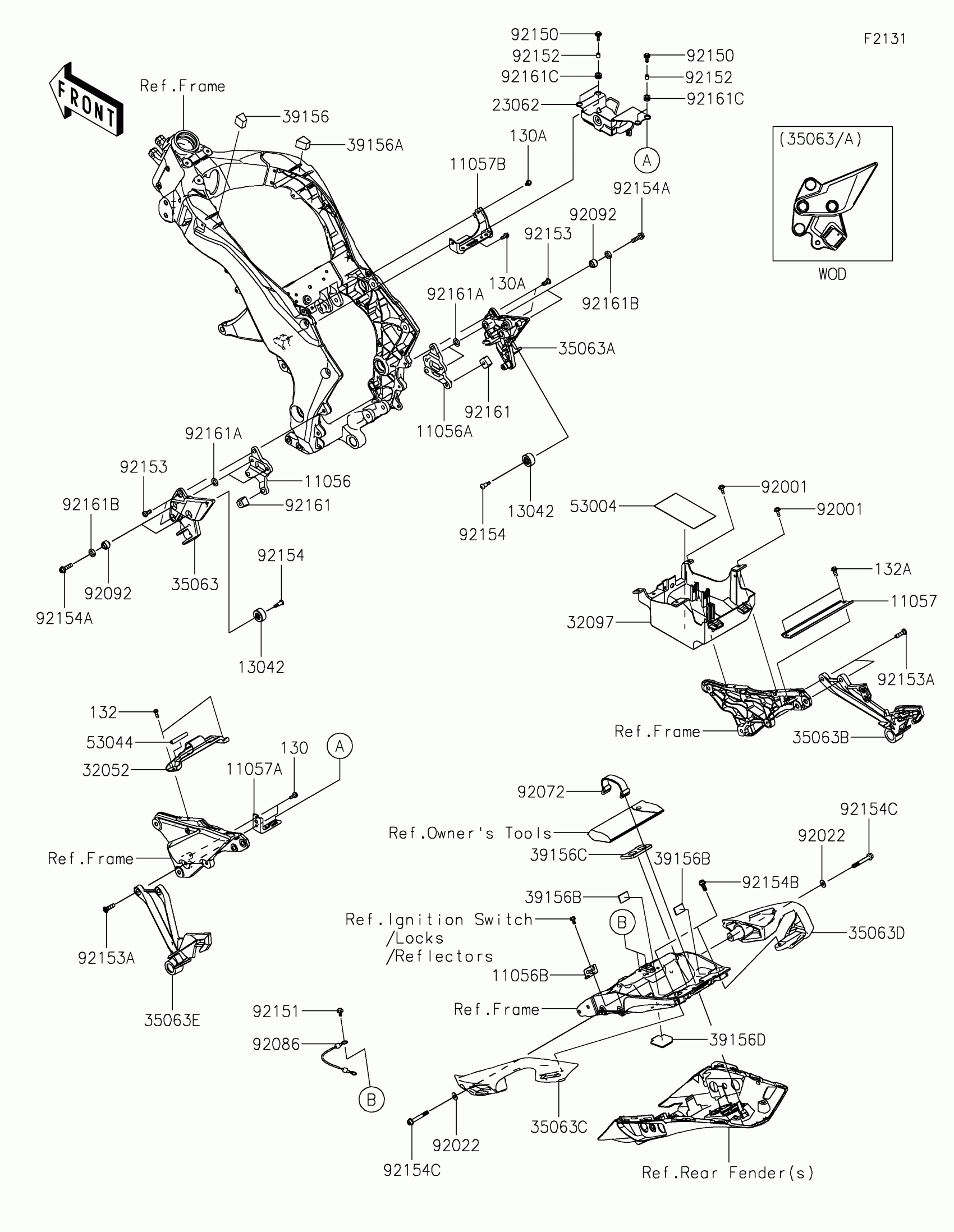

Kawasaki NINJA® 1000 ABS Frame Fittings Diagram

#

Description
Price

11055

BRACKET,REGULATOR

11055-1951

$8.19

11055A

BRACKET

11055-1989

$9.71

11056

BRACKET,REGULATOR

11056-0169

$23.63

11056A

BRACKET,FR,LH

11056-0358

$45.95

11056B

BRACKET,FR,RH

11056-0359

$39.99

13042

WEIGHT

13042-0709

$17.73

32052

BRACKET-TANK

32052-0155

$29.42

32097

CASE-BATTERY

32097-0555

$123.80

35063

STAY,RR,LH,F.S.BLACK

35063-0659-18R

$120.05

35063A

STAY,RR,RH,F.S.BLACK

35063-0660-18R

$120.05

35063B

STAY,FR,LH,F.S.BLACK

35063-0726-18R

$126.91

35063C

STAY,FR,LH,F.M.GRAY

35063-0726-26M

$132.96

35063D

STAY,FR,RH,F.S.BLACK

35063-0828-18R

$146.70

35063E

STAY,FR,RH,F.M.GRAY

35063-0828-26M

Unavailable

39156

PAD,LH

39156-0660

$9.34

39156A

PAD,RH

39156-0661

$9.34

39156B

PAD,TOOL BOTTOM

39156-0752

$3.64

46075

GRIP,TANDEM,LH

46075-0097

$111.67

46075A

GRIP,TANDEM,RH

46075-0098

$111.67

53004

MAT,BATTERY

53004-0560

$8.85

53044

TRIM

53044-0018

$4.14

92001

BOLT,6X18

92001-1342

Unavailable

92033

RING-SNAP,OD=22.2

92033-1102-SP

$2.97

92037

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92037A

CLAMP,CABLE,STEEL SHEET

92037-2014

$1.69

92072

BAND,L=90

92072-045

$14.14

92092

BUSHING-RUBBER

92092-0554

$21.34

92092A

BUSHING-RUBBER,8.4X20X18

92092-1018-SP

$12.11

92150

BOLT,SOCKET,8X30

92150-1156

$4.97

92151

BOLT,SOCKET,6X14

92151-1654

$1.24

92152

COLLAR,8X25X4.6

92152-0980

$15.29

92152A

COLLAR,9.2X13.8X38.5

92152-1629

$5.59

92153

BOLT,SOCKET,8X20

92153-1621

$1.57

92153A

BOLT,SOCKET,8X30

92153-1624

$2.98

92154

BOLT,SOCKET,8X60

92154-0259

$7.54

92154A

BOLT,SOCKET,6MM

92154-0800

$4.71

92161

DAMPER

92161-0663

$2.84

92161A

DAMPER,STEP STAY

92161-0942

$4.46

92161B

DAMPER,12.5X21X2

92161-0943

$1.89

92161C

DAMPER,12.5X20X4

92161-0944

$2.11

92161D

DAMPER,14.5X25X3.5

92161-0959

$3.97

92170

CLAMP

92170-1067

$5.69

92171

CLAMP

92171-0974

$3.51

92171A

CLAMP,EDGE CLIP

92171-1722

$7.90

92173

CLAMP

92173-0151

$12.02

92173A

CLAMP

92173-0215

$1.73

92173B

CLAMP,CLIP

92173-0799

$14.14

130

BOLT-FLANGED,6X16

130BA0616

$0.97

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.27

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16
