1981 Yamaha MX80 (MX80H) OIL Pump Diagram

← All diagrams

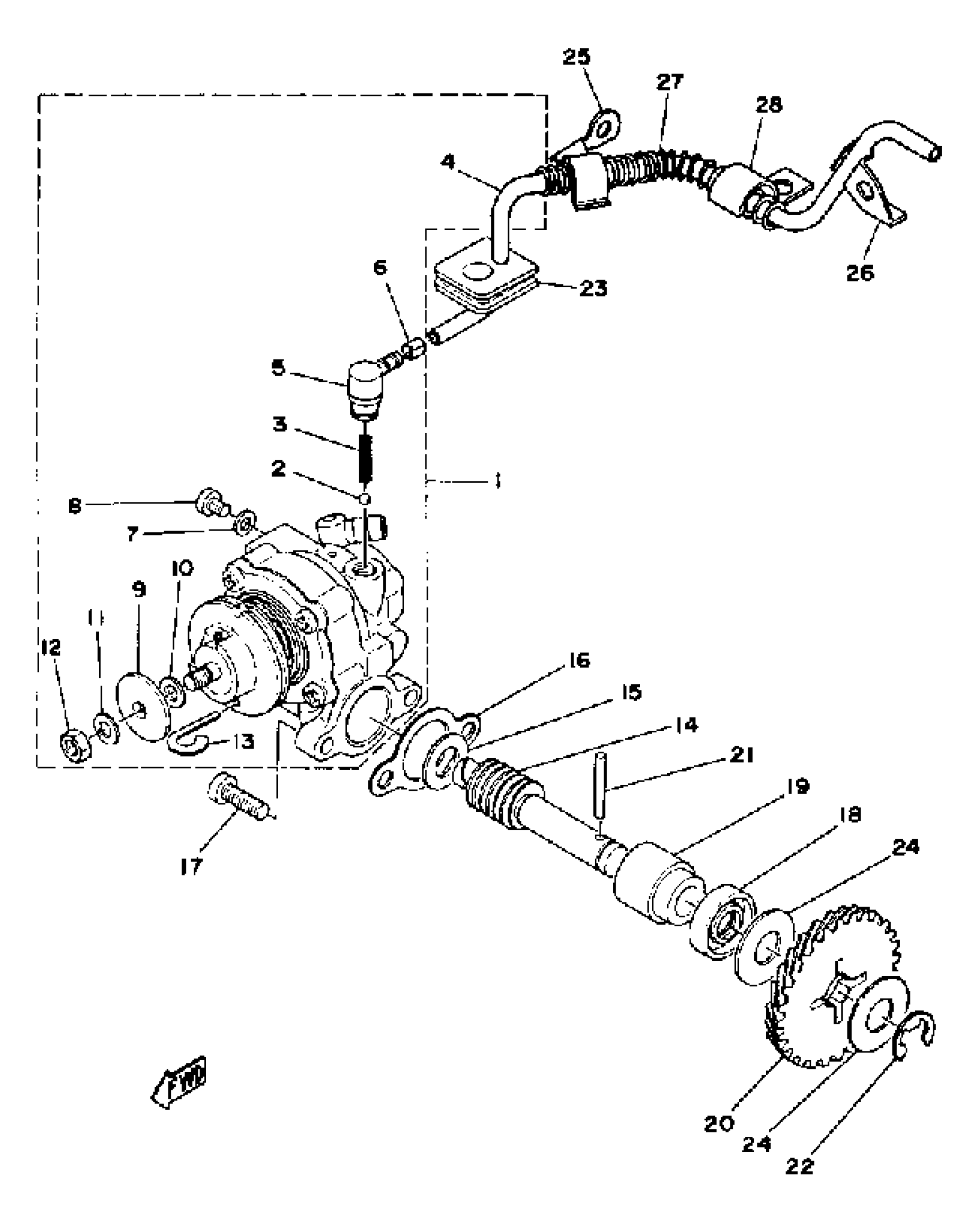

Find the part on the OIL Pump diagram for your 1981 Yamaha MX80 (MX80H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha MX80 (MX80H) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

(1K8-13101-01-00)

1
Out of stock

2

BALL

93505-32002-00

1

$2.22

In stock

3

SPRING, CHECK BALL (451)

90501-02217-00

1

$5.62

In stock

4

HOSE (L200)

90445-05N13-00

1

$6.17

In stock

5

NOZZLE

353-13552-01-00

1
Out of stock

6

CLIP (214-13164-00)

90468-02033-00

1
Out of stock

7

GASKET 137131870000

90430-04004-00

1
Out of stock

8

SCREW, BIND

98980-04008-00

1

$3.26

In stock

9

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

10

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

10

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

10

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

13

COVER, ADJUST PULLEY

367-13146-01-00

1

$5.66

In stock

14

SHAFT, WORM

257-13175-00-00

1
Out of stock

15

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

16

GASKET, PUMP CASE

126-13116-01-00

—
Out of stock

17

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

18

OIL SEAL (J10)

93101-10090-00

—

$6.17

In stock

19

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

20

GEAR, PUMP DRIVE

353-13178-00-00

1
Out of stock

21

PIN,DOWEL (137)

93603-22028-00

—
Out of stock

22

CIRCLIP(2R6)

99001-08600-00

—
Out of stock

23

HOLDER, OIL PIPE

248-13174-00-00

—
Out of stock

24

WASHER, PLATE(52H)

90201-105J4-00

—

$6.88

In stock

25

HOLDER, OIL PIPE

367-13174-00-00

—

$9.43

In stock

26

HOLDER

(367-15378-00-00)

1
Out of stock

27

SPRING, COMPRESSION

90501-06025-00

1
Out of stock

28

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock
