1981 Yamaha MX80 (MX80H) Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 1981 Yamaha MX80 (MX80H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

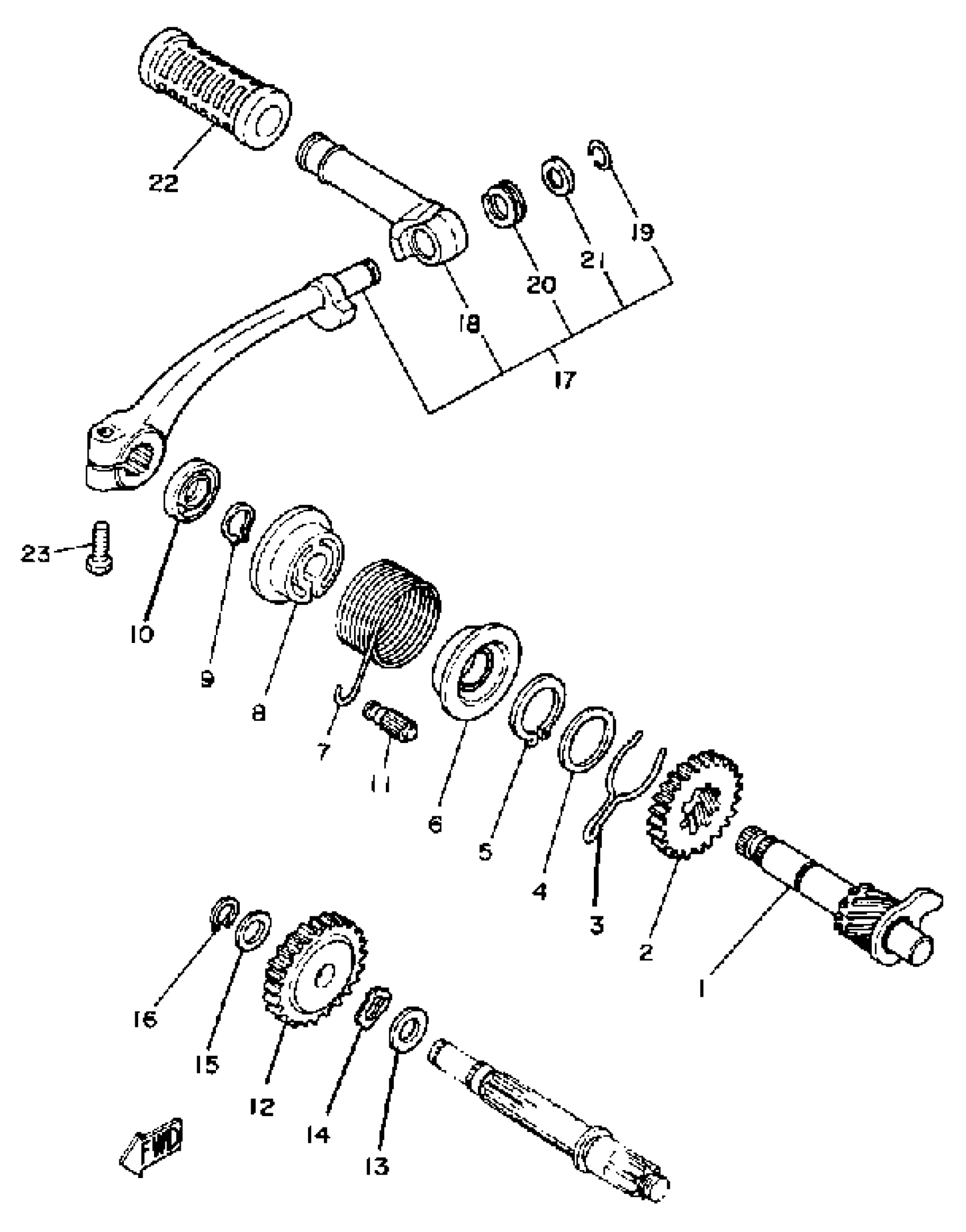

1981 Yamaha MX80 (MX80H) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSEMBLY

353-15660-01-00

1
Out of stock

2

GEAR, KICK (24T)

353-15641-00-00

1
Out of stock

3

CLIP

90468-26038-00

1
Out of stock

4

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

5

CIRCLIP (256)

93410-25017-00

1
Out of stock

6

GUIDE, KICK SPRING

132-15664-01-00

1
Out of stock

7

SPRING TORSION 304156650000

90508-26136-00

—
Out of stock

8

COVER, KICK SPRING

132-15676-01-00

—

$9.02

In stock

9

CIRCLIP(1AR)

99009-15400-00

1

$5.10

In stock

10

OIL SEAL (15X26X6-102)

93109-15001-00

1

$7.42

In stock

11

STOPPER, KICK SPRING

248-15668-00-00

1
Out of stock

12

GEAR, KICK IDLE

353-15651-00-00

1
Out of stock

13

WASHER, PLATE

90201-13013-00

1

$6.29

In stock

14

WASHER WAVE 137156430000

90206-15021-00

—

$6.86

In stock

15

WASHER (692)

90201-12M34-00

1

$3.47

In stock

16

CIRCLIP(10Y)

99009-12400-00

—

$3.08

In stock

17

KICK CRANK ASSEMBLY

3AY-15620-00-00

1
Out of stock

18

LEVER, KICK

(214-15612-09-00)

1
Out of stock

19

. CIRCLIP, OUTER

93440-10028-00

1
Out of stock

20

SPRING, COMPRESSION (5L1)

90504-18031-00

—

$7.66

In stock

21

WASHER,SPEC'L SHAPE

90209-10210-00

1
Out of stock

22

COVER, KICK LEVER

156-15618-01-00

—

$6.43

In stock

23

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock
