1981 Yamaha MX80 (MX80H) Crankshaft - Piston Diagram

← All diagrams

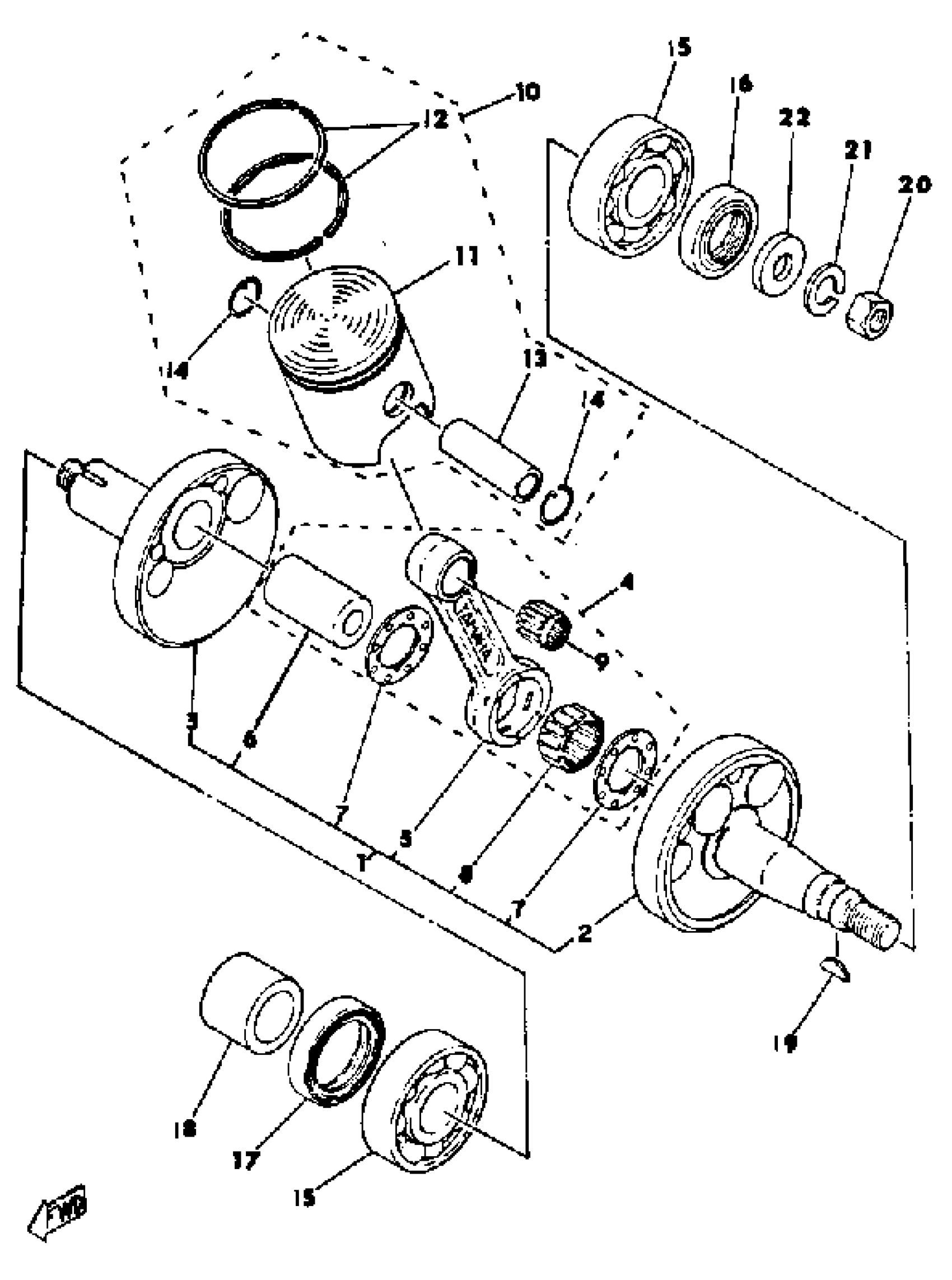

Find the part on the Crankshaft - Piston diagram for your 1981 Yamaha MX80 (MX80H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha MX80 (MX80H) Crankshaft - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

1K9-11400-00-00

1
Out of stock

2

. CRANK 1

598-11412-00-00

1
Out of stock

3

CRANK 2

(598-11422-00-00)

1
Out of stock

4

. CONNECTING ROD ASSEMBLY

538-11650-01-00

1
Out of stock

5

ROD, CONNECTING

3R1-11651-01-00

1
Out of stock

6

PIN, CRANK 1

257-11681-10-00

1
Out of stock

7

WASHER 132116850000

90209-18112-00

1
Out of stock

8

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

1
Out of stock

9

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

1

$30.25

In stock

10

PISTON ASSY (STD)

367-11630-51-00

—

$93.62

In stock

11

PISTON (STD) 0.96MM

367-11631-11-96

—

$124.97

In stock

12

PISTON RING SET (STD)

367-11610-00-00

1

$55.88

In stock

13

PIN, PISTON

527-11633-00-00

1
Out of stock

14

CIRCLIP 132116340000

93450-13022-00

1
Out of stock

15

BEARING

(93306-20410-00)

1
Out of stock

16

OIL SEAL (20X35X7-136)

93102-20009-00

—

$9.10

In stock

17

OIL SEAL (28X40X8-132)

93103-28011-00

—

$12.05

In stock

17

UNAVAILABLE IN PRICE BOOK

93103-29011-00

1
Out of stock

18

COLLAR (4Y2)

90387-205E9-00

—
Out of stock

19

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock

20

NUT, HEXAGON 98801-12200

90170-12175-00

—

$7.69

In stock

21

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

22

PISTON RINGSET 1ST

367-11610-10-00

1
Out of stock

22

PISTON RING SET (2NDO/S)

367-11610-20-00

—

$51.49

In stock

22

PISTON RINGSET 3RD

367-11610-30-00

1
Out of stock

22

PISTON RINGSET 4TH

367-11610-40-00

1
Out of stock

22

PISTON KIT 1ST

367-11630-61-00

1
Out of stock

22

PISTON KIT 2ND

367-11630-71-00

1
Out of stock

22

PISTON KIT 3RD O/S

367-11630-81-00

1
Out of stock

22

PISTON KIT 4TH

(367-11630-91-00)

1
Out of stock

22

PISTON (1ST O/S)

367-11635-11-00

—

$128.06

In stock

22

PISTON (STD) 2ND O/S

367-11636-11-00

—

$124.40

In stock

22

PISTON 3 O/S 0.75

367-11637-11-00

1
Out of stock

22

PISTON 4 O/S 1.00

367-11638-11-00

1
Out of stock

22

WASHER (492)

90201-12535-00

—
Out of stock
