1981 Yamaha MX80 (MX80H) Clutch Diagram

← All diagrams

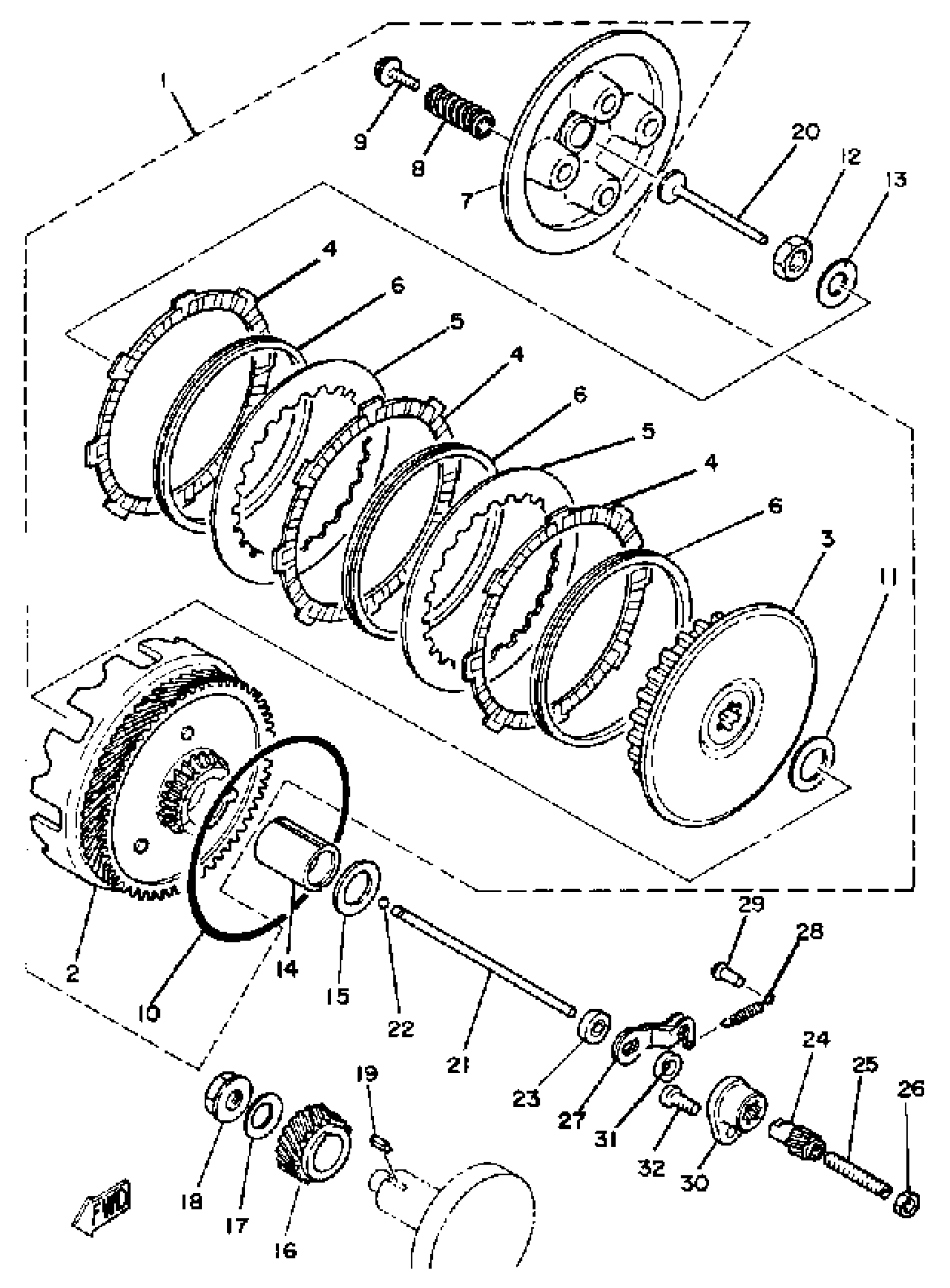

Find the part on the Clutch diagram for your 1981 Yamaha MX80 (MX80H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha MX80 (MX80H) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH ASSEMBLY

(2A3-16301-00-00)

1
Out of stock

2

. PRIMARY DRIVEN GEAR COMP (68T) (2A3-16150-00)

1T0-16150-01-00

1
Out of stock

3

. BOSS, CLUTCH

353-16371-00-00

1
Out of stock

4

PLATE, FRICTION

4EU-16321-00-00

1
Out of stock

5

PLATE, CLUTCH 1

257-16324-10-00

—
Out of stock

6

RING, CUSHION

131-16367-00-00

—
Out of stock

7

. PLATE, PRESSURE 1

353-16351-00-00

1
Out of stock

8

1

$6.17

In stock

9

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

1
Out of stock

10

O-RING (353)

93210-98202-00

1
Out of stock

11

PLATE, THRUST

122-16164-00-00

1

$7.08

In stock

12

NUT, HEXAGON 1371637700

90170-12060-00

1

$8.29

In stock

13

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

14

SPACER

90560-17123-00

1
Out of stock

15

PLATE, THRUST

122-16164-00-00

1

$7.08

In stock

16

GEAR, PRI DRIVE

353-16111-01-00

1
Out of stock

17

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

18

NUT(1EE)

90179-12659-00

—

$5.37

In stock

19

KEY, STRAIGHT 3531154600

90282-05005-00

—
Out of stock

20

ROD,PUSH (1)

137-16356-00-00

—

$28.05

In stock

21

ROD, PUSH (2)

353-16357-00-00

—
Out of stock

22

BALL

93503-16003-00

—

$2.14

In stock

23

OIL SEAL(1JY)

93102-04382-00

—
Out of stock

24

SCREW, PUSH

241-16341-01-00

—
Out of stock

25

BOLT SET 241163430000

90113-06013-00

—
Out of stock

26

NUT(650)

95380-06700-00

—

$6.17

In stock

27

LEVER, PUSH

451-16342-00-00

1
Out of stock

28

SPRING TENSION 257163450000

90506-07066-00

—
Out of stock

29

HOOK, SPRING

132-16346-00-00

—
Out of stock

30

HOUSING, PUSH SCREW

353-16396-00-00

—
Out of stock

31

SEAL 0IL (2V7)

93104-10085-00

—
Out of stock

32

SCREW, PAN

98507-06014-00

—

$6.18

In stock
