1981 Yamaha MX80 (MX80H) Shift Shaft - Pedal Diagram

← All diagrams

Find the part on the Shift Shaft - Pedal diagram for your 1981 Yamaha MX80 (MX80H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

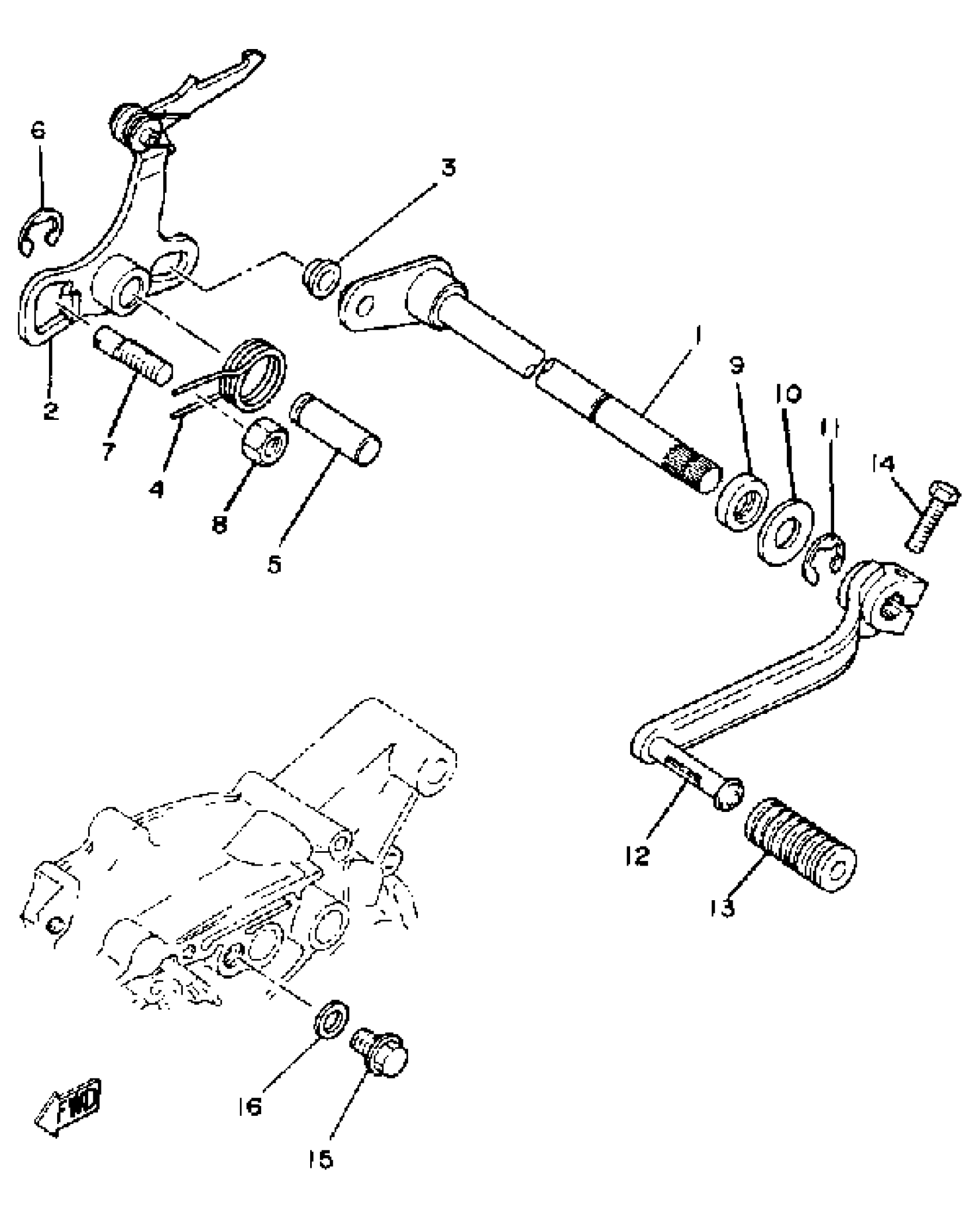

1981 Yamaha MX80 (MX80H) Shift Shaft - Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSEMBLY

353-18101-03-00

1
Out of stock

2

SHIFT LEVER ASSEMBLY

353-18120-00-00

1
Out of stock

3

ROLLER, SHIFT LEVER

214-18178-00-00

1
Out of stock

4

—

$3.54

In stock

5

SHAFT

367-18197-00-00

1
Out of stock

6

CIRCLIP

99006-10600-00

1

$6.91

In stock

7

SCREW, ADJUSTING (367)

90149-08094-00

1

$4.91

In stock

8

NUT(6L2)

95333-08600-00

1

$3.20

In stock

9

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

10

WASHER, PLATE (353)

90201-12575-00

1
Out of stock

11

CIRCLIP

99006-10600-00

1

$6.91

In stock

12

PEDAL, SHIFT

367-18111-00-00

1

$35.38

In stock

13

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

14

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

15

1

$8.44

In stock

16

GASKET (5R6)

90430-10171-00

—

$3.17

In stock
← Shift CAM - Fork Transmission →

More Drive & Transmission diagrams
