1980 Yamaha MX175 (MX175G) OIL Pump Diagram

← All diagrams

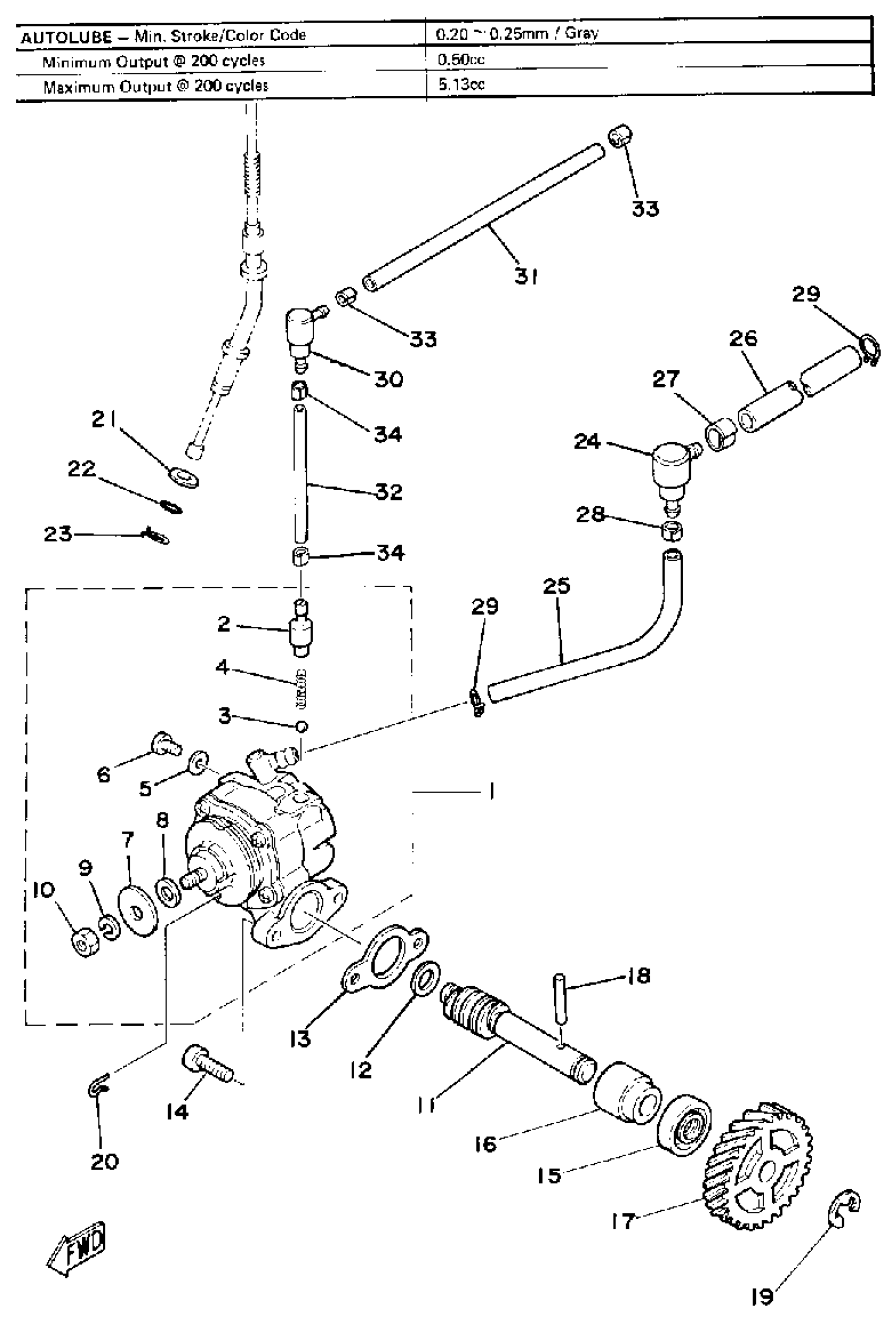

Find the part on the OIL Pump diagram for your 1980 Yamaha MX175 (MX175G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha MX175 (MX175G) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

2A6-13101-00-00

1
Out of stock

2

NOZZLE

402-13552-00-00

—

$10.32

In stock

3

BALL

93505-32002-00

1

$2.22

In stock

4

SPRING (278-13169-00)

90501-02018-00

1

$7.69

In stock

5

GASKET 137131870000

90430-04004-00

1
Out of stock

6

SCREW, BIND

98980-04008-00

1

$3.26

In stock

7

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

8

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

8

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

8

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

11

SHAFT, WORM

275-13175-02-00

1

$22.03

In stock

12

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

13

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

14

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

15

OIL SEAL (10X22X7-137)

93101-10002-00

—

$6.68

In stock

16

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

17

GEAR, DRIVE

2A6-13178-00-00

—

$12.75

In stock

18

PIN,DOWEL (137)

93603-22028-00

—
Out of stock

19

CIRCLIP(2R6)

99001-08600-00

—
Out of stock

20

—

$6.11

In stock

21

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

22

O-RING (214)

93210-07100-00

—

$5.89

In stock

23

CIRCLIP (2A6)

90468-08086-00

—

$5.62

In stock

24

CONNECTOR, SCTN PPE

2A6-13115-01-00

1
Out of stock

25

HOSE (L200)

90445-07176-00

—

$7.11

In stock

26

HOSE (L420)

90445-092K1-00

—

$10.63

In stock

27

CLIP (2A6)

90468-02078-00

—

$5.80

In stock

28

CLIP (2A6)

90468-02025-00

—

$7.02

In stock

29

CLIP 101235600

90467-08003-00

—

$6.13

In stock

30

CONCT, DELIVERY PPE

2A6-13164-01-00

1
Out of stock

31

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

32

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

33

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

34

CLIP (214-13164-00)

90468-02033-00

—
Out of stock
