1980 Yamaha MX175 (MX175G) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1980 Yamaha MX175 (MX175G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

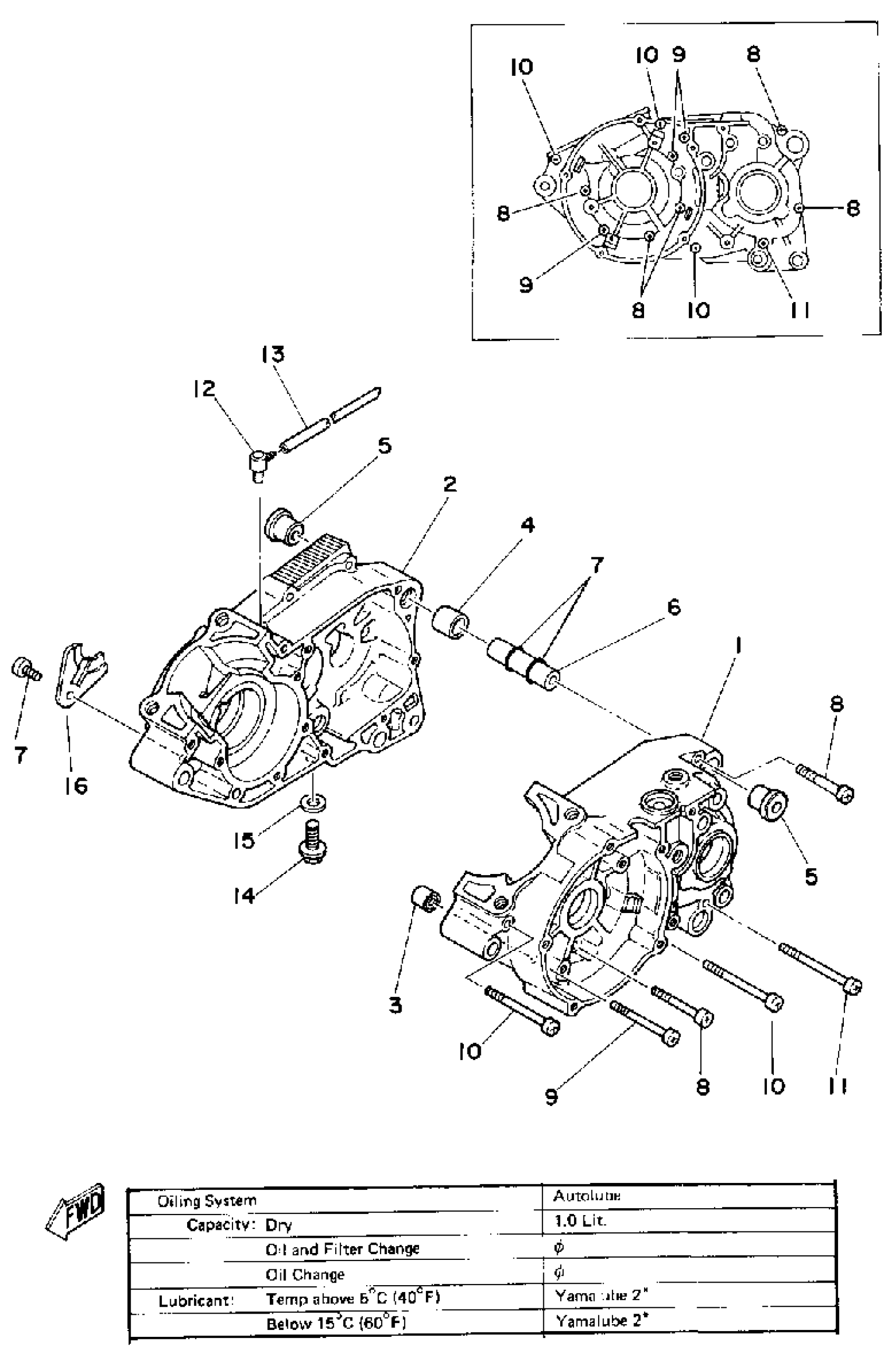

1980 Yamaha MX175 (MX175G) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

3M2-15111-00-00

1
Out of stock

2

CRANKCASE 2

2A6-15121-01-00

1
Out of stock

3

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

4

PIN, DOWEL

99530-20020-00

1
Out of stock

5

DAMPER

90388-08003-00

1

$16.29

In stock

6

SPACER, ENGINE MOUNT

401-15317-00-00

1

$12.20

In stock

7

O-RING (P95)

93210-11073-00

1
Out of stock

8

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

9

SCREW, BIND (JH1)

98580-06560-00

—

$6.86

In stock

10

SCREW PAN HEAD

98580-06570-00

1

$17.32

In stock

11

SCREW PAN HEAD

98580-06575-00

1

$10.95

In stock

12

BREATHER

5UG-15371-00-00

1

$33.79

In stock

13

HOSE (L1050)

90445-072G8-00

1

$23.46

In stock

14

1

$6.71

In stock

15

GASKET (3JD1)

90430-12207-00

1

$6.77

In stock

16

HOLDER (R.H)

304-15128-00-00

—

$5.80

In stock

17

SCREW, PAN

98507-08010-00

—
Out of stock
Crankcase Cover →
