1980 Yamaha MX175 (MX175G) Cylinder Diagram

← All diagrams

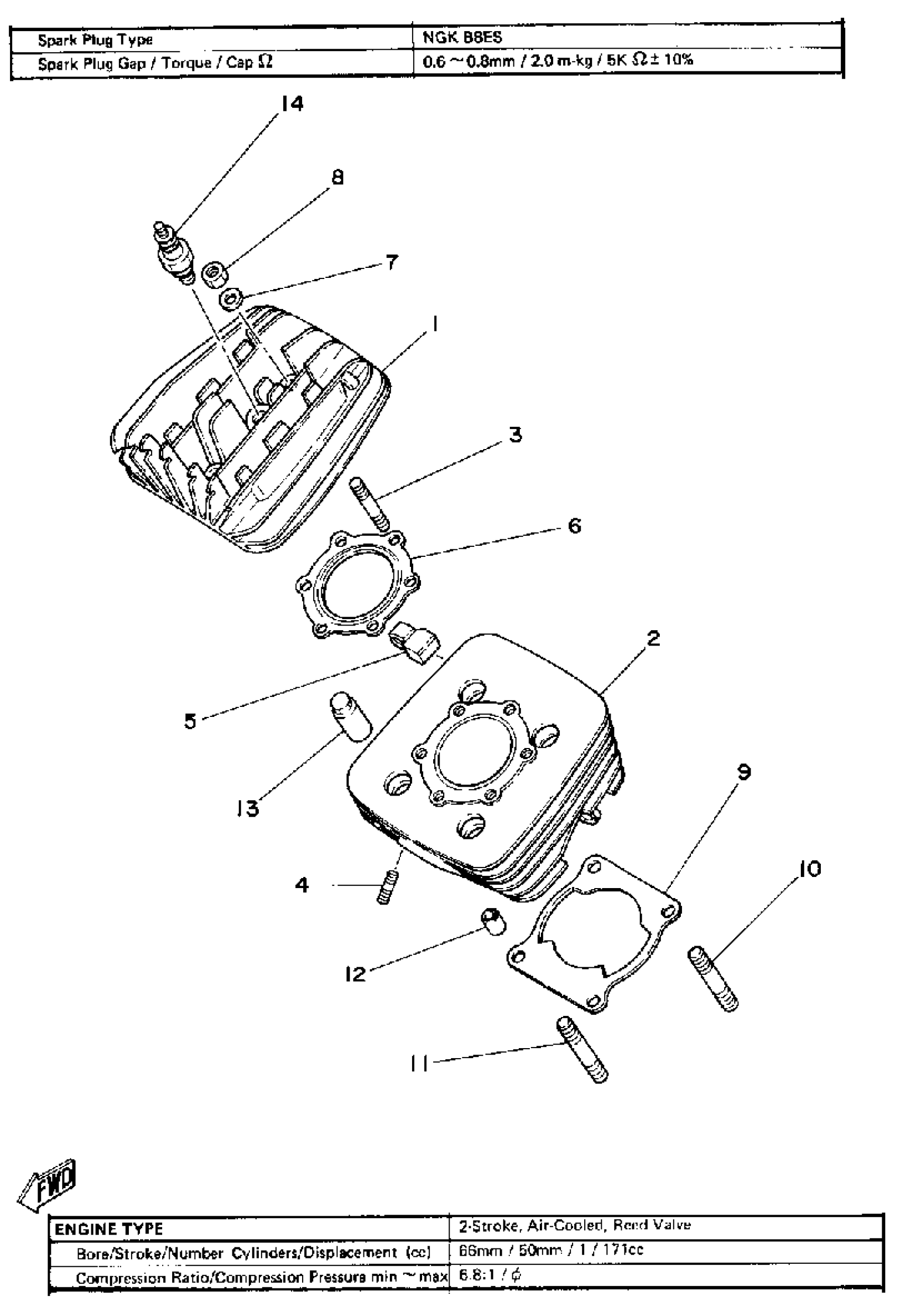

Find the part on the Cylinder diagram for your 1980 Yamaha MX175 (MX175G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha MX175 (MX175G) Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

2A7-11111-00-00

1
Out of stock

2

CYLINDER 1

2A7-11311-00-00

1
Out of stock

3

BOLT STUD 363111790000

90116-08104-00

1

$14.38

In stock

4

BOLT STUD 306111790000

90116-06016-00

1

$3.49

In stock

5

ABSORBER 5

2A6-11129-00-00

1
Out of stock

6

GASKET, CYLINDER HEAD

1W2-11181-00-00

1

$15.04

In stock

7

WASHER, PLATE (397)

90201-08100-00

1

$6.17

In stock

8

NUT(6L2)

95333-08600-00

1

$3.20

In stock

9

GASKET, CYLINDER

18G-11351-02-00

1

$6.25

In stock

10

BOLT, STUD

95617-10630-00

1
Out of stock

11

BOLT,STUD

95617-10640-00

1
Out of stock

12

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

13

NUT

90179-10021-00

1

$21.54

In stock

14

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

1
Out of stock
