1980 Yamaha MX175 (MX175G) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1980 Yamaha MX175 (MX175G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

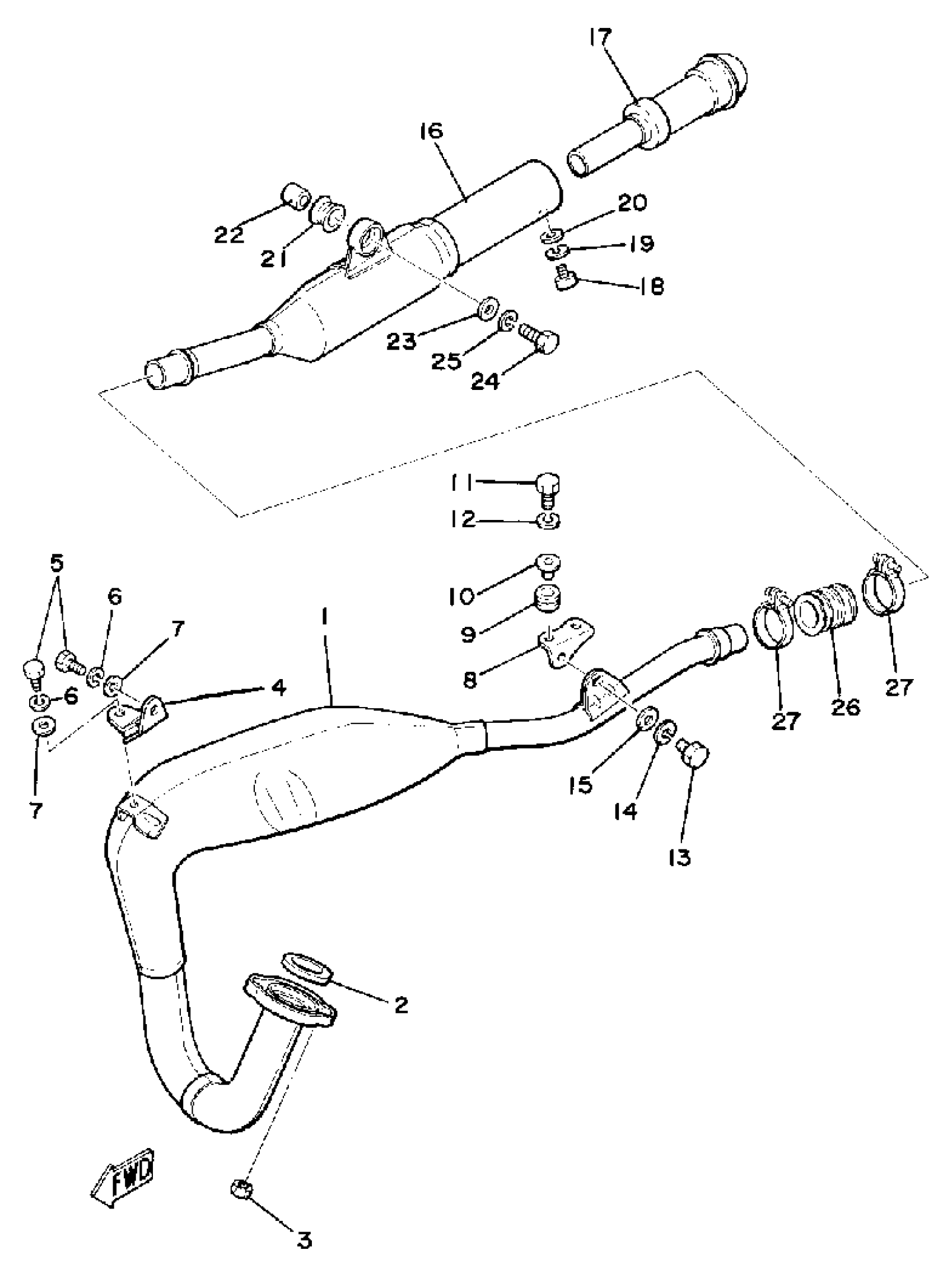

1980 Yamaha MX175 (MX175G) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L (2A6-14610-00)

3J0-14610-00-00

1
Out of stock

2

GASKET, EXHAUST PIPE

3PA-14613-10-00

1
Out of stock

3

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

4

STAY, MUFFLER 2

2A6-14772-01-00

1
Out of stock

5

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

8

STAY, MUFFLER 1

5V7-14771-00-00

1
Out of stock

9

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

10

COLLAR

90387-06158-00

1

$6.17

In stock

11

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

16

SILENCER, EXHAUST

2A6-14753-00-00

1
Out of stock

17

PIPE, OUTLET

1M1-14752-01-00

1
Out of stock

18

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

21

DAMPER

565-14747-00-00

—
Out of stock

22

COLLAR (437)

90387-08258-00

—
Out of stock

23

WASHER, PLATE(8AT)

90201-081R9-00

—
Out of stock

24

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

26

GASKET, MUFFLER JOINT

1W2-14714-00-00

—
Out of stock

27

CLAMP, HOSE

90460-37130-00

1
Out of stock
