1974 Yamaha MX175 (MX175A) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1974 Yamaha MX175 (MX175A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

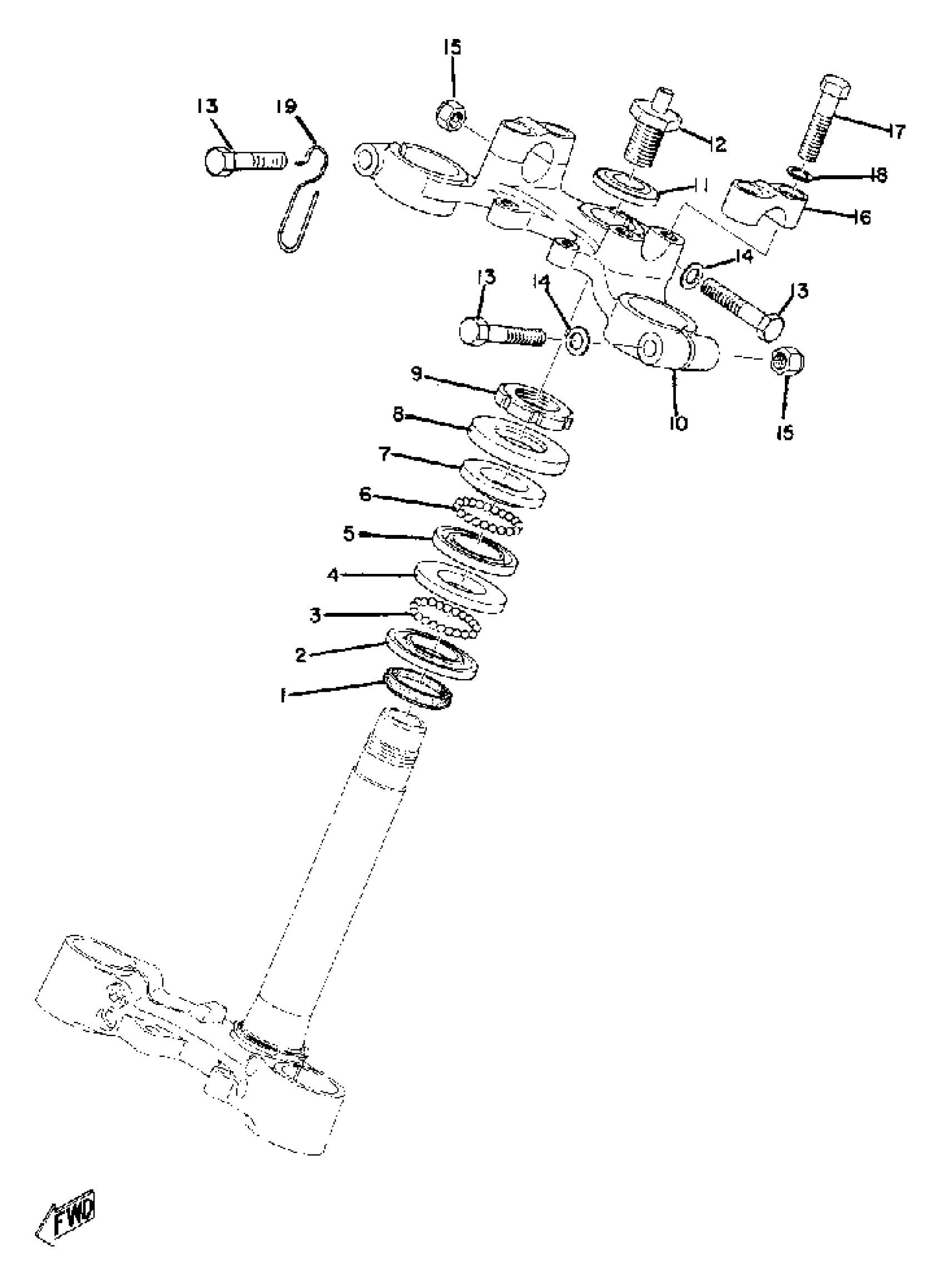

1974 Yamaha MX175 (MX175A) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAL, DUST

164-23462-00-00

1

$6.42

In stock

2

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

3

BALL

93501-04011-00

1
Out of stock

4

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

5

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

6

BALL

93503-16003-00

1

$2.14

In stock

7

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

8

COVER, BALL RACE

122-23416-00-00

1

$6.40

In stock

9

NUT

90179-25004-00

1

$20.78

In stock

10

CROWN, HANDLE

(401-23435-00-98)

1
Out of stock

11

WASHER, SPECIAL SHAPE

90209-14022-00

1
Out of stock

12

BOLT (322-23451-00)

90109-14235-00

1
Out of stock

13

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

14

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

15

NUT, U

95617-08100-00

1

$6.78

In stock

16

HOLDER, HANDLE UPPER

401-23441-00-98

1
Out of stock

17

BOLT

97013-08035-00

—

$4.80

In stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

19

HOLDER, CABLE 2

(434-23319-00-00)

1
Out of stock
