1974 Yamaha MX175 (MX175A) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1974 Yamaha MX175 (MX175A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

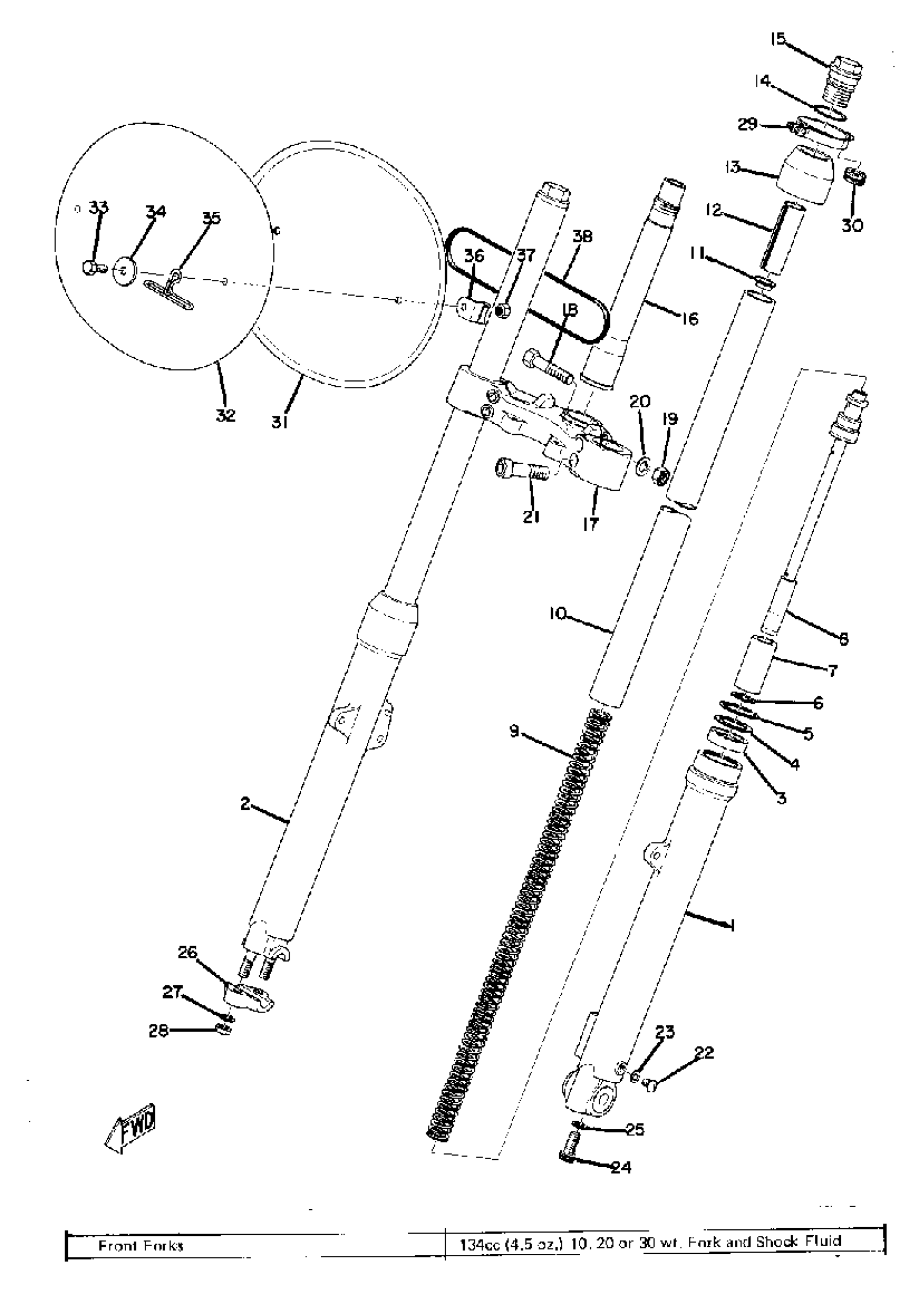

1974 Yamaha MX175 (MX175A) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TUBE, OUTER 1

(315-23126-50-00)

1
Out of stock

1

FRONT FORK ASSEMBLY

(401-23101-00-00)

1
Out of stock

2

TUBE, OUTER 2

(315-23136-50-00)

1
Out of stock

3

OIL SEAL

137-23145-01-00

1

$38.06

In stock

4

WASHER, OIL SEAL

(315-23146-50-00)

1
Out of stock

5

CLIP, OIL SEAL

(315-23156-50-00)

1
Out of stock

6

CIRCLIP

(535-23183-01-00)

1
Out of stock

7

PISTON, FRONT FORK

(401-23171-00-00)

1
Out of stock

8

CYLINDER, FRTFRK

(401-23170-00-00)

1
Out of stock

9

SPRING, FRONT FORK

(403-23141-00-00)

1
Out of stock

10

TUBE, INNER 1

(401-23124-00-00)

1
Out of stock

11

SEAT, SPRING UPPER

(248-23142-00-00)

1
Out of stock

12

SPACER

(401-23118-00-00)

1
Out of stock

13

SEAL, DUST

248-23144-00-00

1

$28.22

In stock

14

PACKING(O-RING)

146-23114-00-00

1
Out of stock

15

BOLT, CAP

(2K5-23111-00-00)

1
Out of stock

16

SHAFT, STEERING

(1E6-23341-00-00)

1
Out of stock

17

BRACKET, LOWER

(401-23345-00-33)

1
Out of stock

18

BOLT 2

(322-23356-00-00)

1
Out of stock

19

NUT

(322-23357-00-00)

1
Out of stock

20

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

21

BOLT 1

(322-23346-00-00)

1
Out of stock

22

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

23

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

24

BOLT,SOCKET

91314-08020-00

—

$6.17

In stock

25

GASKET

(214-23158-00-00)

1
Out of stock

26

. HOLDER, AXLE

315-23167-51-00

1
Out of stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

28

NUT(6L2)

95333-08600-00

—

$3.20

In stock

29

CLAMP, HOSE

(90460-50014-00)

1
Out of stock

30

GROMMET (1E5)

90480-13163-00

—

$6.33

In stock

31

PLATE, NUMBER

322-23485-00-00

1
Out of stock

32

EMBLEM

322-23395-00-00

1
Out of stock

33

SCREW, OVAL FLSTR (322-23396-00)

90146-06007-00

1
Out of stock

34

WASHER, PLATE

90201-06086-00

—
Out of stock

35

HOLDER, CABLE 2

(322-23319-00-00)

1
Out of stock

36

STAY, PLATE

(318-23487-00-00)

1
Out of stock

37

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

38

O-RING (802)

93210-99103-00

—
Out of stock
