1974 Yamaha MX175 (MX175A) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1974 Yamaha MX175 (MX175A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

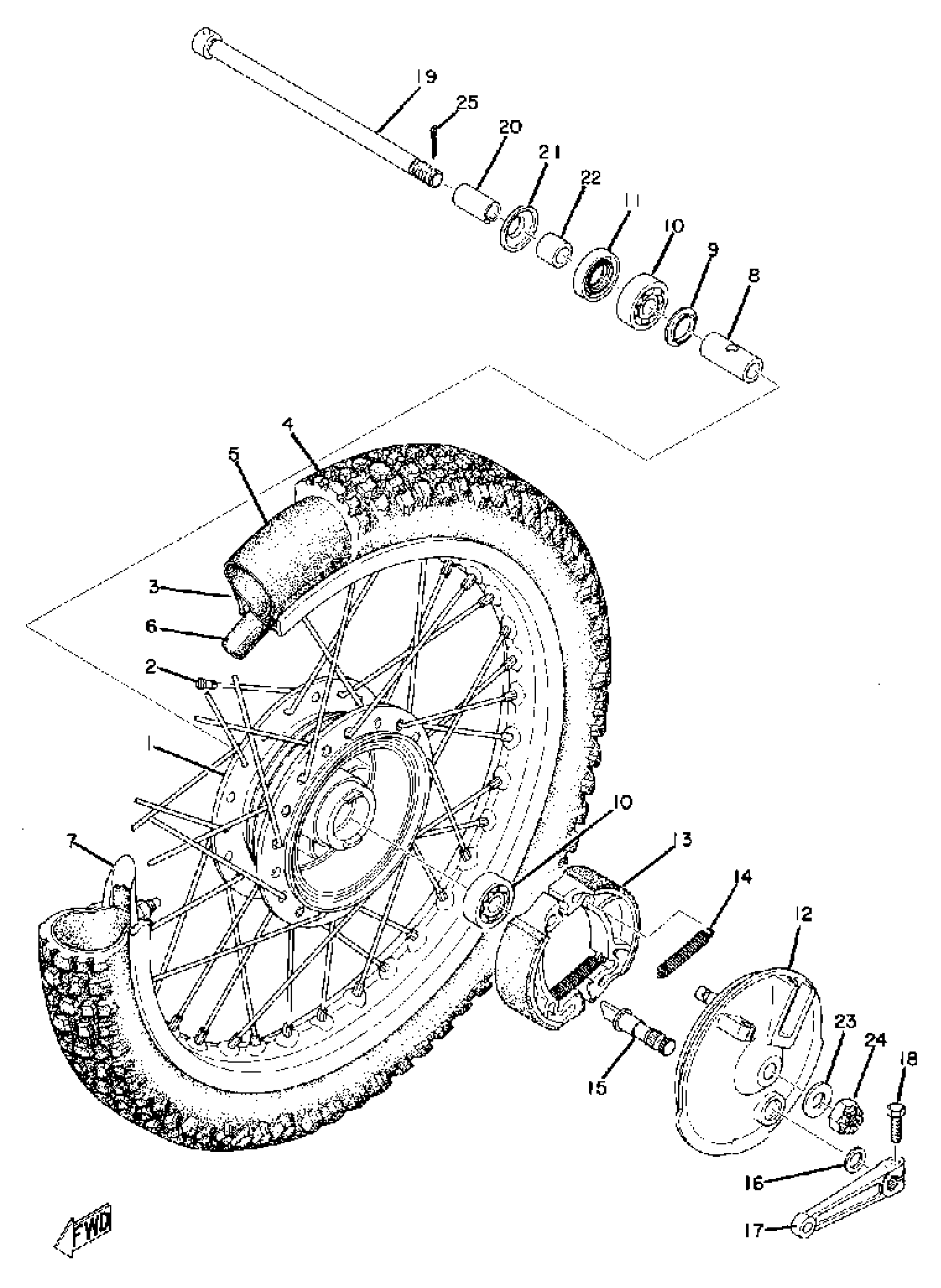

1974 Yamaha MX175 (MX175A) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(248-25111-00-35)

1
Out of stock

2

SPOKE SET, FRONT

345-25104-01-00

1
Out of stock

2

SPOKE SET, INNER 1

(345-25196-90-00)

1
Out of stock

2

SPOKE SET, OUTER 1

(345-25197-90-00)

1
Out of stock

3

RIM 1.60X21

94416-21265-00

1
Out of stock

4

275X21 BS M7

(94127-21216-00)

1
Out of stock

5

TUBE (2.75-21)(2YY)

94227-21293-00

1
Out of stock

6

BAND, RIM

(94327-21024-00)

1
Out of stock

7

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

8

SPACER

90560-12138-00

—

$12.83

In stock

9

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

10

BEARING

93306-30102-00

1
Out of stock

11

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

12

PLATE, BRAKE SHOE

(402-25121-00-00)

1
Out of stock

13

BRAKE SHOE SET-2 PCS

326-W2536-00-00

1
Out of stock

14

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

15

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

16

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

17

LEVER, CAMSHAFT 1 (401-25155-00)

401-25155-11-00

1
Out of stock

18

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

19

SHAFT, WHEEL

401-25181-01-00

—

$58.12

In stock

20

COLLAR

90387-12100-00

1
Out of stock

21

COVER, HUB DUST

2K5-25118-00-00

—
Out of stock

22

COLLAR 1832518300

90387-12095-00

—

$4.63

In stock

23

YBS66-12 WASHER,PLAIN

92990-12200-00

—

$6.17

In stock

24

NUT CASTLE(481)

90171-12005-00

—

$7.35

In stock

25

PIN, COTTER

91490-30030-00

—

$7.15

In stock
