REAR WHEEL

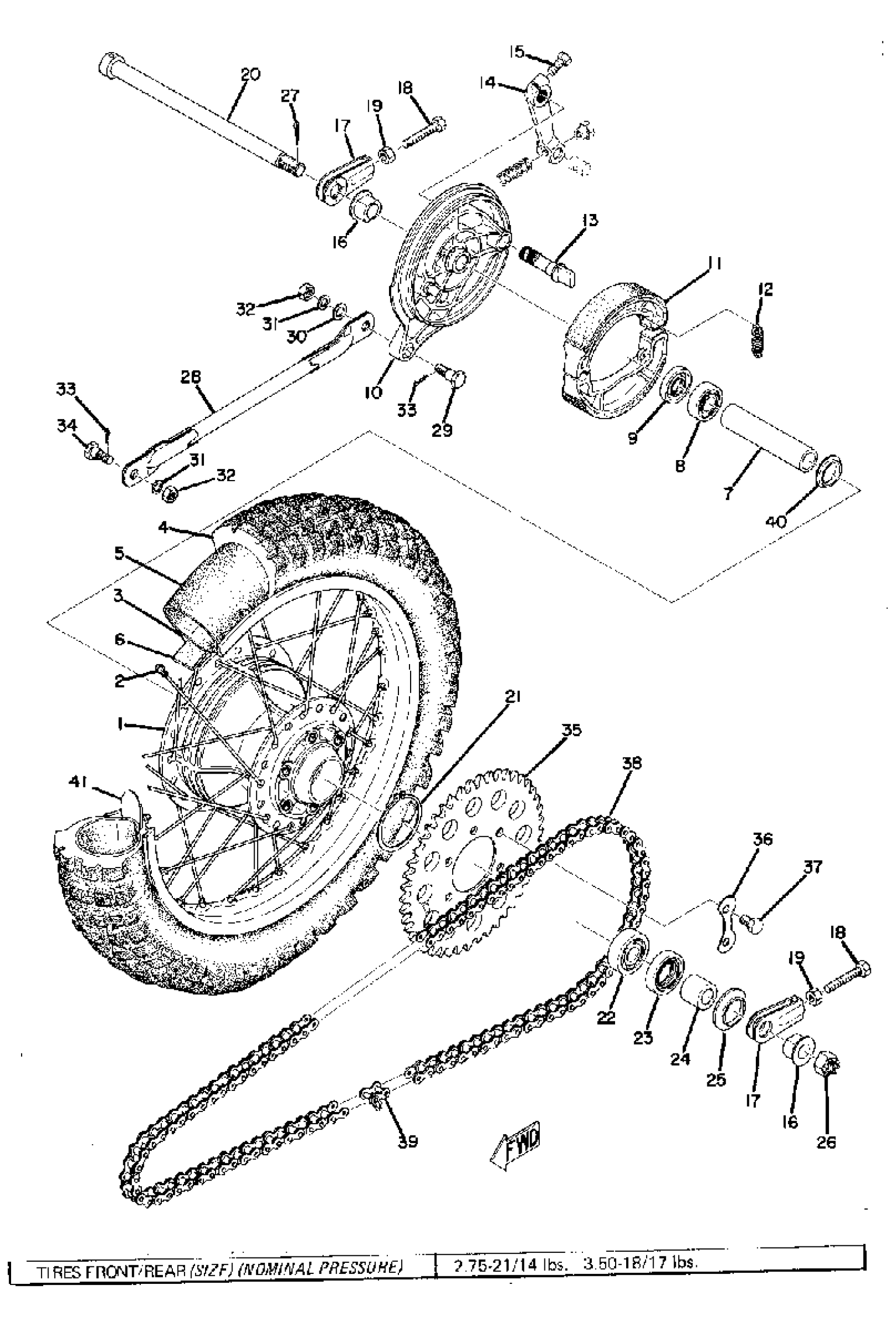

1974 Yamaha MX175 (MX175A) Rear Wheel Diagram
Find the part on the Rear Wheel diagram for your 1974 Yamaha MX175 (MX175A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HUB, REAR
(403-25311-00-38)
2
SPOKE SET, INNER 1
(345-25391-90-00)
2
SPOKE SET, OUTER 1
(345-25392-90-00)
2
SPOKE SET, REAR
401-25304-00-00
2
SPOKE SET, INNER 2
(401-25396-90-00)
2
SPOKE SET, OUTER 2
(401-25397-90-00)
3
RIM 1.85X18
(94418-18127-00)
4
CS 350X18 C-755-1
(94135-18551-00)
5
TUBE (2RH)
94232-18113-00
9
OIL SEAL (22X35X5)
93104-22018-00
10
PLATE, BRAKE SHOE
(248-25321-00-35)
11
BRAKE SHOE SET-2PCS
183-W2536-00-00
13
CAMSHAFT
26A-25351-00-00
14
. LEVER, CAMSHAFT (168-25355-00)
4V5-25355-00-00
16
COLLAR
90387-15115-00
20
AXLE, WHEEL (2R7-25381-00)
401-25381-00-00
24
COLLAR (401-25377-00)
90387-15424-00
28
BAR, TENSION
(401-25371-01-00)
29
BOLT 1092537300
90109-08063-00
35
SPROCKET, DRIVN 45T
(401-25445-00-00)
35
SPROCKET, DRIVN 47T (47T)
401-25447-00-00
35
SPROCKET, DRIVN 49T
(401-25449-00-00)
37
BOLT, FITTING
90109-08377-00
39
JOINT, CHAIN(3KX)
94681-64001-00
