1974 Yamaha MX175 (MX175A) OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1974 Yamaha MX175 (MX175A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

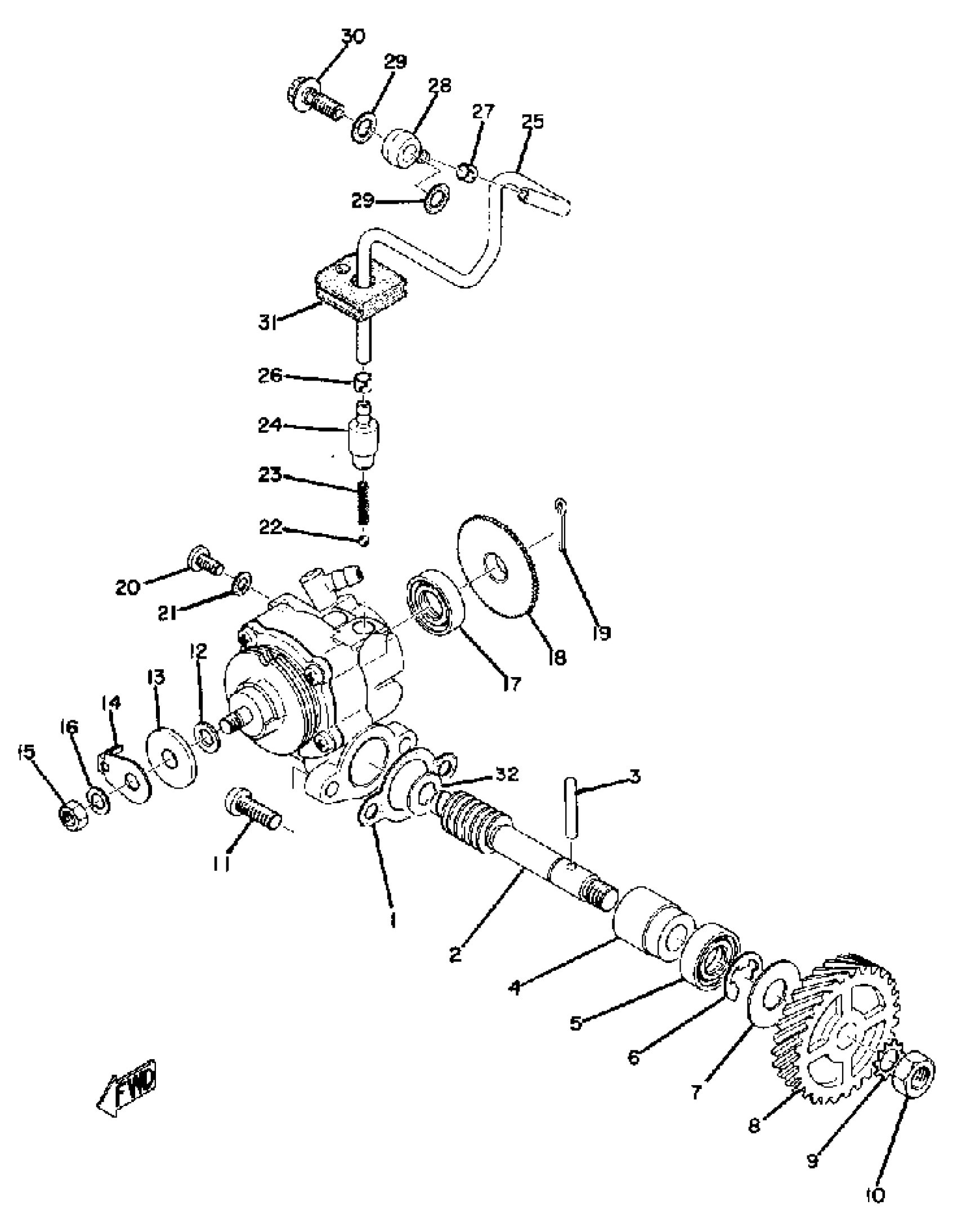

1974 Yamaha MX175 (MX175A) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

1

OIL PUMP ASSEMBLY

(455-13101-00-00)

1
Out of stock

2

SHAFT, WORM (278-13175-00)

278-13175-01-00

1
Out of stock

3

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

4

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

5

OIL SEAL (10X22X7-137)

93101-10002-00

1

$6.68

In stock

6

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

7

WASHER, PLATE(52H)

90201-105J4-00

1

$6.88

In stock

8

GEAR, DRIVE

248-13178-00-00

—

$23.02

In stock

9

WASHER (688)

92990-08400-00

1

$3.46

In stock

10

. NUT

95380-08700-00

1

$3.07

In stock

11

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

12

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

13

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

14

COVER, AJST PULLEY

(402-13146-00-00)

1
Out of stock

15

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

16

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

17

OIL SEAL (J10)

93101-10090-00

—

$6.17

In stock

18

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

19

. PIN, COTTER

91401-12018-00

1
Out of stock

20

SCREW, BIND

98980-04008-00

1

$3.26

In stock

21

GASKET 137131870000

90430-04004-00

—
Out of stock

22

BALL

93505-32002-00

—

$2.22

In stock

23

SPRING (278-13169-00)

90501-02018-00

—

$7.69

In stock

24

NOZZLE

402-13552-00-00

—

$10.32

In stock

25

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

26

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

27

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

28

BANJO, DELIVERY PIPE

214-13162-01-00

—

$26.11

In stock

29

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

30

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

31

HOLDER, OIL PIPE

248-13174-00-00

—
Out of stock

32

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock
