1974 Yamaha MX175 (MX175A) Crank - Piston Diagram

← All diagrams

Find the part on the Crank - Piston diagram for your 1974 Yamaha MX175 (MX175A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

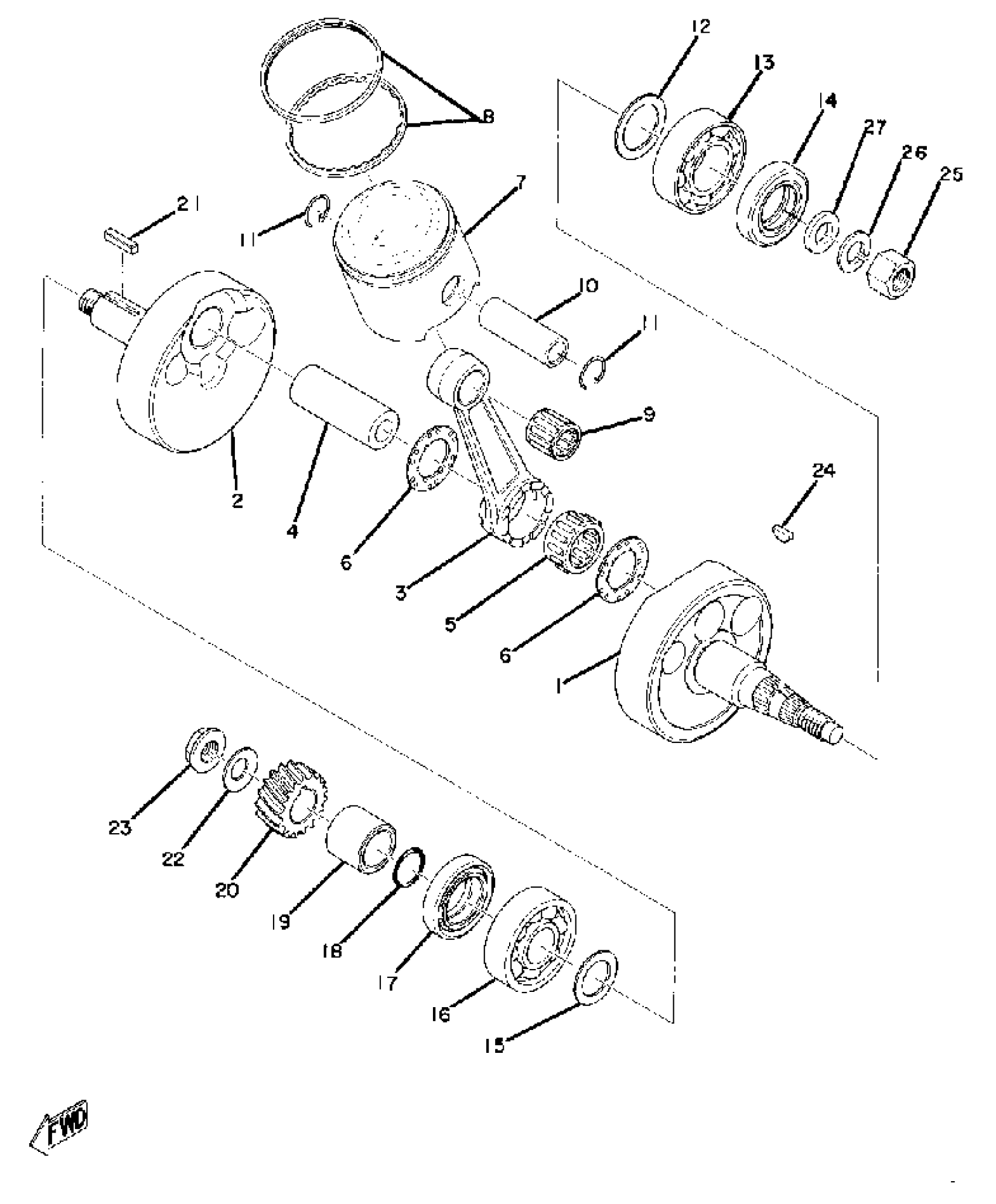

1974 Yamaha MX175 (MX175A) Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(401-11400-02-00)

1
Out of stock

1

CRANK 1

(452-11412-00-00)

1
Out of stock

2

CRANK 2

(401-11422-00-00)

1
Out of stock

2

PISTON KIT STD

(455-11630-01-00)

1
Out of stock

2

PISTON KIT 1ST

(455-11630-11-00)

1
Out of stock

2

PISTON KIT 2ND

(455-11630-21-00)

1
Out of stock

2

PISTON KIT 3RD

(455-11630-31-00)

1
Out of stock

2

PISTON KIT 4TH

(455-11630-41-00)

1
Out of stock

3

. ROD, CONNECTING

3R2-11651-01-00

1
Out of stock

4

PIN, CRANK 1

3M5-11681-00-00

1

$21.97

In stock

5

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

1

$42.77

In stock

6

WASHER (29L)

90209-22248-00

—
Out of stock

7

PISTON STD (65.96MM STD)

455-11631-02-96

1
Out of stock

7

PISTON 1 O/S 0.25 (66.25MM 1ST O.S)

455-11635-02-00

1
Out of stock

7

PISTON 2 O/S 0.50 (66.50MM 2ND O.S)

455-11636-02-00

1
Out of stock

7

PISTON 3 O/S 0.75 (66.75MM 3RD O.S)

455-11637-02-00

1
Out of stock

7

PISTON 4 O/S 1.00 (67.00MM 4TH O.S)

455-11638-02-00

1
Out of stock

8

PISTON RINGSET STD (STD)

455-11610-00-00

1
Out of stock

8

PISTON RINGSET 1ST (1ST O.S)

455-11610-10-00

1
Out of stock

8

PISTON RINGSET 2ND (2ND O.S)

455-11610-20-00

1
Out of stock

8

PISTON RINGSET 3RD (3RD O.S)

455-11610-30-00

1
Out of stock

8

PISTON RINGSET 4TH (4TH O.S)

455-11610-40-00

1
Out of stock

9

—

$23.03

In stock

10

PIN, PISTON

251-11633-00-00

—

$23.85

In stock

11

CIRCLIP (137-11634-00)

93450-17025-00

—

$6.17

In stock

12

. SHIM, CRANK 1

132-11561-00-03

1
Out of stock

12

SHIM, CRANK 1

132-11561-00-05

1
Out of stock

13

—

$35.25

In stock

14

OIL SEAL (25X40X8-248)

93102-25061-00

—

$11.00

In stock

15

SHIM, CRANK 1

136-11561-00-04

1
Out of stock

15

SHIM, CRANK 1

136-11561-00-05

1
Out of stock

15

SHIM, CRANK 1

136-11561-00-06

1
Out of stock

15

SHIM, CRANK 1

136-11561-00-07

1
Out of stock

16

—

$54.91

In stock

17

OIL SEAL (28X40X8-132)

93103-28011-00

—

$12.05

In stock

18

O-RING(3KX)

93210-180A6-00

—

$4.78

In stock

19

COLLAR (4Y2)

90387-205E9-00

—
Out of stock

20

GEAR, PRIMARY DRIVE (C)

401-16111-00-30

—
Out of stock

21

KEY, STRAIGHT 3531154600

90282-05005-00

—
Out of stock

22

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

23

NUT(1EE)

90179-12659-00

—

$5.37

In stock

24

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock

25

NUT(55K)

90170-12347-00

—

$8.43

In stock

26

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

27

WASHER (492)

90201-12535-00

—
Out of stock
