1974 Yamaha MX175 (MX175A) Crankcase - Cylinder Diagram

← All diagrams

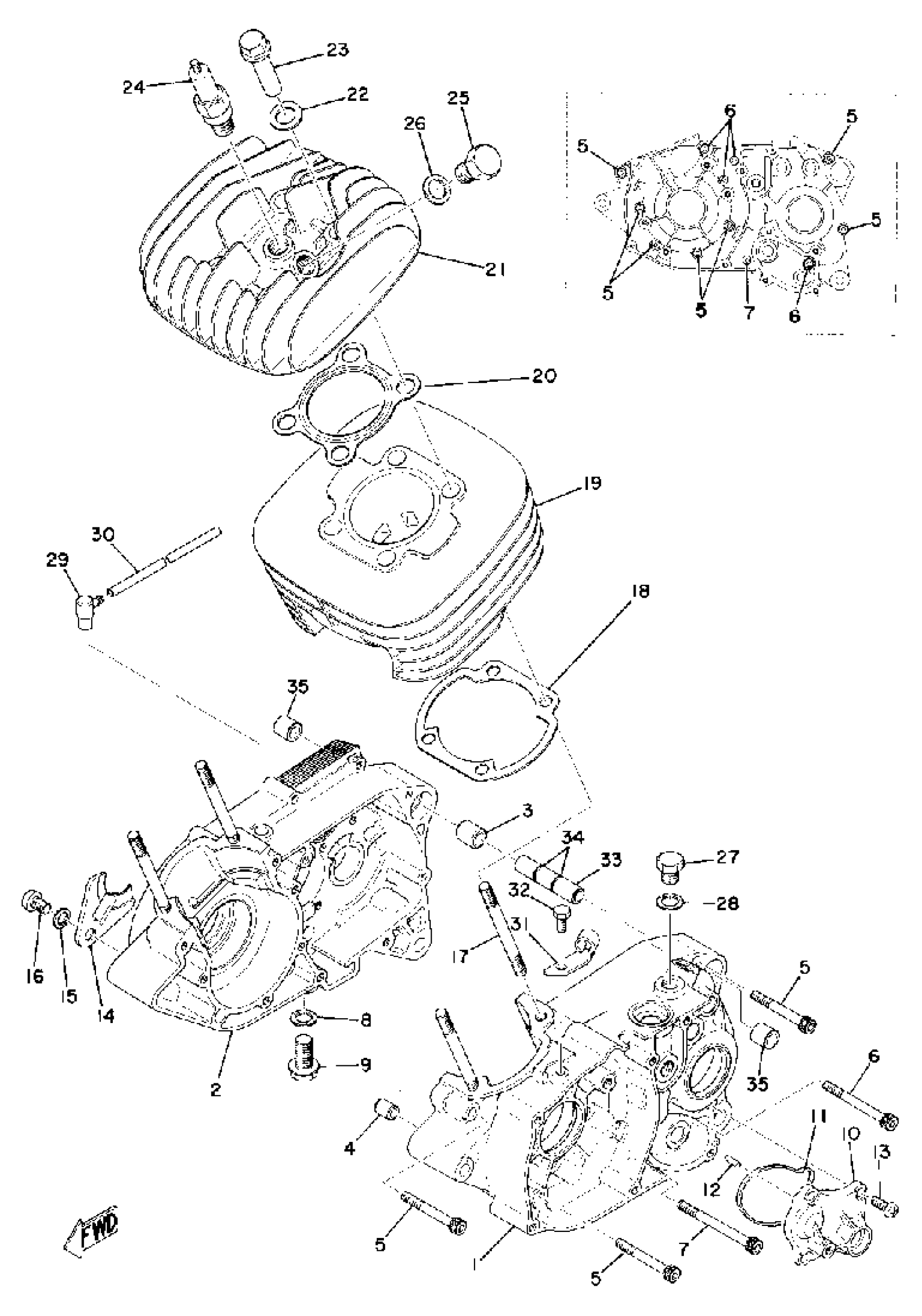

Find the part on the Crankcase - Cylinder diagram for your 1974 Yamaha MX175 (MX175A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha MX175 (MX175A) Crankcase - Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

(401-15111-03-00)

1
Out of stock

2

UNAVAILABLE IN PRICE BOOK

401-15121-02-00

1
Out of stock

3

PIN, DOWEL

99530-20020-00

1
Out of stock

4

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

5

BOLT,SOCKET

91317-06050-00

1
Out of stock

6

BOLT,SOCKET

91317-06060-00

1
Out of stock

7

BOLT, SOCKET

91317-06070-00

1
Out of stock

8

GASKET (3JD1)

90430-12207-00

1
Out of stock

9

PLUG STRAIGTSCREW 132153510000

90340-12005-00

1
Out of stock

10

COVER, SHIFTER 1

401-15419-01-00

1
Out of stock

11

RING, RUBBER

401-15449-00-00

1
Out of stock

12

PIN,DOWEL (603)

93603-12007-00

1
Out of stock

13

SCREW, PAN

98507-06014-00

1
Out of stock

14

HOLDER (R.H)

304-15128-00-00

1
Out of stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

16

SCREW,PAN HEAD

98580-08012-00

1
Out of stock

17

BOLT (248-11361-00)

90116-08064-00

—
Out of stock

18

GASKET, CYLINDER

1WE-11351-00-00

—
Out of stock

19

CYLINDER 1

(455-11311-01-00)

1
Out of stock

20

GASKET, CYLINDER HEAD

251-11181-00-00

—
Out of stock

21

HEAD, CYLINDER 1

(455-11111-00-00)

1
Out of stock

22

WASHER PLATE 278111750000

90201-12362-00

—
Out of stock

23

NUT (3V6)

90179-08303-00

—
Out of stock

24

NGK BR8EV 4PK

NGK-BR8EV-00-00

1
Out of stock

25

PLUG, BLIND

90340-14022-00

1
Out of stock

26

GASKET

214-11198-01-00

—
Out of stock

27

PLUG, STRAIGHT SCREW

90340-12004-00

1
Out of stock

28

WASHER, PLATE

90201-12790-00

—
Out of stock

29

BREATHER

583-15371-00-00

—
Out of stock

30

HOSE

(90446-07009-00)

1
Out of stock

31

HOLDER, CLUTCH CABLE

401-15441-02-00

1
Out of stock

32

BOLT (661)

97013-06012-00

—
Out of stock

33

SPACER, ENGINE MOUNT

401-15317-00-00

—
Out of stock

34

O-RING (P95)

93210-11073-00

—
Out of stock

35

DAMPER

90388-08003-00

—
Out of stock

35

GASKET SET DT175

(443-00000-21-00)

1
Out of stock
