1974 Yamaha MX175 (MX175A) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1974 Yamaha MX175 (MX175A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

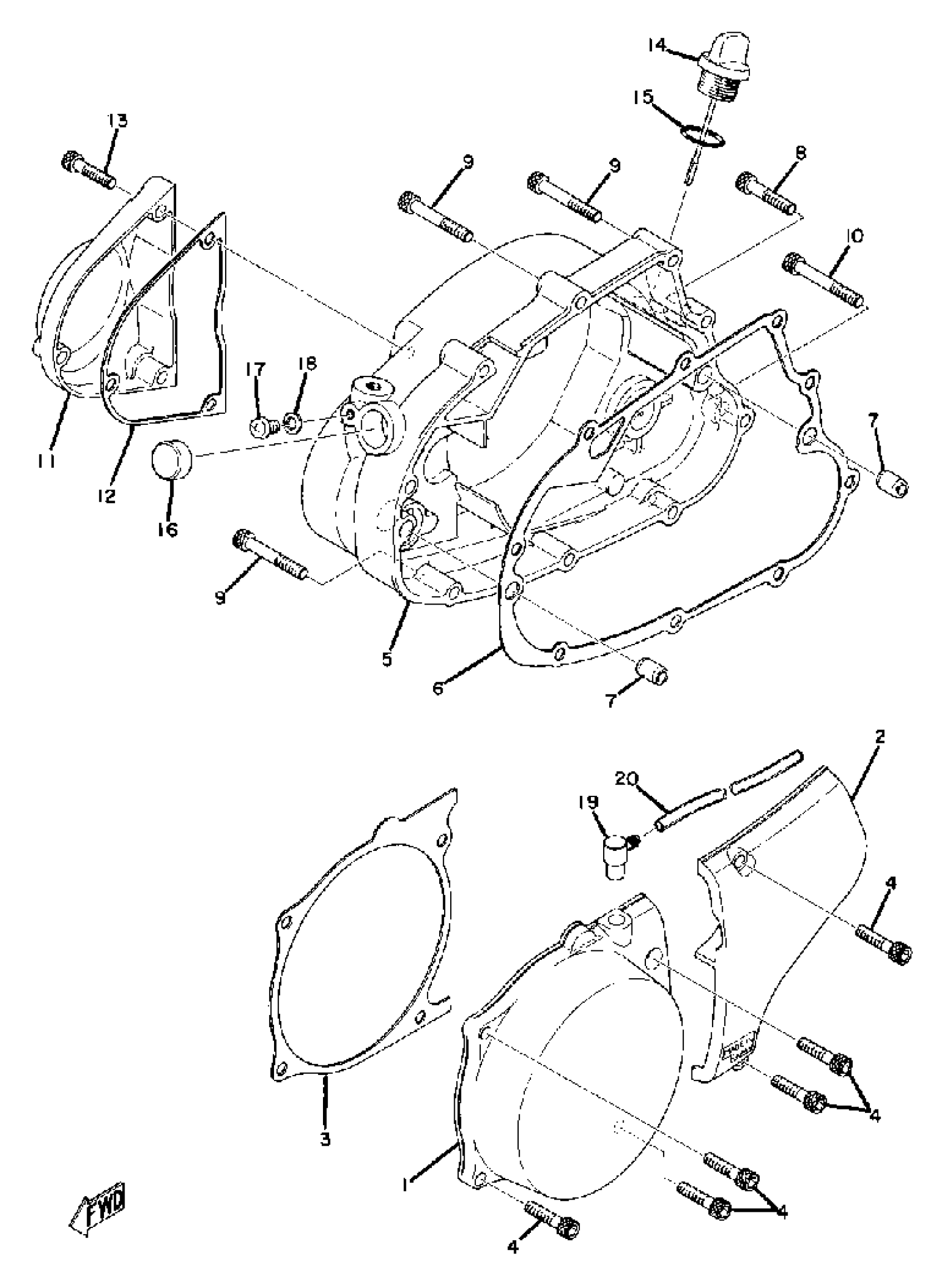

1974 Yamaha MX175 (MX175A) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L

1X0-15411-00-00

1
Out of stock

2

COVER, CRANKCASE R

401-15421-00-00

1
Out of stock

3

GASKET 1

401-15455-01-00

1
Out of stock

4

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

5

COVER, CRANKCASE 3

401-15431-00-00

1
Out of stock

6

GASKET, CRANKCASE COVER 1

3UL-15451-00-00

1

$18.18

In stock

7

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

8

1

$3.82

In stock

9

BOLT,SOCKET

91317-06040-00

1

$3.45

In stock

10

BOLT,SOCKET

91317-06045-00

1
Out of stock

11

COVER, OIL PUMP

1X0-15416-00-00

1
Out of stock

12

GASKET, OIL PUMP COVER 1

3UL-15456-01-00

1

$9.88

In stock

13

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

14

PLUG, OIL LEVEL

401-15362-00-00

1
Out of stock

15

O-RING (646)

93210-19123-00

—

$6.91

In stock

16

PLUG 363174810000

90338-20023-00

—

$5.14

In stock

17

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

BREATHER

583-15371-00-00

—
Out of stock

20

GASKET SET DT175

(443-00000-21-00)

1
Out of stock

20

HOSE

(90446-07009-00)

1
Out of stock
