1980 Yamaha MX100 (MX100G) Lighting Diagram

← All diagrams

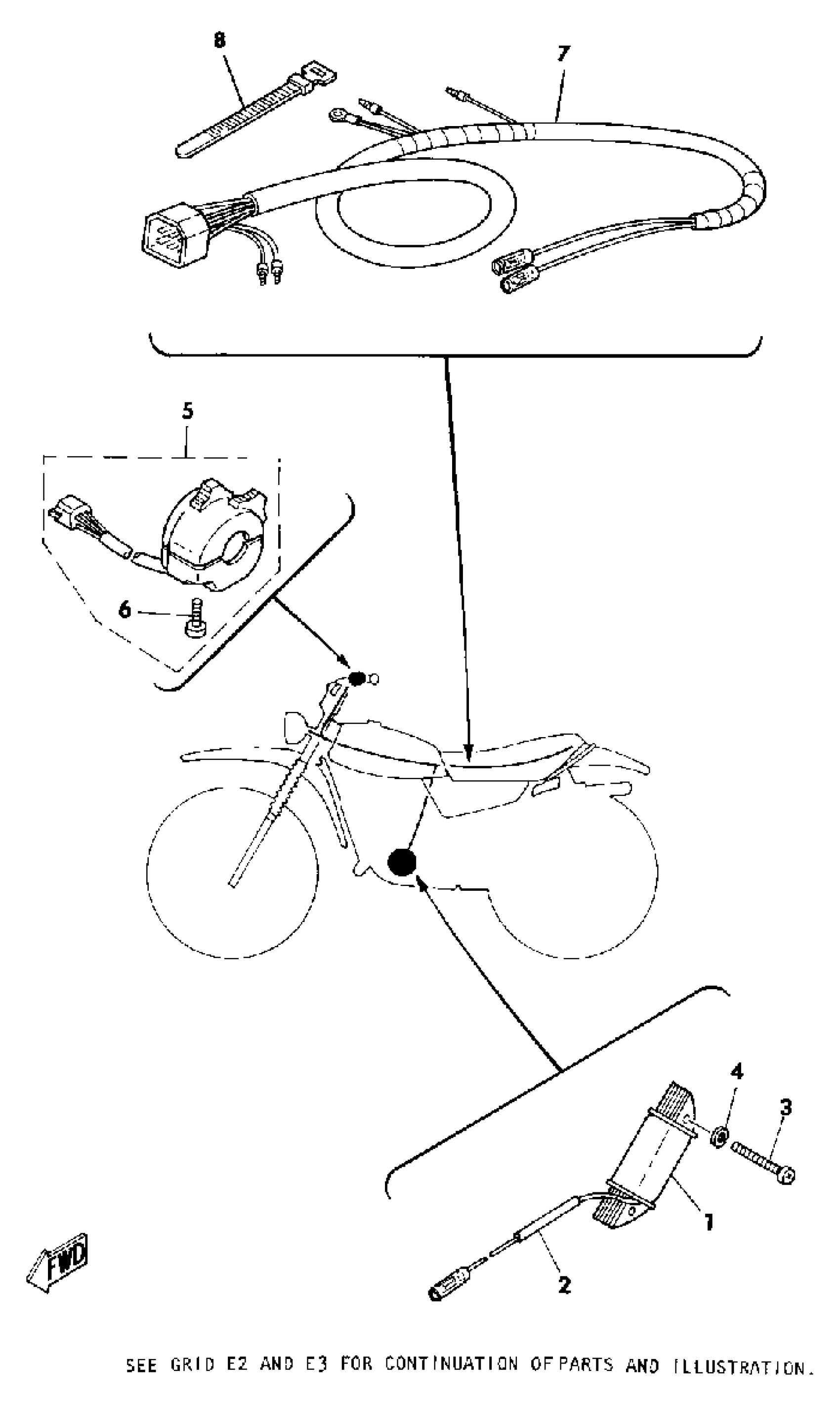

Find the part on the Lighting diagram for your 1980 Yamaha MX100 (MX100G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha MX100 (MX100G) Lighting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COIL, LIGHTING 1

(3M2-85513-20-00)

1
Out of stock

2

LEAD WIRE ASSEMBLY

(3M2-85515-21-00)

1
Out of stock

3

SCREW, PAN

98507-04030-00

1

$1.51

In stock

4

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

5

SWITCH, HANDLE 3

1W2-83973-00-98

1
Out of stock

6

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

7

WIRE HARNESS ASSEMBLY

(3T0-82590-90-00)

1
Out of stock

8

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

9

UNAVAILABLE IN PRICE BOOK

(1W2-84110-60-00)

1
Out of stock

10

RIM, HEADLIGHT

(1W2-84115-60-00)

1
Out of stock

11

. COVER, HEADLIGHT

1W2-84144-60-00

1
Out of stock

12

. LENS ASSEMBLY

3R8-84120-60-00

1
Out of stock

13

. BULB, HL 6V25/25W

527-84114-09-XX

1
Out of stock

14

. SOCKET

1W2-84112-60-00

1
Out of stock

15

. SPRING, REFLECTOR

1W2-84324-60-00

1
Out of stock

16

BODY ASSEMBLY, HEADLIGHT

1W2-84130-60-00

1
Out of stock

17

COLLAR, BODY FTNG

(1W2-84145-60-00)

1
Out of stock

18

. COLLAR, BODY FTNG

1L9-84338-60-00

1
Out of stock

19

DAMPER, HDLT STAY

1W2-84143-00-00

1
Out of stock

20

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

21

NUT(6L2)

95333-08600-00

—

$3.20

In stock

22

STAY, HEADLIGHT 1

(3M1-84118-00-00)

1
Out of stock

23

STAY, HEADLIGHT 2

(3M1-84119-00-00)

1
Out of stock

24

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

27

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

28

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

29

NUT, CROWN

95303-08800-00

—

$7.52

In stock

30

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

31

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

32

TAILLIGHT ASSEMBLY

434-84500-64-00

1
Out of stock

33

LENS, TAIL LAMP

434-84521-69-00

—
Out of stock

34

RIM,TAILLIGHT

5AU-83323-01-00

1
Out of stock

35

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

1
Out of stock

36

. CORD, TAILLIGHT

434-84517-61-00

1
Out of stock

37

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

38

. SCREW, LENS FITTING

434-84524-61-00

1
Out of stock

39

. BRACKET, TAILLIGHT

434-84519-64-00

1
Out of stock

40

TAILLIGHT ASSEMBLY

434-84500-64-00

1
Out of stock

41

COLLAR

(434-84557-60-00)

1
Out of stock

42

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

43

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

44

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

45

CLAMP

(90462-08003-00)

1
Out of stock

46

GROMMET (1E6)

90480-15058-00

—

$6.17

In stock
