1980 Yamaha MX100 (MX100G) Frame - Tool Diagram

← All diagrams

Find the part on the Frame - Tool diagram for your 1980 Yamaha MX100 (MX100G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

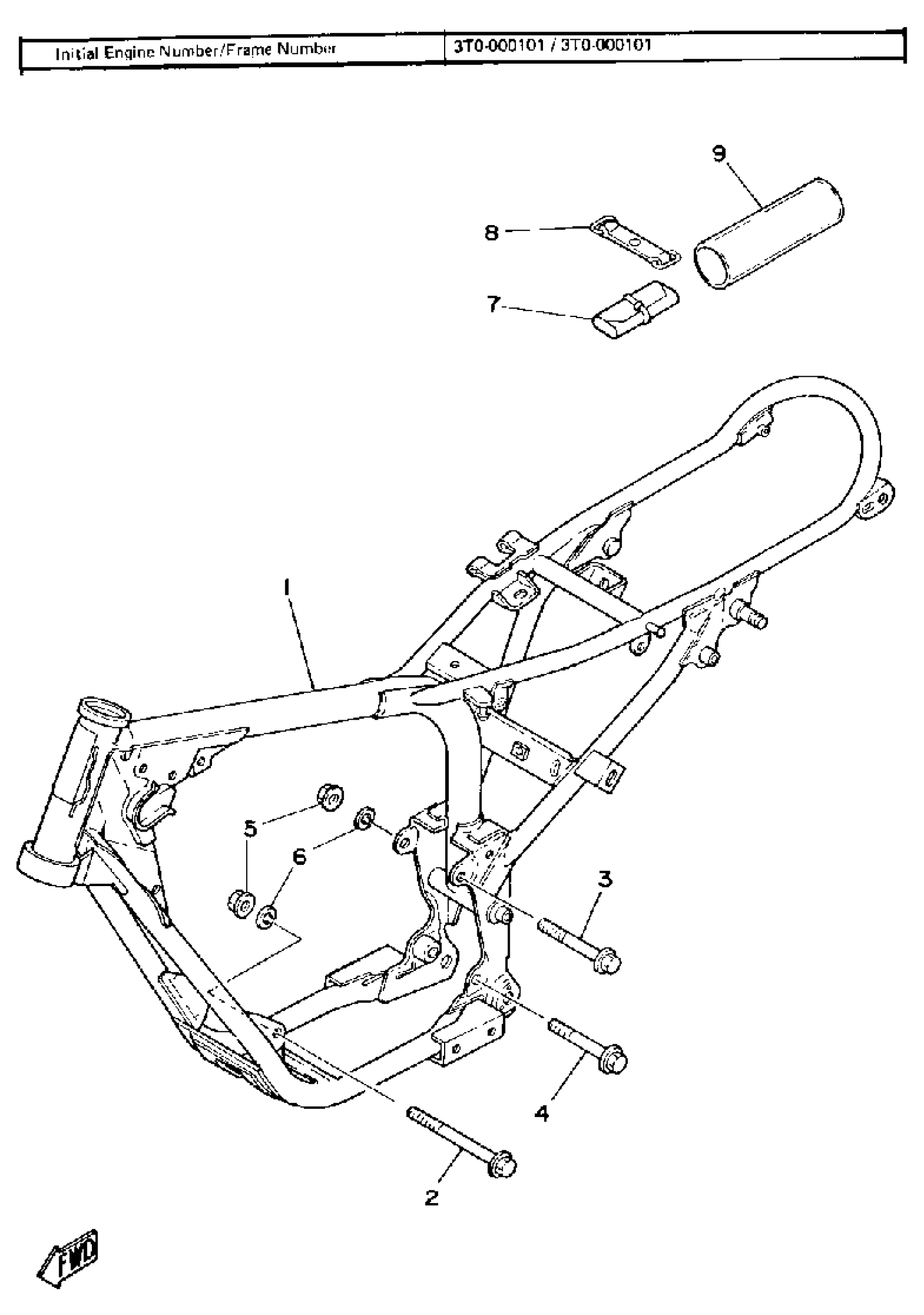

1980 Yamaha MX100 (MX100G) Frame - Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(3T0-21110-00-33)

1
Out of stock

2

BOLT, FLANGE

90105-08094-00

1
Out of stock

3

BOLT (1T9)

90105-08095-00

1

$3.82

In stock

4

BOLT, FLANGE

95817-10075-00

1
Out of stock

5

NUT, FLANGE

95704-08500-00

1
Out of stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

TOOL KIT

353-W2810-01-00

1
Out of stock

8

BAND, TOOL

21V-21376-00-00

1

$6.38

In stock

9

COVER, TOOL BOX

(1T9-28171-00-00)

1
Out of stock
