1980 Yamaha MX100 (MX100G) Electrical 1 Diagram

← All diagrams

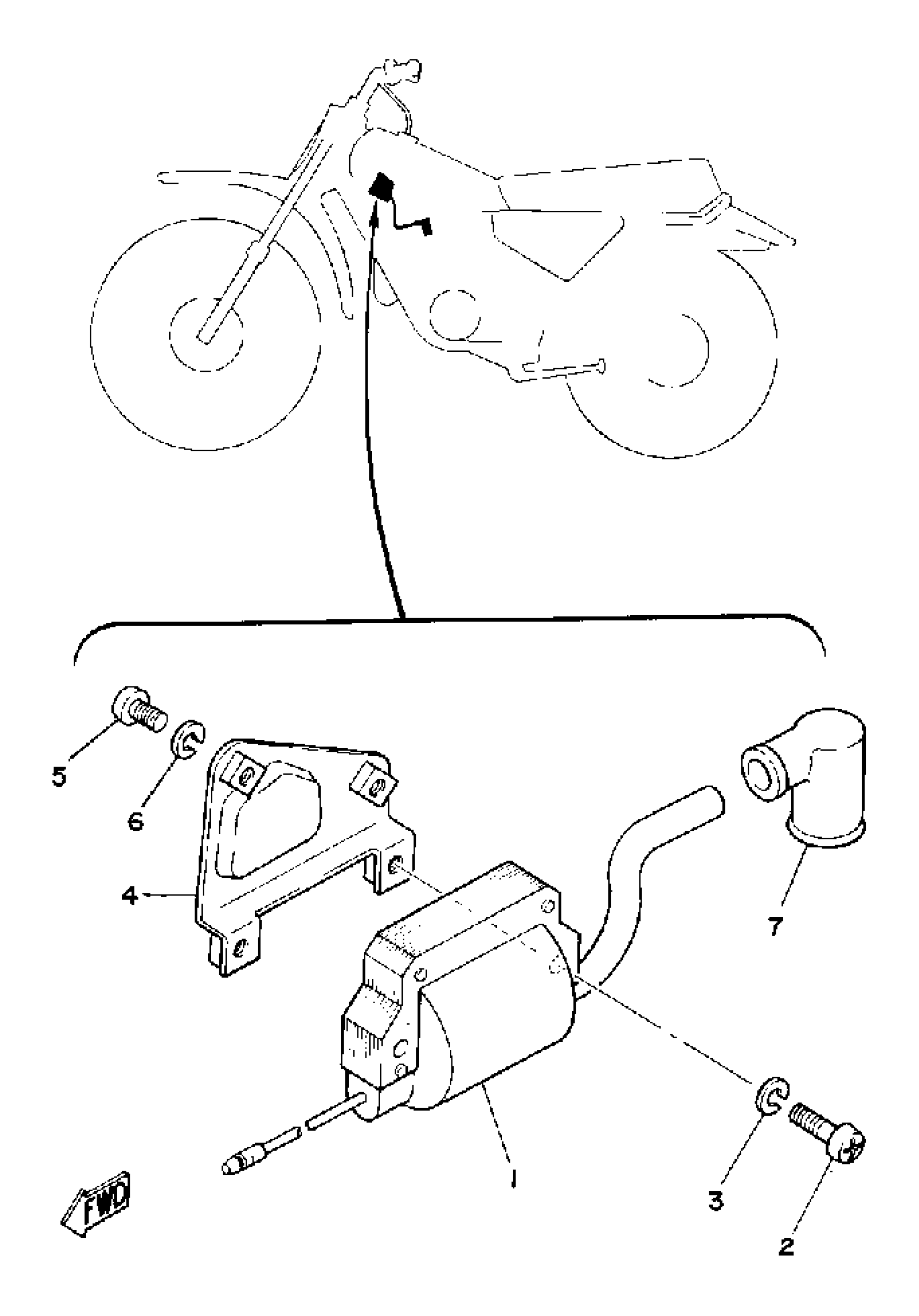

Find the part on the Electrical 1 diagram for your 1980 Yamaha MX100 (MX100G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha MX100 (MX100G) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSY

355-82310-40-00

—

$182.78

In stock

2

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

BRACKET, IGNITION COIL

336-82316-01-00

1
Out of stock

5

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock
