1980 Yamaha MX100 (MX100G) Handle Switch - Lever Diagram

← All diagrams

Find the part on the Handle Switch - Lever diagram for your 1980 Yamaha MX100 (MX100G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

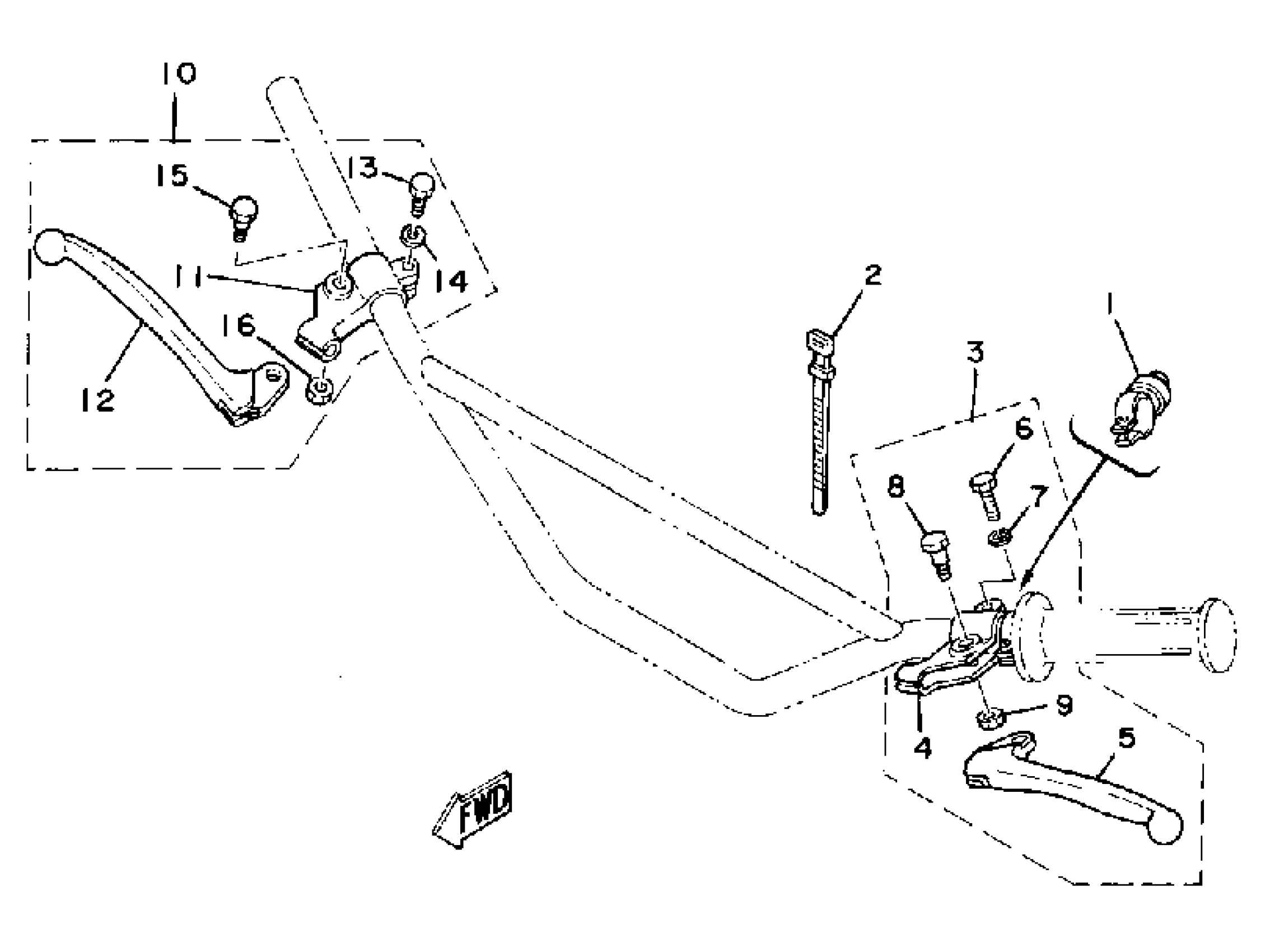

1980 Yamaha MX100 (MX100G) Handle Switch - Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH, HANDLE 1

3M1-83976-00-00

1
Out of stock

2

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

3

LEVER HOLDER ASSEMBLY 1

214-82910-06-00

1
Out of stock

4

HOLDER, LEVER (L.H)

214-82911-01-00

1

$48.32

In stock

5

LEVER(L.H)

214-83912-00-00

1

$19.48

In stock

6

BOLT, HEXAGON

97013-06022-00

1

$1.20

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

9

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

10

LEVER HOLDER ASSEMBLY 2

(233-82920-34-00)

1
Out of stock

11

HOLDER, LEVER (R.H)

233-82921-31-00

1

$58.60

In stock

12

LEVER(R.H)

233-83922-30-00

1

$19.29

In stock

13

BOLT, HEXAGON

97013-06022-00

1

$1.20

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

16

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock
