1979 Yamaha MX100 (MX100F) OIL Pump Diagram

← All diagrams

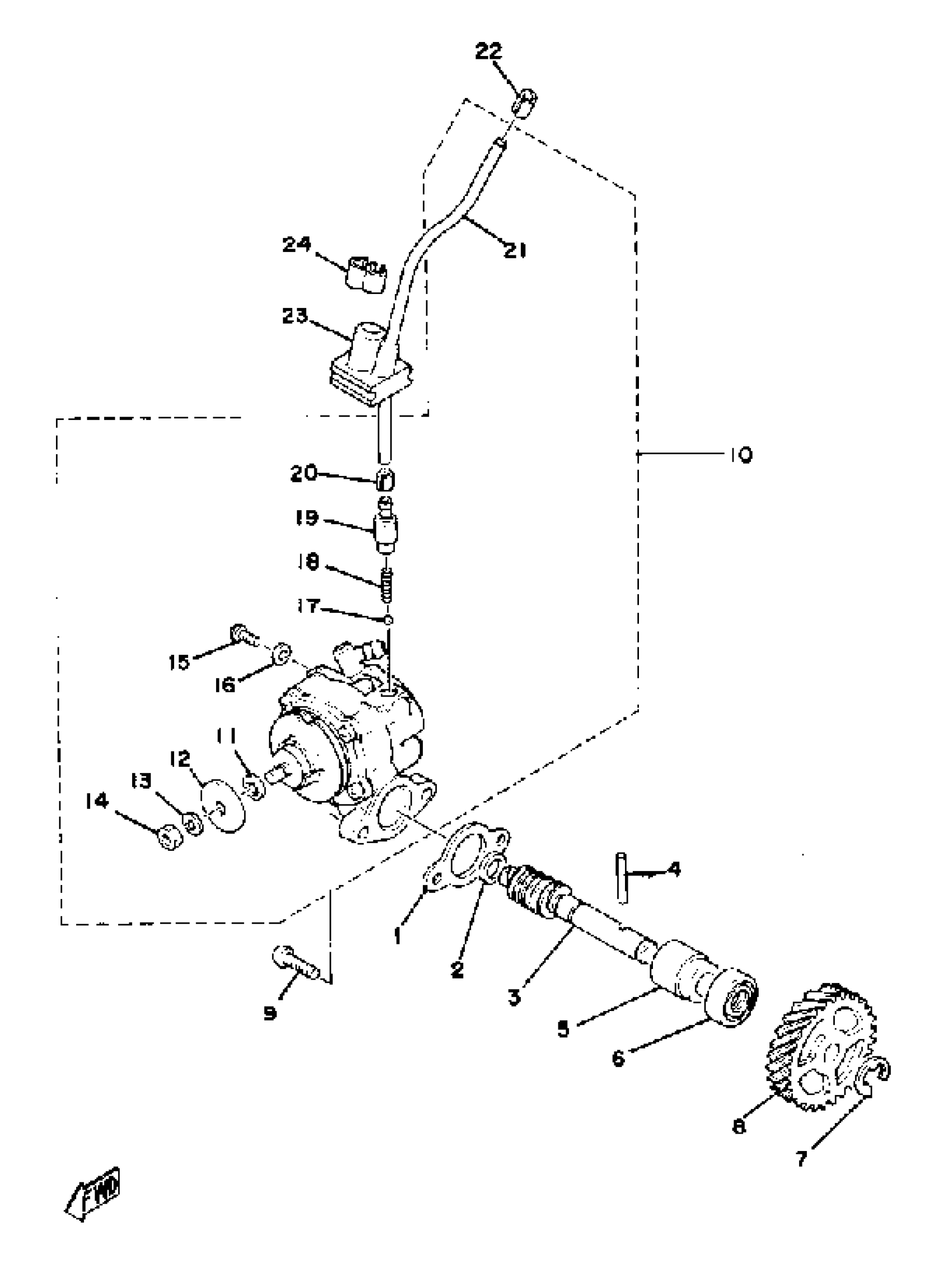

Find the part on the OIL Pump diagram for your 1979 Yamaha MX100 (MX100F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha MX100 (MX100F) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

3

SHAFT, WORM

275-13175-02-00

1

$22.03

In stock

4

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

5

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

6

OIL SEAL (10X22X7-137)

93101-10002-00

1

$6.68

In stock

7

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

8

GEAR, DRIVE

248-13178-00-00

—

$23.02

In stock

9

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

10

OIL PUMP ASSY

3UL-13101-00-00

1
Out of stock

11

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

11

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

11

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

12

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

15

SCREW, BIND

98980-04008-00

1

$3.26

In stock

16

GASKET 137131870000

90430-04004-00

—
Out of stock

17

BALL

93505-32002-00

—

$2.22

In stock

18

SPRING (278-13169-00)

90501-02018-00

—

$7.69

In stock

19

NOZZLE

402-13552-00-00

—

$10.32

In stock

20

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

21

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

22

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

23

HOLDER OIL PIPE

525-13174-01-00

—
Out of stock

24

CLIP (867)

90468-15020-00

—
Out of stock
