1979 Yamaha MX100 (MX100F) Crankshaft-Piston Diagram

← All diagrams

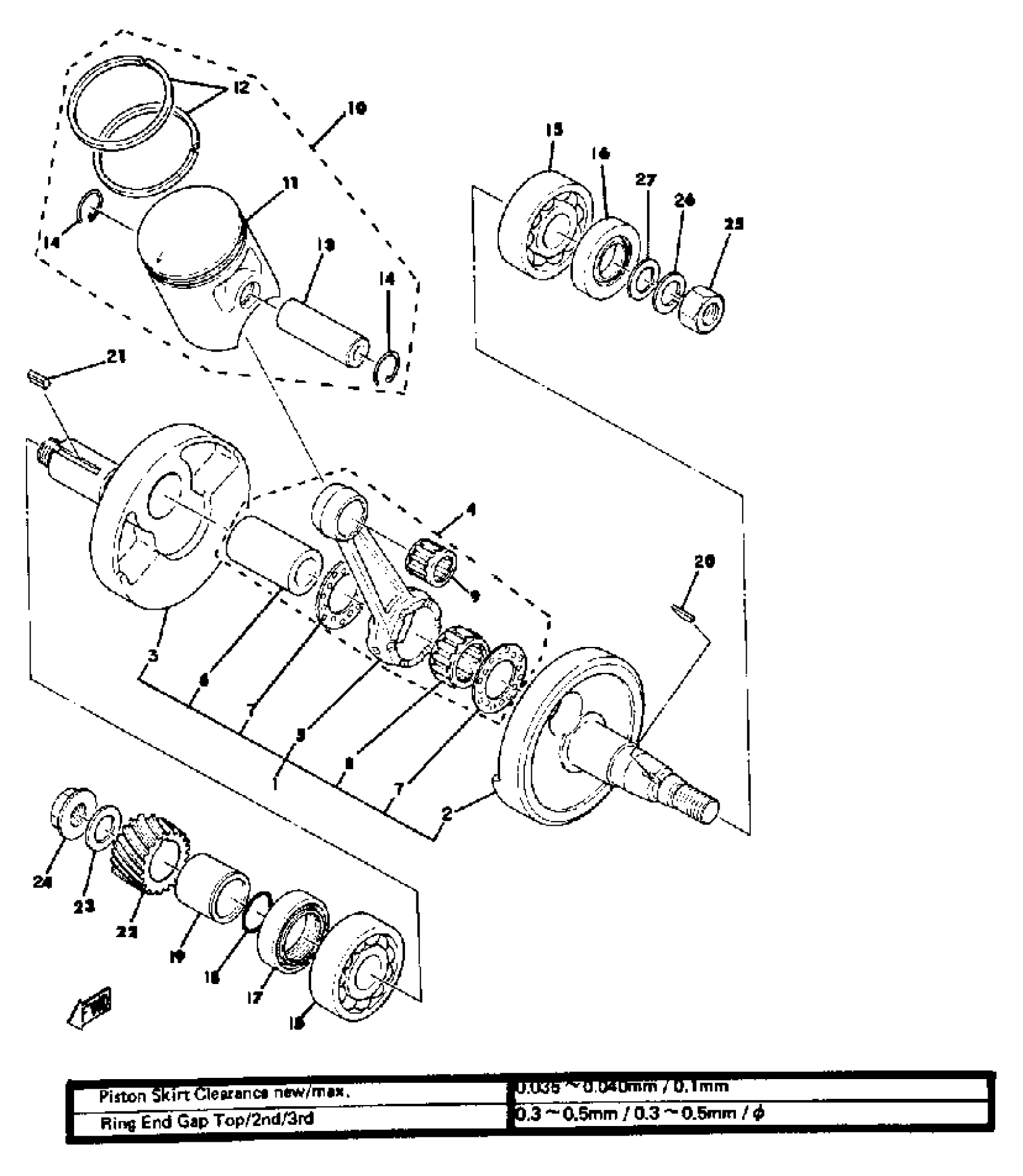

Find the part on the Crankshaft-Piston diagram for your 1979 Yamaha MX100 (MX100F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha MX100 (MX100F) Crankshaft-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

558-11400-00-00

1
Out of stock

2

CRANK (L.H)

558-11412-00-00

—

$83.04

In stock

3

CRANK 2

(558-11422-00-00)

1
Out of stock

4

CONNECTING ROD KIT

1M7-11650-00-00

—

$162.25

In stock

5

ROD, CONNECTING

1M7-11651-00-00

1

$106.31

In stock

6

. UNAVAILABLE IN PRICE BOOK

5E2-11681-01-00

1
Out of stock

7

WASHER (29L)

90209-22248-00

—
Out of stock

8

BRG,CYL-CAL ROLLER 16G TM

93310-422E7-00

—

$39.02

In stock

9

BRG,CYL-CAL ROLLER 7G TM

93310-21403-00

1

$25.49

In stock

10

PISTON KIT STD

558-11630-00-00

1
Out of stock

11

. PISTON STD

558-11631-01-96

1
Out of stock

12

. PISTON RINGSET STD

558-11610-00-00

1
Out of stock

13

PIN, PISTON

131-11633-00-00

1

$18.28

In stock

14

CIRCLIP 131116340000

93450-15023-00

1

$5.20

In stock

15

1

$54.91

In stock

16

OIL SEAL(4BA)

93102-20447-00

—
Out of stock

17

OIL SEAL (28X40X8-132)

93103-28011-00

—

$12.05

In stock

18

O-RING(3KX)

93210-180A6-00

—

$4.78

In stock

19

—

$7.49

In stock

20

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock

21

KEY, STRAIGHT 3531154600

90282-05005-00

—
Out of stock

22

GEAR, PRIMARY DRIVE (19T)

336-16111-00-00

1
Out of stock

23

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

24

NUT(1EE)

90179-12659-00

—

$5.37

In stock

25

NUT, HEXAGON 98801-12200

90170-12175-00

—

$7.69

In stock

26

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

27

PISTON RINGSET 1ST (1ST O.S.)

558-11610-10-00

1
Out of stock

27

PISTON RINGSET 2ND (2ND O.S.)

558-11610-20-00

1
Out of stock

27

PISTON RINGSET 3RD (3RD O.S.)

558-11610-30-00

1
Out of stock

27

PISTON RINGSET 4TH (4TH O.S.)

558-11610-40-00

1
Out of stock

27

PISTON KIT 1ST

558-11630-10-00

1
Out of stock

27

PISTON KIT 2ND

558-11630-20-00

1
Out of stock

27

PISTON KIT 3RD

558-11630-30-00

1
Out of stock

27

PISTON KIT 4TH

558-11630-40-00

1
Out of stock

27

PISTON 1 O/S 0.25 (52.25MM 1ST O.S.)

558-11635-01-00

1
Out of stock

27

PISTON 2 O/S 0.50 (52.50MM 2ND O.S.)

558-11636-01-00

1
Out of stock

27

PISTON 3 O/S 0.75 (52.75MM 3RD O.S.)

558-11637-01-00

1
Out of stock

27

PISTON 4 O/S 1.00 (53.00MM 4TH O.S.)

558-11638-01-00

1
Out of stock

27

WASHER (492)

90201-12535-00

—
Out of stock
