1979 Yamaha MX100 (MX100F) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1979 Yamaha MX100 (MX100F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

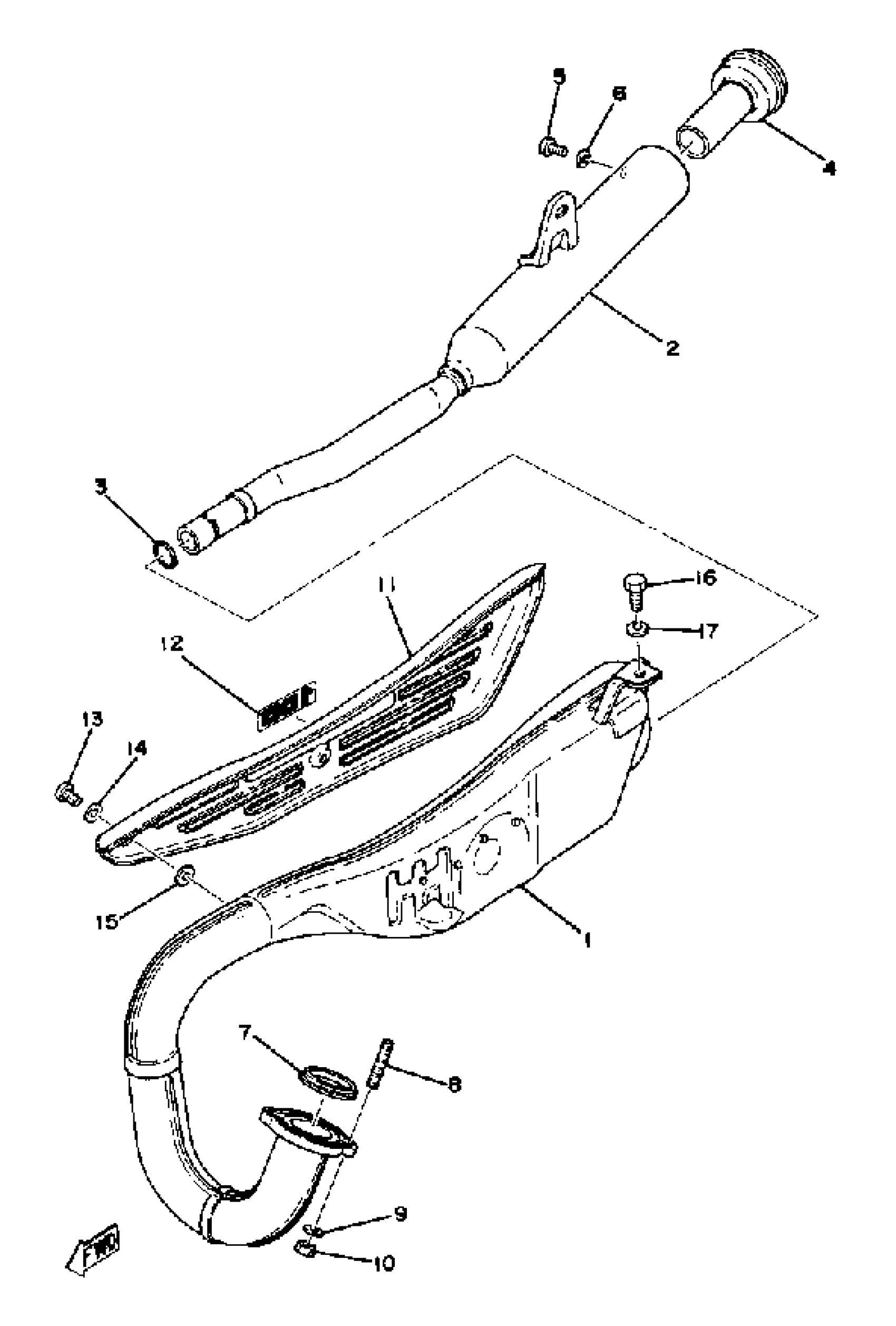

1979 Yamaha MX100 (MX100F) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASY L

3UL-14610-01-00

1
Out of stock

2

SILENCER, EXHAUST

1T9-14753-00-00

1
Out of stock

3

O-RING (538)

93210-16290-00

—

$6.82

In stock

4

PIPE, OUTLET

438-14752-00-00

1
Out of stock

5

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

GASKET, EXHAUST PIPE

3PA-14613-10-00

1
Out of stock

8

BOLT STUD 306111790000

90116-06016-00

1

$3.49

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

11

PROTECTOR, MUFF 1

(1T9-14718-00-2H)

1
Out of stock

12

EMBLEM, PROTECTOR

(3M1-14729-00-00)

1
Out of stock

13

SCREW, BIND(1JK)

98980-06010-00

1
Out of stock

14

WASHER, PLATE(3MT)

90202-05188-00

1

$6.18

In stock

15

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

16

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

17

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock
