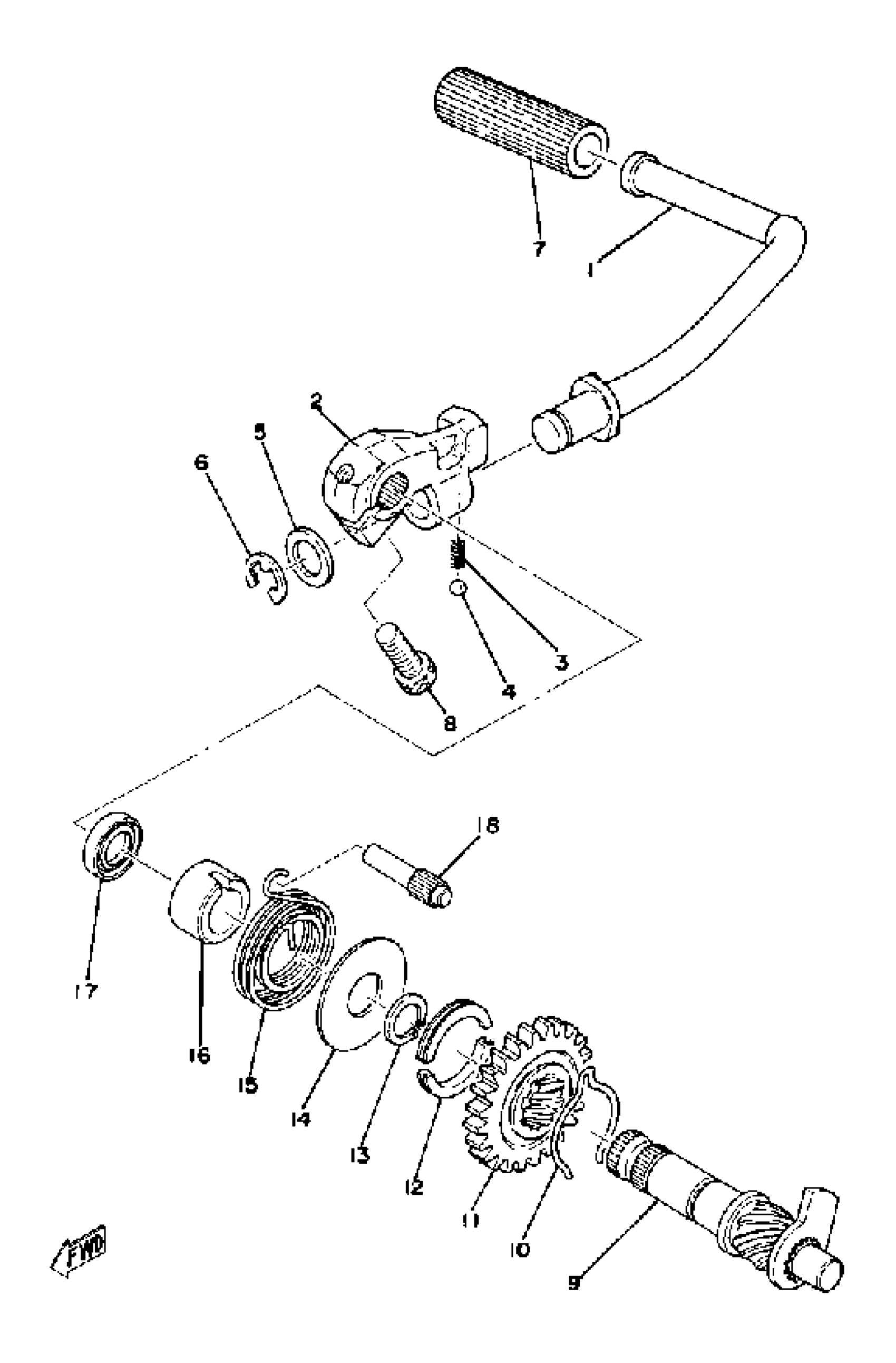

Find the part on the Kick-Starter diagram for your 1979 Yamaha MX100 (MX100F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha MX100 (MX100F) Kick-Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK CRANK ASSEMBLY

3UL-15620-00-00

1
Out of stock

2

BOSS, KICK CRANK

1T9-15621-00-00

1
Out of stock

3

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

4

BALL (12R)

93507-32031-00

1
Out of stock

5

WASHER PLATE 278156130000

90201-15234-00

1

$6.78

In stock

6

CIRCLIP

99006-10600-00

1

$6.91

In stock

7

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

8

BOLT, SOCKET

91317-08025-00

1

$6.25

In stock

9

KICK AXLE ASY

403-15660-02-00

1
Out of stock

10

CLIP 315156870000

90468-26048-00

1
Out of stock

11

GEAR, KICK

315-15641-00-00

—
Out of stock

12

HOLDER, KICK GEAR

248-15654-00-00

1

$6.49

In stock

13

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

14

COVER, SPRING

401-15676-00-00

1

$6.43

In stock

15

1

$5.45

In stock

16

SPACER, KICK AXLE SPRING

1W1-15666-00-00

—

$15.17

In stock

17

OIL SEAL (17X25X4-401)

93101-17062-00

—

$12.58

In stock

18

STOPPER, KICK SPRING

257-15668-00-00

1
Out of stock
