2001 Ski-Doo MX Z X 440 LC Electrical System Diagram

← All diagrams

Find the part on the Electrical System diagram for your 2001 Ski-Doo MX Z X 440 LC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

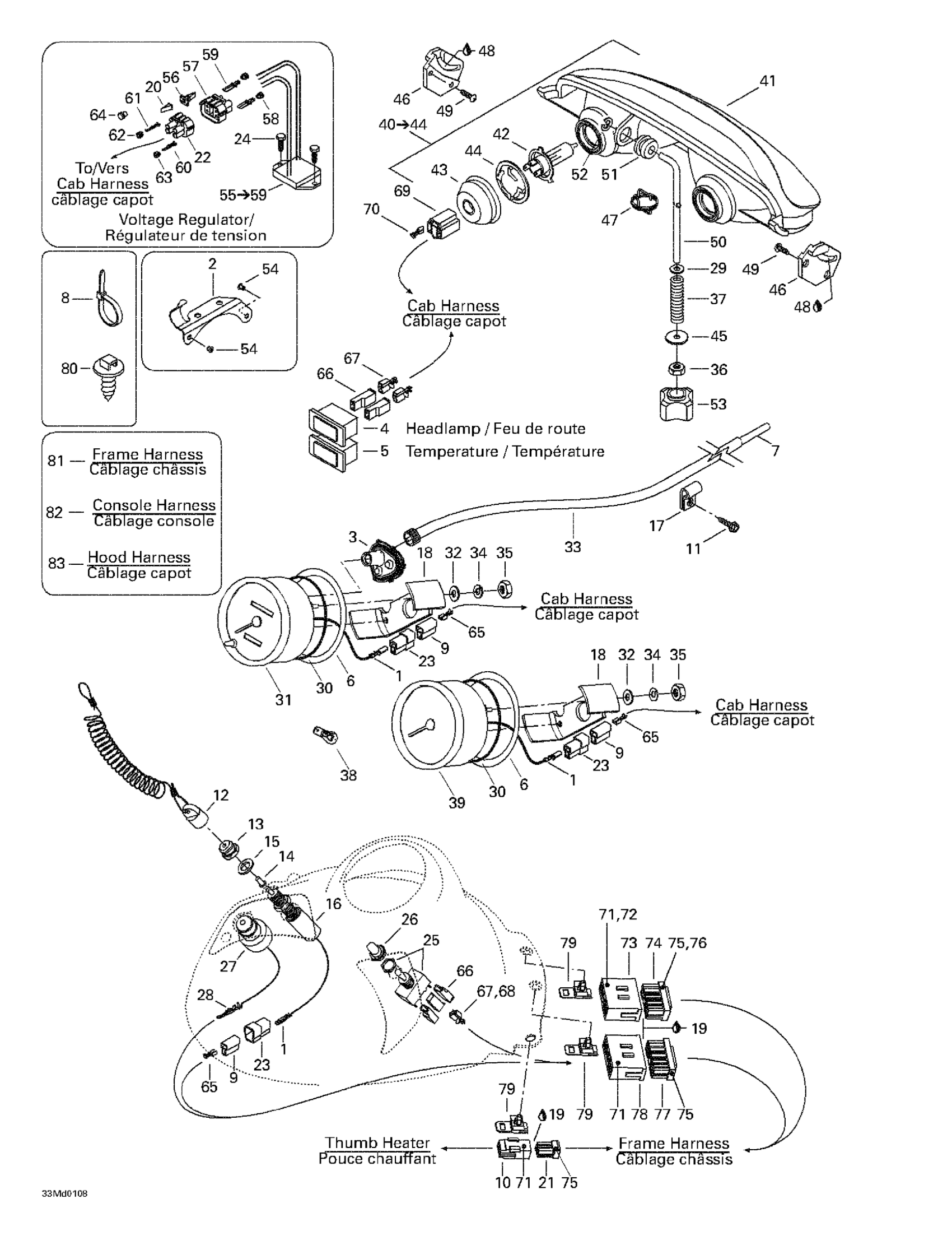

2001 Ski-Doo MX Z X 440 LC Electrical System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MALE TERMINAL - Call your local BRP dealership

409210000

—
Out of stock

2

Cable Support

515175254

—
Out of stock

3

Drive Angle

515175400

—
Out of stock

5

Pilot Lamp (Temperature) | Formula Deluxe 500. Formula Deluxe 600.

515175593

—
Out of stock

6

Washer

517258500

—
Out of stock

7

1

$9.15

In stock

8

Tie Wrap 142 mm

293750002

1

$0.88

In stock

Tie-Rap 173 mm

293750009

1
Out of stock

Tie Wrap 368 mm

293750008

1
Out of stock

Tie-Rap 180 mm

414115200

1
Out of stock

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

—
Out of stock

9

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

—
Out of stock

10

Male Housing, 3 Circuits

515175494

1
Out of stock

11

Not Available As Spare Part - Friction Washer

—
Out of stock

12

1

$37.66

In stock

13

Switch Nut

415073500

—
Out of stock

14

Plunger Cap

570151100

1
Out of stock

15

Flat Washer 10 mm

234001410

1

$0.98

In stock

16

Brake Switch

515175653

1
Out of stock

17

Open Clamp

414176000

3
Out of stock

18

Case Holder

414806500

—
Out of stock

19

1

$37.66

In stock

20

Male Lock

409013100

—
Out of stock

21

Female Housing, 3 Circuits

515175495

1
Out of stock

22

Male Terminal Housing (4 circuits)

409207700

—
Out of stock

23

MALE HOUSING - Call your local BRP dealership

409204500

—
Out of stock

24

Hex. Flange Screw M6 X 16

210261650

2
Out of stock

25

1

$34.58

In stock

26

Switch Cover

515175281

1
Out of stock

27

DESS SWITCH - Call your local BRP dealership

515175145

1
Out of stock

28

Male Terminal

515175232

3
Out of stock

29

Flat Washer 6 mm

234061410

1

$1.04

In stock

30

O-Ring

414807100

—
Out of stock

31

Speedometer, Kmh

515175335

—
Out of stock

Speedometer, Mph

515175336

—
Out of stock

32

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

—
Out of stock

33

Speedometer Cable

415101500

—
Out of stock

34

Lock Washer

414806700

—
Out of stock

35

Nut

414806900

—
Out of stock

36

Elastic Stop Nut M6

232561414

1
Out of stock

37

—

$3.17

In stock

38

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

—
Out of stock

39

Tachometer

515175341

—
Out of stock

40

1

$288.43

In stock

41

Not Available As Spare Part - Friction Washer

—
Out of stock

42

2

$23.05

In stock

43

PROTECTOR CAP - Call your local BRP dealership

410607100

—
Out of stock

44

—

$9.97

In stock

45

Washer

224060251

1

$0.57

In stock

46

RH Support

517289300

—
Out of stock

LH Support

517289400

—
Out of stock

47

—

$13.05

In stock

48

Grease Tube Lmz, 400 G

413707500

—
Out of stock

49

Headlamp Screw

732601315

—
Out of stock

50

ADJUSTER ROD - Call your local BRP dealership

517295800

—
Out of stock

51

—

$3.97

In stock

52

Push Nut

732610072

1
Out of stock

53

—

$5.57

In stock

54

Pop Rivet 3/16"

390402200

2
Out of stock

55

Voltage Regulator | Includes 48 - 52.

515175491

—
Out of stock

56

Female Lock

409013400

—
Out of stock

57

Female Terminal Housing (4 circuits)

409208000

—
Out of stock

58

—

$2.37

In stock

59

FEMALE TERMINAL - Call your local BRP dealership

278000994

—
Out of stock

60

Male Terminal

409013000

—
Out of stock

61

Male Terminal

409010900

—
Out of stock

62

Seal

409208300

—
Out of stock

63

—

$2.37

In stock

64

—

$9.20

In stock

65

Female Terminal

561503100

1
Out of stock

66

Female Terminal Housing, 1 Circuit

409010400

1
Out of stock

67

Female Terminal

409010100

1
Out of stock

68

—

$5.35

In stock

69

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

—
Out of stock

70

FEMALE TERMINAL - Call your local BRP dealership

515175320

—
Out of stock

71

Male Terminal

515175232

1
Out of stock

72

MALE TERMINAL - Call your local BRP dealership

515175273

—
Out of stock

73

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

—
Out of stock

74

1

$12.88

In stock

75

Female Terminal

515175231

1
Out of stock

76

Female Terminal

515175282

1
Out of stock

77

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

—
Out of stock

79

Housing Support

515175283

3
Out of stock

80

Mount Dart

293730040

1
Out of stock

81

Frame Harness

515175444

—
Out of stock

82

Console Harness

515175309

—
Out of stock

83

Hood Harness

515175463

—
Out of stock
