2001 Ski-Doo MX Z X 440 LC Ignition Diagram

← All diagrams

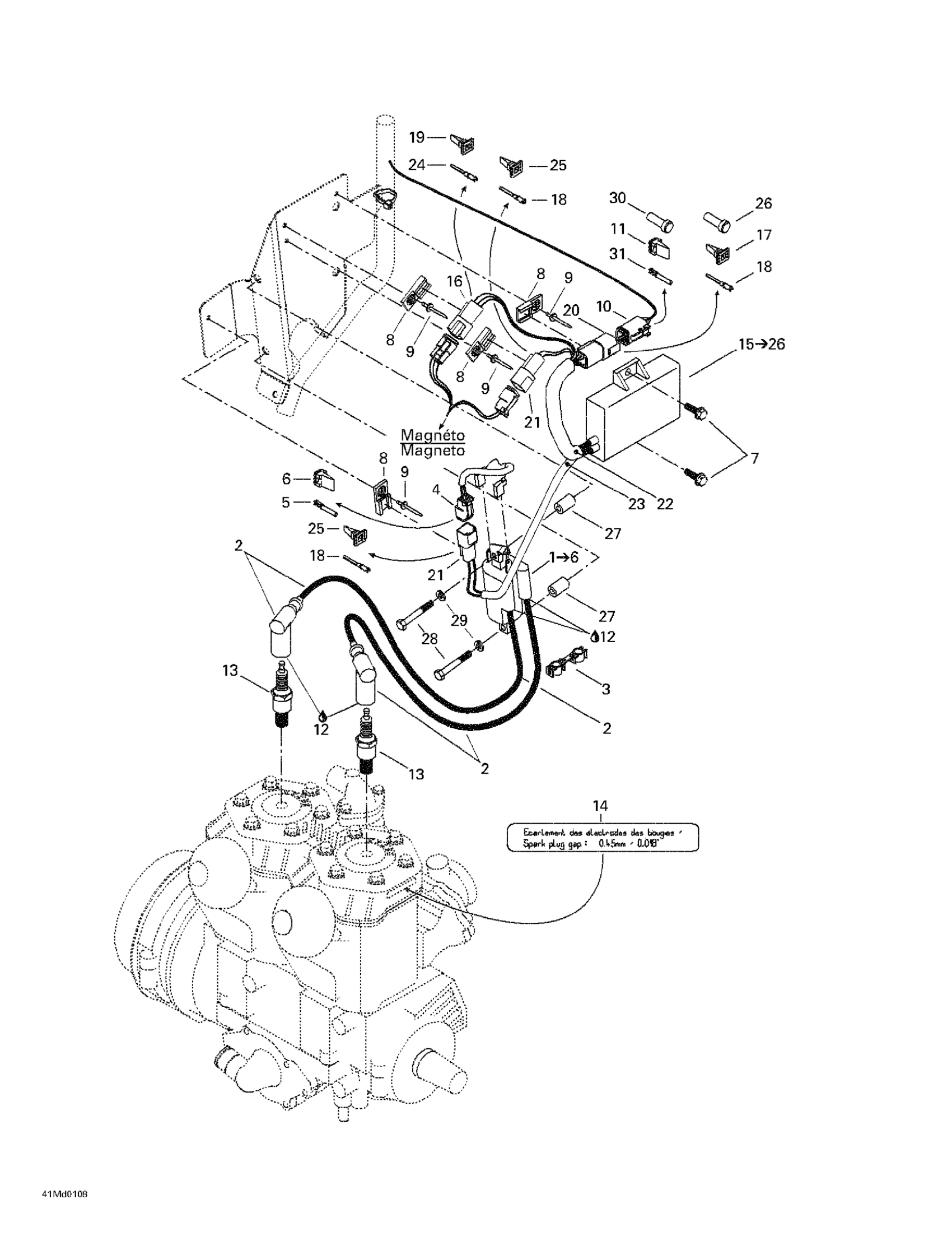

Find the part on the Ignition diagram for your 2001 Ski-Doo MX Z X 440 LC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Ski-Doo MX Z X 440 LC Ignition Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Ignition Coil

512059363

—
Out of stock

2

Cable Ass'y 515 mm

512059406

—
Out of stock

Cable Ass'y 595 mm

512059407

—
Out of stock

3

Plastic Clip, Spark Plug Wire

410914600

1
Out of stock

4

Female Connector, 2 Circuits

409207300

1
Out of stock

5

Female Terminal

278000632

2
Out of stock

6

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

—
Out of stock

7

Hex. Flange Screw M6 X 20

207662044

2
Out of stock

8

Clip

270000141

4
Out of stock

9

Not Available As Spare Part - Friction Washer

—
Out of stock

10

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

1
Out of stock

11

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

—
Out of stock

12

1

$37.66

In stock

14

Spark Plug Decal

516000986

—
Out of stock

15

Calibration Module | Includes 15 - 26.

512059433

—
Out of stock

16

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

—
Out of stock

17

1

$3.02

In stock

18

Male Terminal

278000631

1

$4.12

In stock

19

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

—
Out of stock

20

Male Terminal Housing, 6 Circuits

710001539

1
Out of stock

21

Male Housing, 2 Circuits

409206900

2
Out of stock

22

1

$2.20

In stock

23

Tubing 6 Mm 3000Mm Long

219704425

1
Out of stock

24

MALE TERMINAL - Call your local BRP dealership

409014800

—
Out of stock

25

2

$3.02

In stock

26

PLUG - Call your local BRP dealership

515175303

—
Out of stock

27

Spacer

517203200

2
Out of stock

28

Hex. Screw M6 X 45

207064544

2

$2.02

In stock

29

2

$0.52

In stock

30

Sealing Cap

293000052

1
Out of stock

31

Female Terminal

278000632

1
Out of stock
