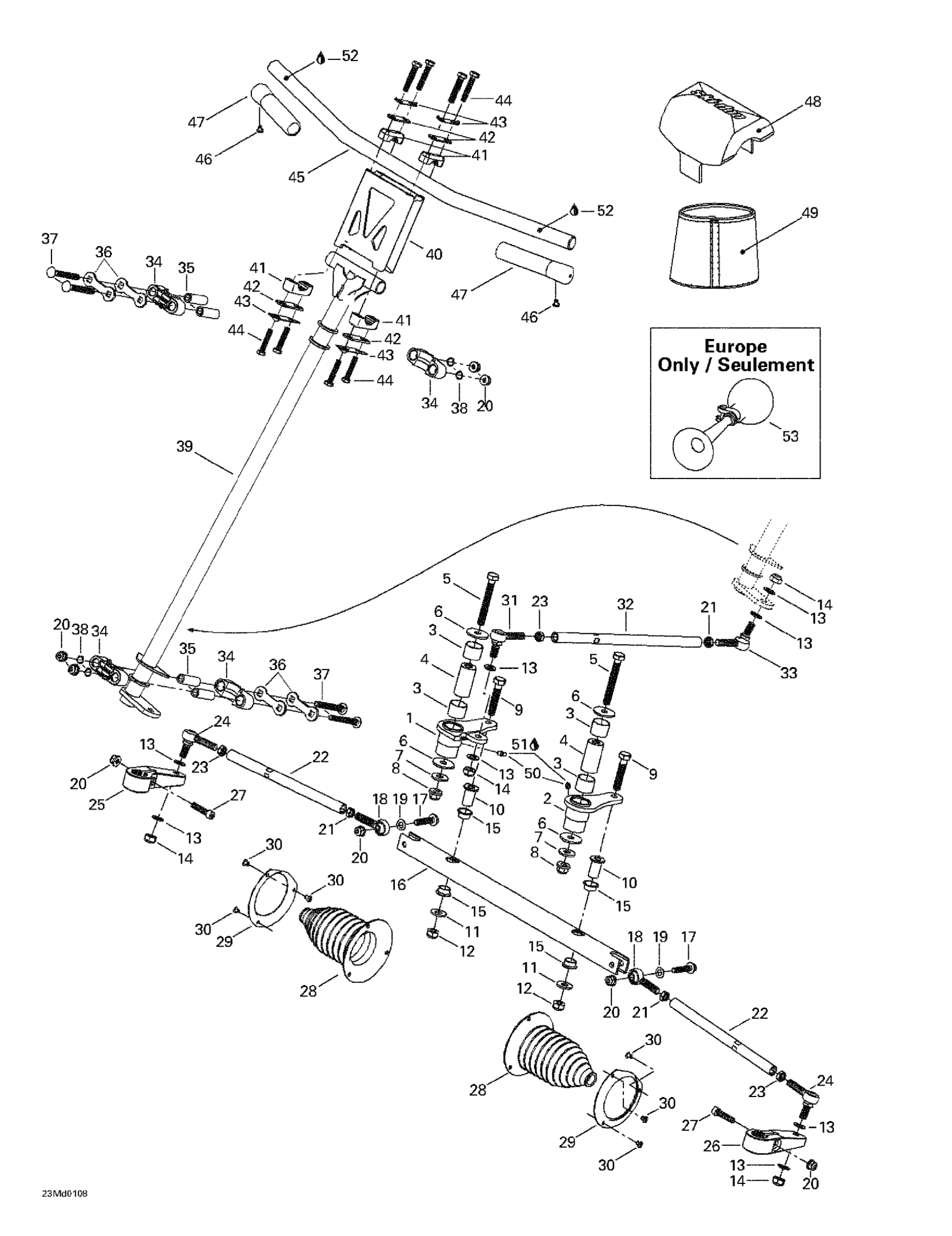

Ski-Doo MX Z X 440 LC, 2001 Steering System Diagram

#

Description
Price

1

RH Swivel Arm

506146600

Unavailable

2

LH Swivel Arm

506146700

Unavailable

3

BUSHING SWIVEL - Call your local BRP dealership

506149900

Unavailable

4

PIVOT SWIVEL - Call your local BRP dealership

506150100

Unavailable

5

Hex. Screw M10 X 80

207008086

$3.19

6

Washer 10 mm

506150000

$2.55

7

Flat Washer M10 | 4X4

250200014

$1.34

8

Flange Nut M10

732610084

$6.30

9

Hex. Screw M10 X 55

207005544

$2.12

10

BAR PIVOT - Call your local BRP dealership

506147300

Unavailable

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.63

13

Washer

503175800

$3.16

14

Elastic Flange Nut M10

232501416

$1.43

15

Swivel Bushing

503191555

$5.54

16

Bar-Swivel

506147000

Unavailable

17

Hex. Flange Screw M8 X 40

207684044

$1.43

18

LH Ball Joint

506151101

Unavailable

19

Washer

506151252

$3.01

20

Hex. Flange Elastic Nut M8

233281414

$1.31

21

LH Threaded Hex. Jam Nut M10

250100016

$0.70

22

Tie-Rod

506151190

Unavailable

23

RH Threaded Hex. Jam Nut M10

732610010

$0.70

24

Ball Joint

506151491

$41.01

25

RH STEERING ARM - Call your local BRP dealership

506145800

Unavailable

26

LH STEERING ARM - Call your local BRP dealership

506145900

Unavailable

27

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

28

TIE-ROD CAP - Call your local BRP dealership

570070500

Unavailable

29

RETAINER RING - Call your local BRP dealership

506151100

Unavailable

30

Pop Rivet 3/16"

390402300

$0.73

31

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

32

Inside Tie-Rod

506150300

Unavailable

33

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

34

Housing Half

506150400

$7.09

35

Housing Bushing

506150500

$7.27

36

Stopper Plate

506150600

$4.03

37

Carriage Bolt M8 X 70

207787044

$1.27

38

O-RING - Call your local BRP dealership

506151140

Unavailable

39

Main Tube

506151395

Unavailable

40

Extension

506151428

Unavailable

Steering Extension (105 mm)

506151432

Unavailable

Steering Extension (80 mm)

506151413

Unavailable

41

Steering Support

709400919

$20.12

42

Stiffner

709400509

$4.30

43

Lock Tab

506151382

Unavailable

44

Hex. Screw M8 X 40

207084044

$1.06

45

Handle Bar

506151406

Unavailable

46

Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.

390403600

Unavailable

47

Grip | WAKE This part replaces M5340464.

506152483

$11.31

48

Steering Pad

506151424

Unavailable

49

Console Cover

506151436

Unavailable

50

Grease Fitting

408200700

$3.21

51

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

52

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

53

Horn

549011291

$34.30
