2002 Ski-Doo MX Z 800 Rev Electrical System Diagram

← All diagrams

Find the part on the Electrical System diagram for your 2002 Ski-Doo MX Z 800 Rev, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

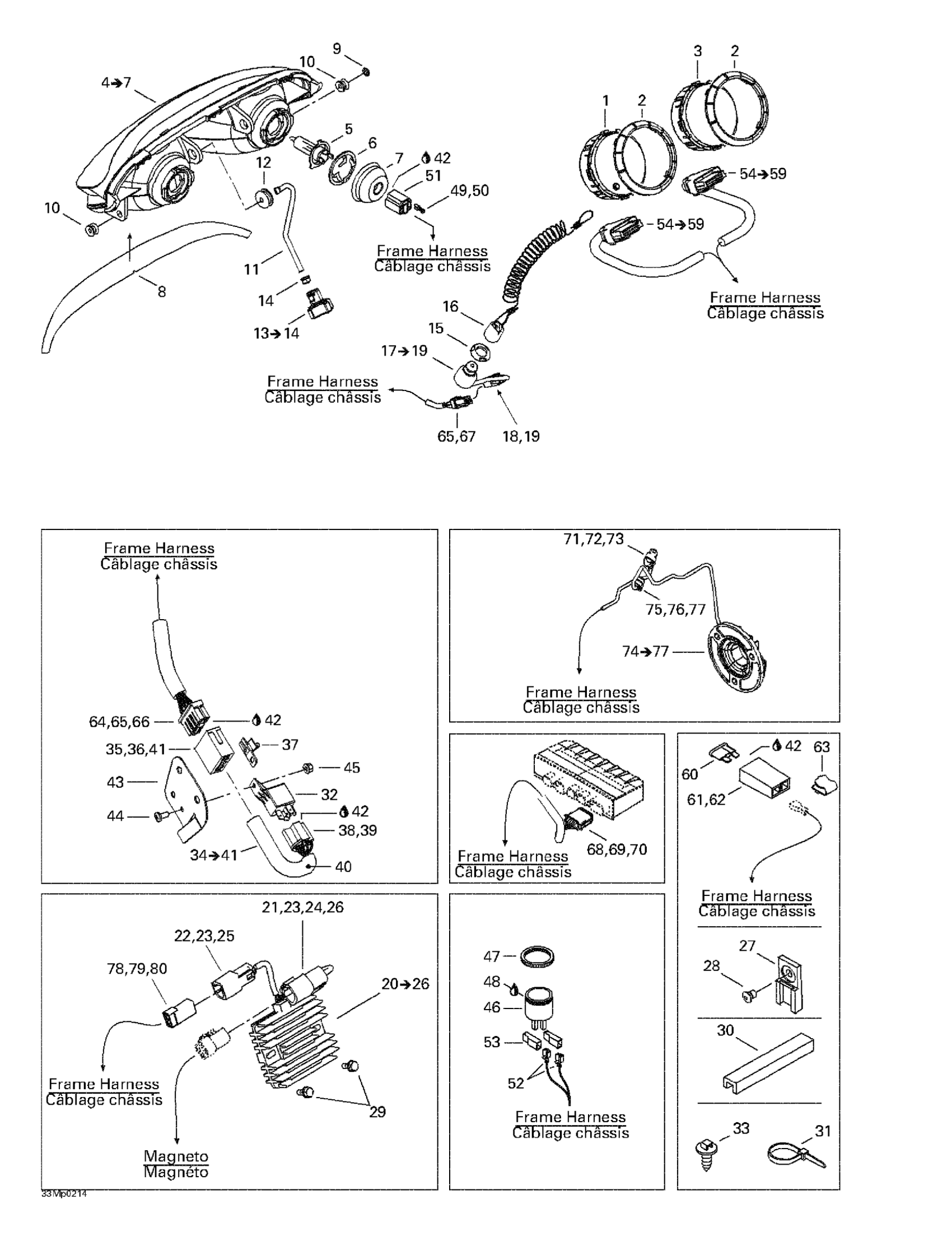

2002 Ski-Doo MX Z 800 Rev Electrical System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Speedometer

515175449

—
Out of stock

2

Gauge Ring This part replaces 515176242.

515179005

2
Out of stock

3

Tachometer

515175526

—
Out of stock

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

1
Out of stock

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

2
Out of stock

6

BULB HOLDER - Call your local BRP dealership

410608300

—
Out of stock

7

PROTECTOR CAP - Call your local BRP dealership

410607100

—
Out of stock

8

HEADLAMP DECAL - Call your local BRP dealership

516001328

—
Out of stock

9

Push Nut

732610072

1
Out of stock

10

HEADLAMP BUSHING - Call your local BRP dealership

515175760

—
Out of stock

11

ADJUSTER ROD - Call your local BRP dealership

515175521

—
Out of stock

12

—

$3.97

In stock

13

HANDLE - Call your local BRP dealership

515175975

—
Out of stock

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

1
Out of stock

15

Safety Nut (DESS Switch)

278002963

1
Out of stock

16

DESS

515178284

1
Out of stock

17

DESS Switch

515177249

1
Out of stock

18

Male Terminal

515175232

3
Out of stock

19

1

$15.35

In stock

20

Voltage Regulator

515175968

1
Out of stock

21

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

—
Out of stock

22

1

$29.97

In stock

23

Not Available As Spare Part - Friction Washer

—
Out of stock

24

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

—
Out of stock

25

1

$3.02

In stock

26

Sealing Cap

293000052

1
Out of stock

27

Clip

270000141

3
Out of stock

28

Pop Rivet 3/16"

390402200

3
Out of stock

29

Hexagonal Head Screw

210262050

2
Out of stock

30

1

$15.03

In stock

31

Tie Wrap 368 mm

293750008

1

$0.85

In stock

Tie-Rap 180 mm

414115200

1
Out of stock

32

Relay | DS 650 X

710010053

1
Out of stock

33

Mount Dart

293730040

1
Out of stock

34

Configuration Harness | Includes items 25 to 32 / Manual starting

515175722

—
Out of stock

35

Male Terminal

515175232

5
Out of stock

36

MALE TERMINAL - Call your local BRP dealership

515175273

—
Out of stock

37

Housing Support

515175283

1
Out of stock

38

1

$8.98

In stock

39

Female Terminal

561503100

5
Out of stock

40

1

$9.40

In stock

41

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

—
Out of stock

42

1

$37.66

In stock

43

Harness Support

515175800

—
Out of stock

44

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

—
Out of stock

45

Hex. Flange Elastic Nut M5

233251414

1
Out of stock

46

HORN - Call your local BRP dealership

515176035

—
Out of stock

47

—

$3.57

In stock

48

Silicone Sealant 51388, 300 ml

296000309

1
Out of stock

49

FEMALE TERMINAL - Call your local BRP dealership

515175320

—
Out of stock

50

FEMALE TERMINAL - Call your local BRP dealership

515175321

—
Out of stock

51

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

—
Out of stock

52

Female Terminal

409010100

1

$5.46

In stock

53

2

$7.48

In stock

54

Plug

515175812

1
Out of stock

55

Female Housing, 24 Circuits

515175801

2
Out of stock

56

Retainer Block

515175802

2
Out of stock

57

Wire Seal

515175803

1
Out of stock

58

—

$6.66

In stock

59

Female Terminal

515175806

1

$0.81

In stock

60

Fuse, 20 Amperes

409003900

1
Out of stock

61

Female Terminal

409011600

1

$5.11

In stock

62

Fuse Holder

409004000

1
Out of stock

63

CLIP - Call your local BRP dealership

409014200

—
Out of stock

64

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

—
Out of stock

65

Female Terminal

515175231

1
Out of stock

66

Female Terminal

515175282

1
Out of stock

67

1

$15.35

In stock

68

FEMALE TERMINAL HOUSING, 12 CIRCUITS - Call your local BRP dealership

515175704

—
Out of stock

69

Not Available As Spare Part - Friction Washer

—
Out of stock

70

Female Terminal

278000632

1
Out of stock

71

Male Lock, 3 Circuits

409207600

1
Out of stock

72

Male Housing

515175666

1
Out of stock

73

Male Terminal

278000631

1

$4.12

In stock

74

Speed Sensor Flange

504152034

—
Out of stock

75

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

—
Out of stock

76

Female Lock, 3 Circuits

515175676

1
Out of stock

77

Female Terminal

278000632

3
Out of stock

78

Female Terminal

515175567

1
Out of stock

79

Female Terminal Housing, 2 Circuits

278001673

1
Out of stock

80

Female Lock, 2 Circuits

278001671

1
Out of stock
