2023 Kawasaki Mule SX™ 4x4 FE SUN TOP Diagram

← All diagrams

Find the part on the SUN TOP diagram for your 2023 Kawasaki Mule SX™ 4x4 FE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

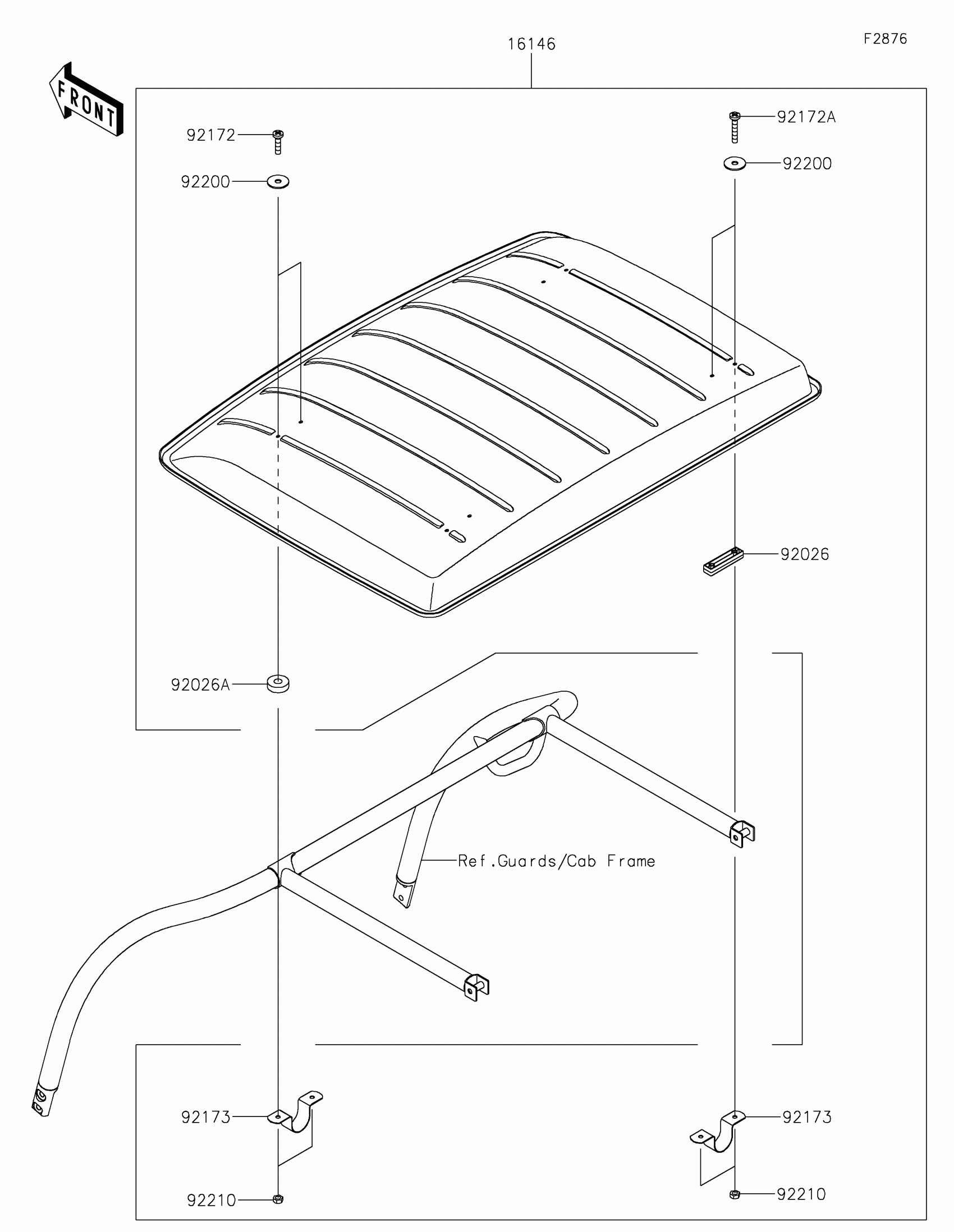

2023 Kawasaki Mule SX™ 4x4 FE SUN TOP Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16146

COVER-ASSY,SUN TOP

16146-0742

1
Out of stock

92026

SPACER,BLOCK

92026-0763

1
Out of stock

92026A

SPACER,9.5X25.4X7.5

92026-0764

1
Out of stock

92172

SCREW,6X25.4

92172-0873

1
Out of stock

92172A

SCREW,6X35.1

92172-0874

1
Out of stock

92173

CLAMP

92173-1200

1
Out of stock

92200

WASHER,7.1X25.4X1.6

92200-0912

1
Out of stock

92210

NUT,6MM

92210-0886

1
Out of stock
