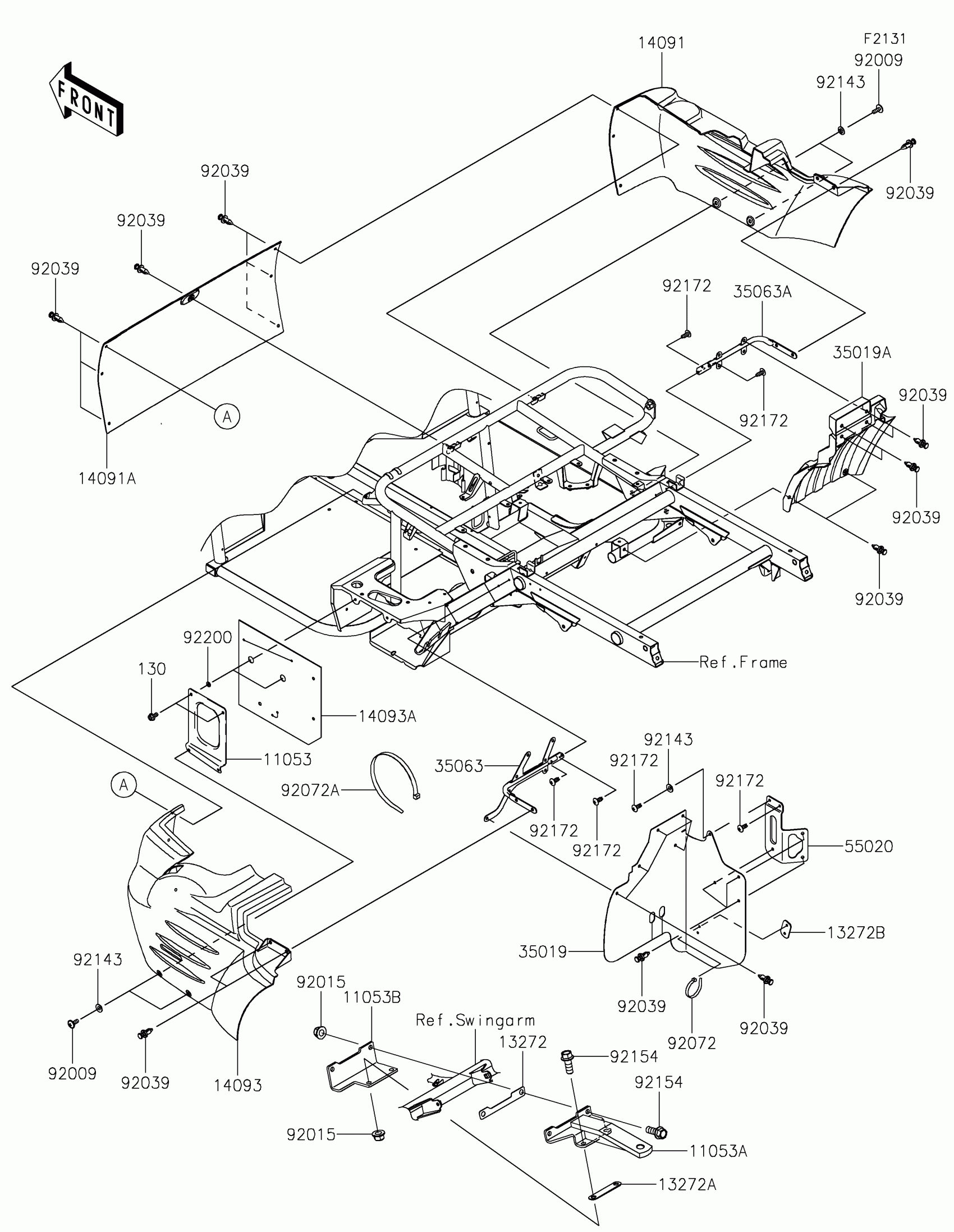

Kawasaki MULE SX™ 4x4 FE Frame Fittings(Rear) Diagram

Description

Price

11053

BRACKET

11053-0857

$50.18

11053A

BRACKET,TRAILER HITCH

11053-0926

$164.21

11053B

BRACKET

11053-0928

$63.24

13272

PLATE,TOP SPACER

13272-2117

$9.13

13272A

PLATE,BOTOM SPACER

13272-2118

$7.35

13272B

PLATE

13272-7516

$7.35

14091

COVER,REAR SIDE,RH,F.BLACK

14091-0224-6Z

$59.20

14091A

COVER,UNDER SEAT,CNT,F.BLACK

14091-0341-6Z

$37.59

14093

COVER,REAR SIDE,LH,F.BLACK

14093-0500-6Z

$59.20

14093A

COVER,BATTERY

14093-0750

$26.24

35019

FLAP,SIDE COVER,LH

35019-0610

$49.20

35019A

FLAP,SIDE COVER,RH

35019-0612

$89.68

35063

STAY,LH

35063-0784

$74.00

35063A

STAY,RH

35063-1333

$74.00

55020

GUARD,COOLING FAN

55020-7527

$15.04

92009

SCREW,6X16

92009-1621

$3.60

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92039

RIVET

92039-0776

$1.49

92072

BAND,L=188

92072-1239

$1.73

92072A

BAND,L=368.3

92072-3872

$1.59

92143

COLLAR

92143-1087

$4.31

92154

BOLT,FLANGED,12X32

92154-2103

$7.84

92172

SCREW,TAPPING,6X16

92172-0739

$1.49

92200

WASHER,7.2X14.3X1.6

92200-2207

$0.51

130

BOLT-FLANGED,6X12

130BA0612

$1.72
