2023 Kawasaki Mule SX™ 4x4 FE Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2023 Kawasaki Mule SX™ 4x4 FE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

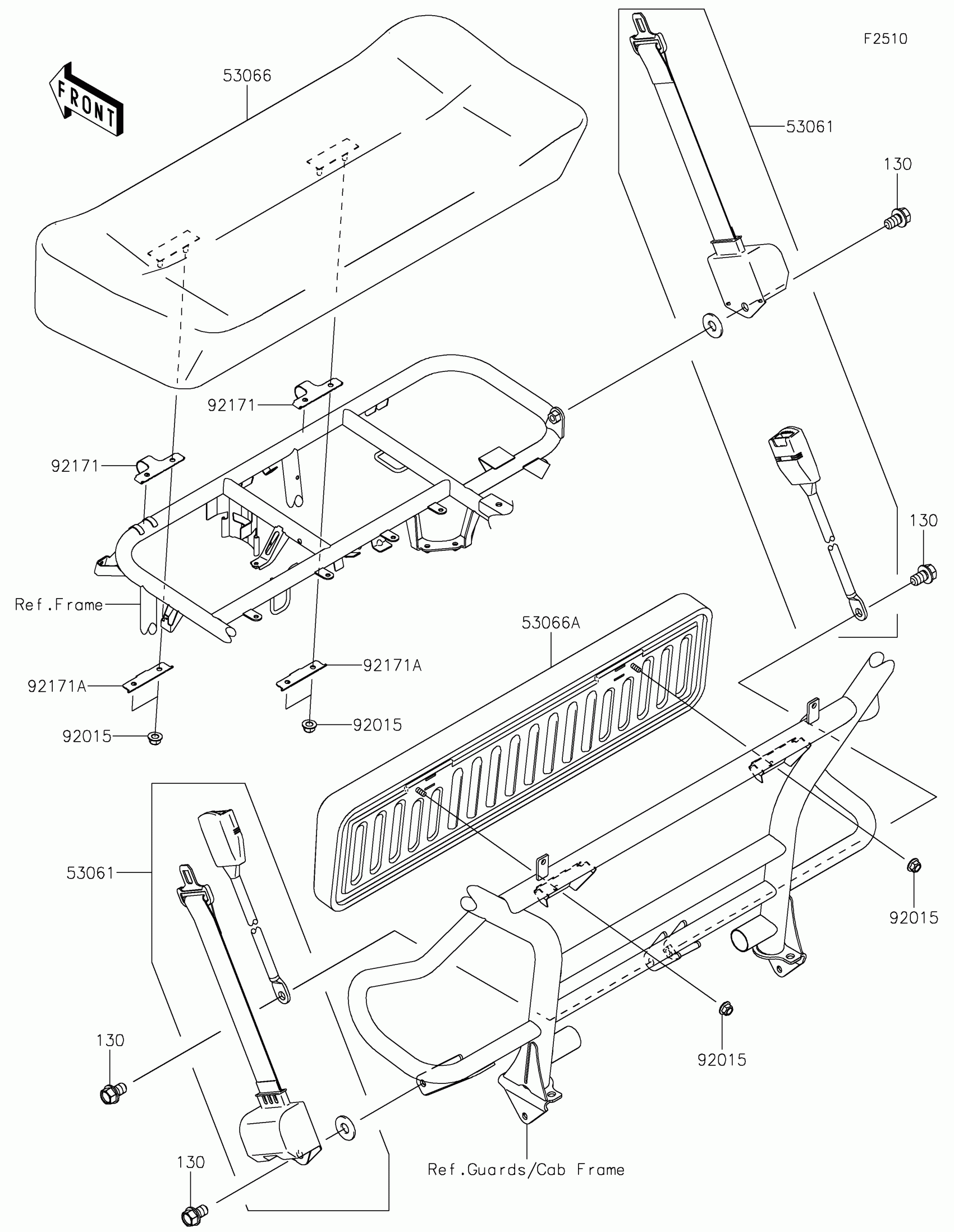

2023 Kawasaki Mule SX™ 4x4 FE Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

53061

BELT-SEAT

53061-0349

1
Out of stock

53066

SEAT-ASSY,CUSHION,BLACK

53066-0848-MA

1
Out of stock

53066A

SEAT-ASSY,BACK,BLACK

53066-0849-MA

1
Out of stock

92015

NUT,FLANGED,LOCK,8MM

92015-1668

1
Out of stock

92171

CLAMP

92171-0441

1

$9.04

In stock

92171A

CLAMP

92171-0442

1

$10.92

In stock

130

BOLT-FLANGED,12X20

130BA1220

1

$2.97

In stock
