2019 Kawasaki Mule PRO-MX™ Belt Converter Diagram

← All diagrams

Find the part on the Belt Converter diagram for your 2019 Kawasaki Mule PRO-MX™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

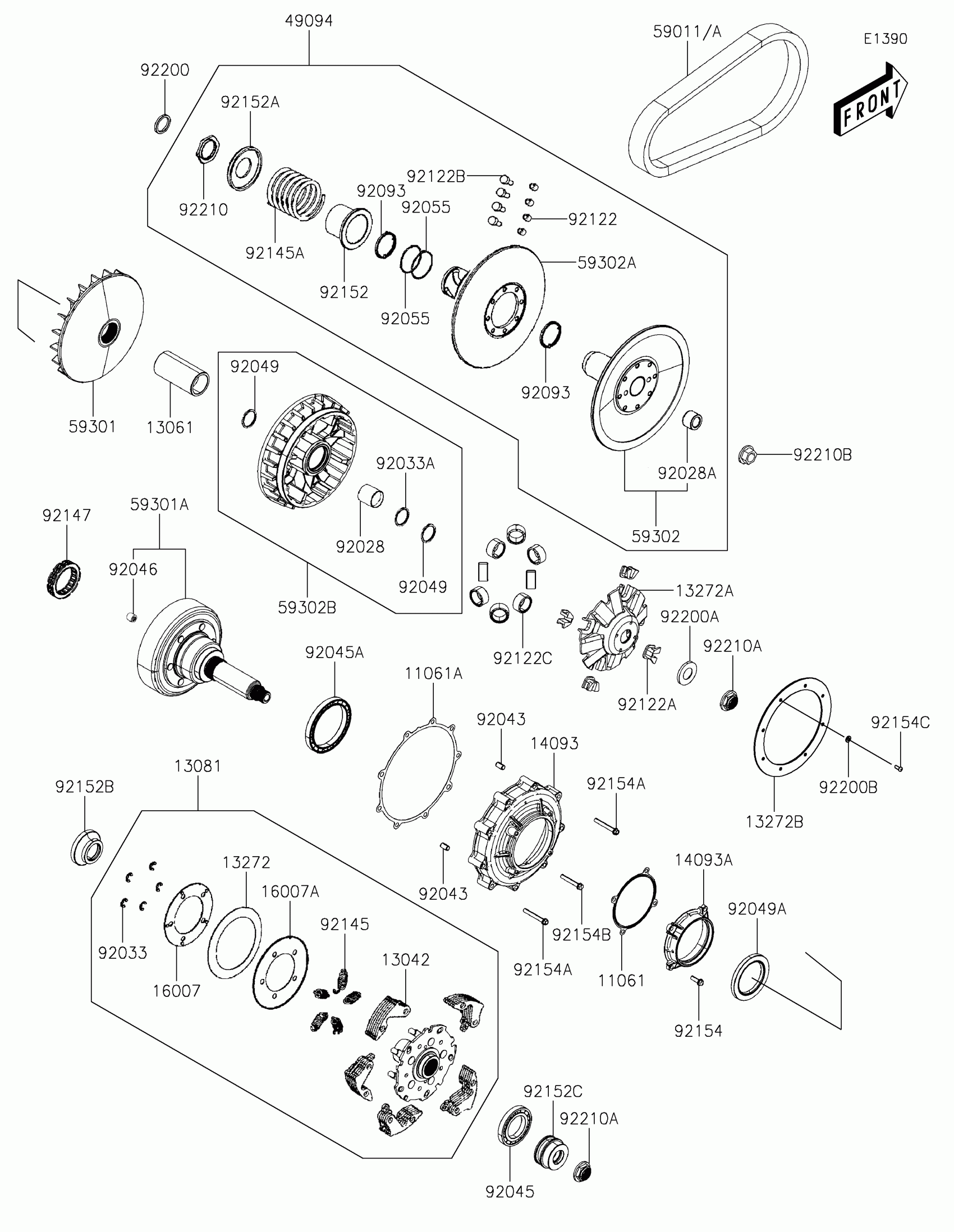

2019 Kawasaki Mule PRO-MX™ Belt Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,PRIMARY SHAFT COVER

11061-Y059

1
Out of stock

11061A

GASKET,CLUTCH COVER

11061-Y060

1
Out of stock

13042

WEIGHT,CLUTCH

13042-Y008

1
Out of stock

13061

BOSS,DRIVE FACE

13061-Y004

1
Out of stock

13081

CLUTCH-ASSY,PRIMARY

13081-Y001

1
Out of stock

13272

PLATE,ADJUSTER SPRING

13272-Y027

1
Out of stock

13272A

PLATE,RAMP

13272-Y028

1
Out of stock

13272B

PLATE

13272-Y039

1
Out of stock

14093

COVER,CLUTCH

14093-Y004

1
Out of stock

14093A

COVER,PRIMARY SHAFT

14093-Y005

1
Out of stock

16007

SEAT-SPRING

16007-Y007

1
Out of stock

16007A

SEAT-SPRING

16007-Y008

1
Out of stock

49094

CONVERTER-ASSY-DRIVEN

49094-Y007

1
Out of stock

59011

BELT,DRIVE(STD)

59011-Y006

1
Out of stock

59011A

BELT,DRIVE(OPTION)

59011-Y010

1
Out of stock

59301

SHEAVE-MOVABLE

59301-Y006

1
Out of stock

59301A

SHEAVE-MOVABLE,PRIMARY DRIVE

59301-Y007

1
Out of stock

59302

SHEAVE-COMP,MOVABLE

59302-Y017

1
Out of stock

59302A

SHEAVE-COMP

59302-Y018

1
Out of stock

59302B

SHEAVE-COMP

59302-Y019

1
Out of stock

92028

BUSHING,42X47X45.6

92028-Y002

1
Out of stock

92028A

BUSHING

92028-Y003

1
Out of stock

92033

RING-SNAP,7MM

92033-Y042

1
Out of stock

92033A

RING-SNAP,46.5MM

92033-Y043

1
Out of stock

92043

PIN,8X14

92043-Y012

1
Out of stock

92045

BEARING-BALL,16008

92045-Y046

1
Out of stock

92045A

BEARING-BALL,6815

92045-Y052

1
Out of stock

92046

BEARING-NEEDLE,14X22X20

92046-Y010

1
Out of stock

92049

SEAL-OIL,42X51X4

92049-Y043

1
Out of stock

92049A

SEAL-OIL,6.5X80X7

92049-Y047

1
Out of stock

92055

RING-O

92055-Y065

1
Out of stock

92093

SEAL,DRIVEN FACE,40.2X47X4

92093-Y045

1
Out of stock

92122

ROLLER,GUIDE

92122-Y008

1
Out of stock

92122A

ROLLER

92122-Y018

1
Out of stock

92122B

ROLLER,GUIDE

92122-Y020

1
Out of stock

92122C

ROLLER,COMP,WEIGHT

92122-Y022

1
Out of stock

92145

SPRING,CLUTCH

92145-Y058

1
Out of stock

92145A

SPRING,DRIVEN FACE

92145-Y059

1
Out of stock

92147

BEARING,ONE WAY

92147-Y001

1
Out of stock

92152

COLLAR,SEAL

92152-Y058

1
Out of stock

92152A

COLLAR,SPRING

92152-Y059

1
Out of stock

92152B

COLLAR,CLUTCH

92152-Y069

1
Out of stock

92152C

COLLAR,PRIMARY DRIVE SHAFT

92152-Y070

1
Out of stock

92154

BOLT,FLANGE,6X18

92154-Y132

1
Out of stock

92154A

BOLT,FLANGE,6X45

92154-Y135

1
Out of stock

92154B

BOLT,FLANGE,6X40

92154-Y209

1
Out of stock

92154C

BOLT,4X12

92154-Y224

1
Out of stock

92200

WASHER,25X33X4

92200-Y073

1
Out of stock

92200A

WASHER,THRUST,20MM

92200-Y087

1
Out of stock

92200B

WASHER

92200-Y103

1
Out of stock

92210

NUT,SPECIAL,36MM

92210-Y082

1
Out of stock

92210A

NUT,FLANGE,20MM

92210-Y083

1
Out of stock

92210B

NUT

92210-Y085

1
Out of stock
