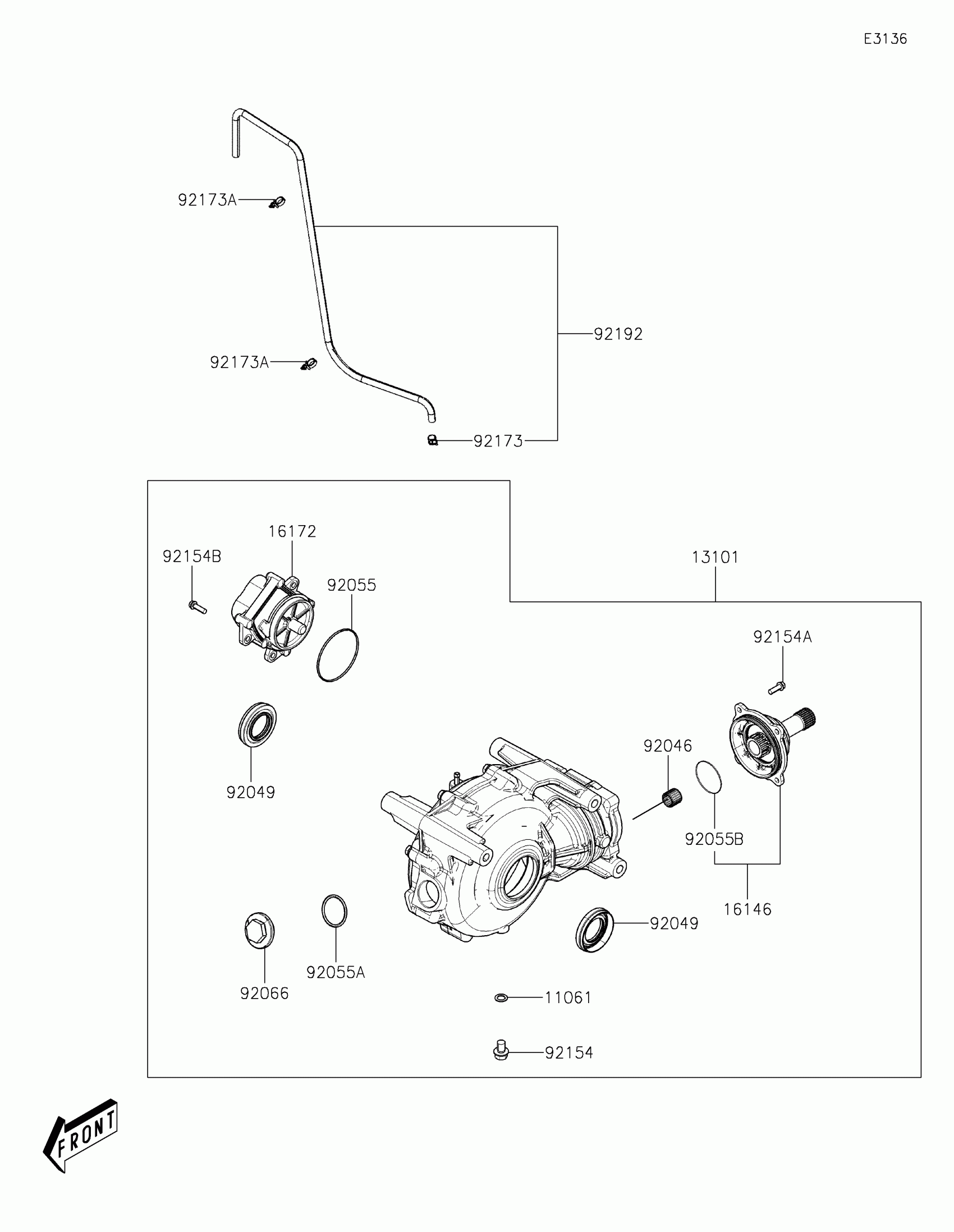

Kawasaki MULE PRO-MX™ Drive Shaft-Front Diagram

Description

Price

11061

GASKET

11061-Y067

$4.92

13101

GEAR-ASSY,FR

13101-Y004

$1,317.48

16146

COVER-ASSY

16146-Y002

$410.05

16172

ACTUATOR

16172-0030

$652.25

92046

BEARING-NEEDLE,16X20X16.8

92046-0630

$22.00

92049

SEAL-OIL

92049-0749

$12.00

92055

RING-O

92055-Y070

$9.27

92055A

RING-O

92055-Y071

$2.98

92055B

RING-O

92055-Y073

$16.08

92066

PLUG

92066-Y022

$45.14

92154

BOLT,FLANGE,10X14

92154-Y219

$10.41

92154A

BOLT,FLANGE,6X18

92154-Y222

$2.27

92154B

BOLT,FLANGE,6X20

92154-Y223

$4.75

92173

CLAMP,10.5

92173-Y023

$3.27

92173A

CLAMP

92173-Y078

$1.81

92192

TUBE,DIFF CASE

92192-Y071

$21.83
