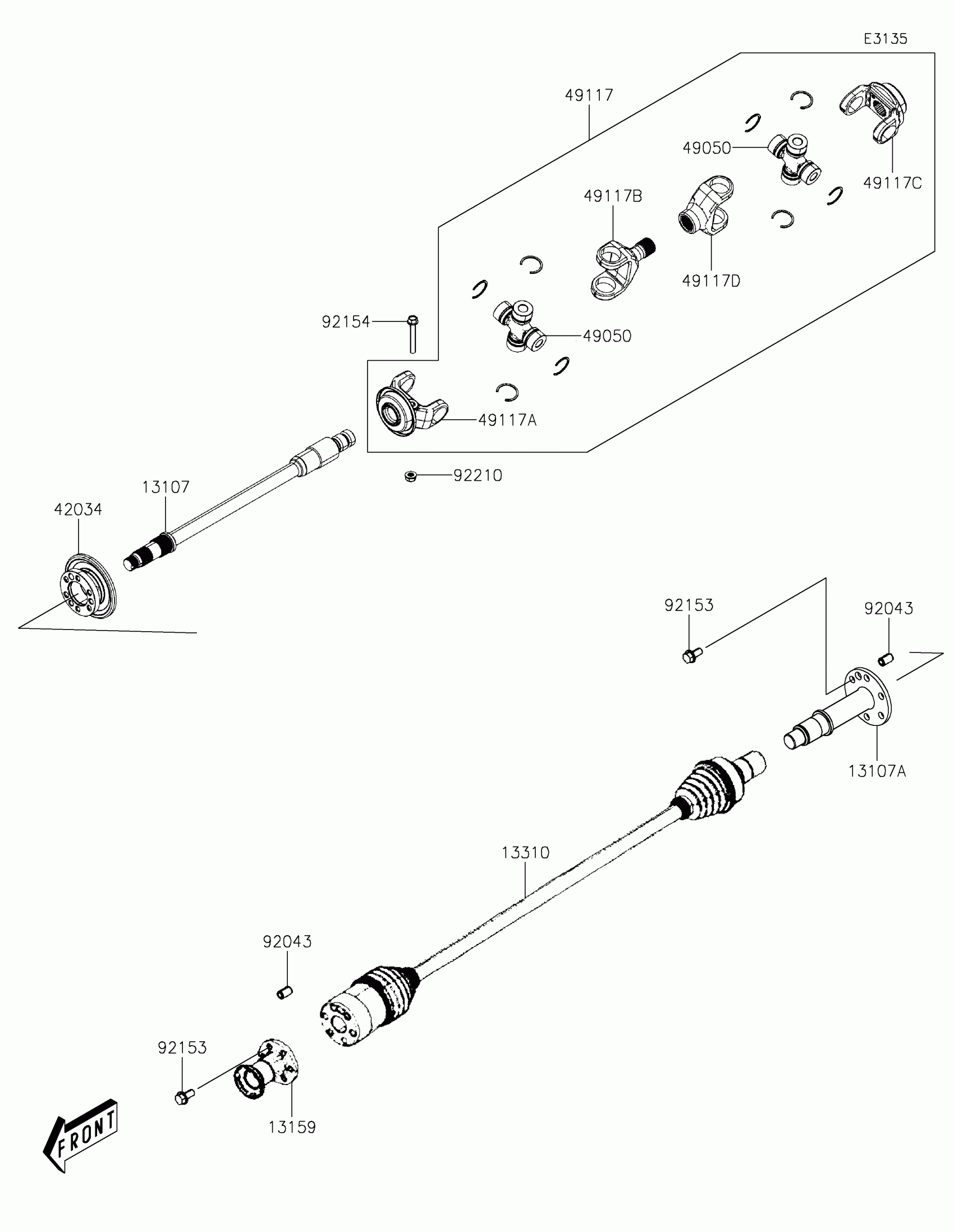

Kawasaki MULE PRO-MX™ Drive Shaft-Propeller Diagram

Description

Price

13107

SHAFT,FINAL

13107-Y027

$156.99

13107A

SHAFT

13107-Y030

$136.67

13159

CONNECTOR,FR PROPELLER SHAFT

13159-Y002

$218.18

13310

SHAFT-ASSY,PROPELLER

13310-Y003

$482.23

42034

COUPLING

42034-Y003

$185.28

49050

SPIDER

49050-Y001

$188.11

49117

YOKE,DRIVE FRONT ASSY

49117-Y001

$429.61

49117A

YOKE

49117-Y002

$125.10

49117B

YOKE

49117-Y003

$79.52

49117C

YOKE

49117-Y004

$101.66

49117D

YOKE

49117-Y005

$84.96

92043

PIN,10X16

92043-Y046

$4.97

92153

BOLT,FLANGE,8X16

92153-Y032

$1.14

92154

BOLT,SPECIAL,8X52

92154-Y168

$2.58

92210

NUT,8MM

92210-Y076

$0.73
