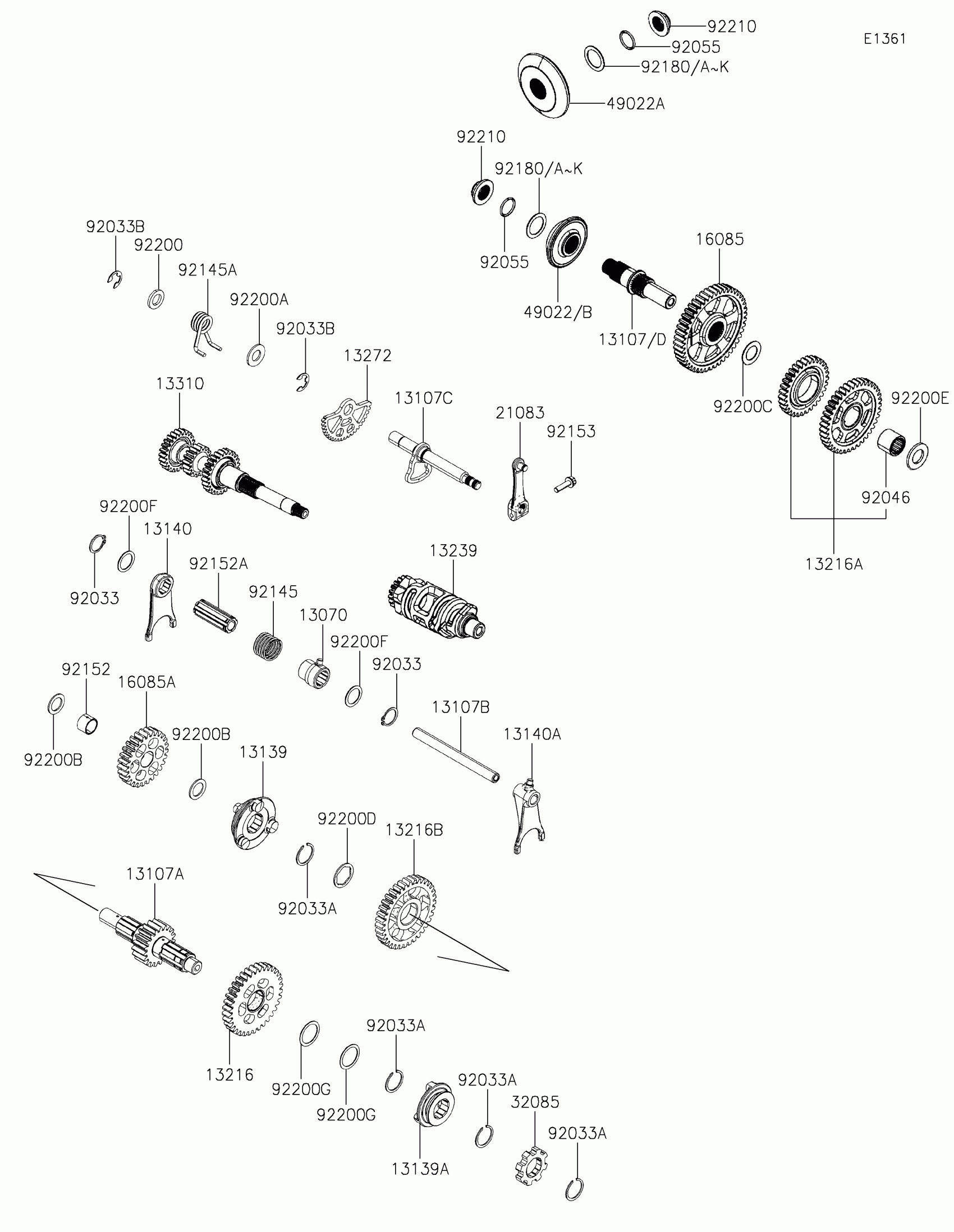

Kawasaki MULE PRO-MX™ Transmission Diagram

#

Description
Price

13070

GUIDE,FORK-SHIFT,RH

13070-Y005

$27.97

13107

SHAFT,MAIN,A MARK

13107-Y025

$200.32

13107A

SHAFT,COUNTER,19T

13107-Y026

$153.54

13107B

SHAFT,SHIFT FORK GUIDE

13107-Y028

$18.22

13107C

SHAFT,GEAR SHIFT

13107-Y029

$78.17

13107D

SHAFT,MAIN,B MARK

13107-Y031

$200.32

13139

SHIFTER,FORWARD & LOWER

13139-Y003

$48.98

13139A

SHIFTER,BACKWARD

13139-Y004

$58.15

13140

FORK-SHIFT,RH

13140-Y003

$50.08

13140A

FORK-SHIFT,LH

13140-Y004

$110.43

13216

GEAR-COMP,BACKWARD 2ND DRIVEN

13216-Y005

$83.17

13216A

GEAR-COMP,BACKWARD

13216-Y006

$157.48

13216B

GEAR-COMP,LOWER DRIVE

13216-Y007

$73.36

13239

DRUM-ASSY-CHANGE

13239-Y002

$126.77

13272

PLATE,GEAR SHIFT

13272-Y029

$46.47

13310

SHAFT-ASSY,DRIVE

13310-Y001

$229.04

16085

GEAR,FINAL,46T

16085-Y015

$138.15

16085A

GEAR,FORWARD DRIVEN,27T

16085-Y016

$65.21

21083

ARM,GEAR SELECT ASSY

21083-Y005

$55.34

32085

STOPPER,PARK

32085-Y005

$20.08

49022

GEAR-BEVEL,DRIVE,A MARK

49022-Y004

$110.09

49022A

GEAR-BEVEL,DRIVEN

49022-Y005

$135.01

49022B

GEAR-BEVEL,DRIVE,B MARK

49022-Y006

$112.96

92033

RING-SNAP

92033-Y011

$1.15

92033A

RING-SNAP,28MM

92033-Y022

$1.92

92033B

RING-SNAP,12MM

92033-Y024

$1.69

92046

BEARING-NEEDLE,20X28X23

92046-Y011

$73.20

92055

RING-O,22MM

92055-Y061

$2.98

92145

SPRING

92145-Y060

$6.25

92145A

SPRING,RETURN

92145-Y061

$24.14

92152

COLLAR,20X17X14

92152-Y060

$10.59

92152A

COLLAR,FORK-SHIFT,RH

92152-Y061

$34.71

92153

BOLT,FLANGE,6X22

92153-Y026

$0.68

92180

SHIM,FINAL BEVEL GEAR,T=0.6

92180-Y032

$4.97

92180A

SHIM,FINAL BEVEL GEAR,T=0.65

92180-Y033

$4.97

92180B

SHIM,FINAL BEVEL GEAR,T=0.7

92180-Y034

$4.97

92180C

SHIM,FINAL BEVEL GEAR,T=0.75

92180-Y035

$4.97

92180D

SHIM,FINAL BEVEL GEAR,T=0.8

92180-Y036

$4.97

92180E

SHIM,FINAL BEVEL GEAR,T=0.85

92180-Y037

$4.97

92180F

SHIM,FINAL BEVEL GEAR,T=0.9

92180-Y038

$4.97

92180G

SHIM,FINAL BEVEL GEAR,T=0.95

92180-Y039

$4.97

92180H

SHIM,FINAL BEVEL GEAR,T=1.0

92180-Y040

$4.97

92180I

SHIM,FINAL BEVEL GEAR,T=1.05

92180-Y041

$4.97

92180J

SHIM,FINAL BEVEL GEAR,T=1.1

92180-Y042

$4.97

92180K

SHIM,FINAL BEVEL GEAR,T=1.15

92180-Y043

$4.97

92200

WASHER,THRUST,14X28X2

92200-Y072

$23.95

92200A

WASHER,14MM

92200-Y077

$1.97

92200B

WASHER,THRUST,17MM

92200-Y078

$2.98

92200C

WASHER,THRUST,20X33X1

92200-Y079

$4.97

92200D

WASHER,25X31X1.5

92200-Y080

$2.98

92200E

WASHER,THRUST,20X36X3

92200-Y081

$8.39

92200F

WASHER,THRUST,20MM

92200-Y082

$2.98

92200G

WASHER,25X31X0.8

92200-Y083

$4.34

92210

NUT,FLANGE,20MM

92210-Y084

$13.28
