2016 Kawasaki Mule PRO-FXT™ Timing Belt Diagram

← All diagrams

Find the part on the Timing Belt diagram for your 2016 Kawasaki Mule PRO-FXT™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

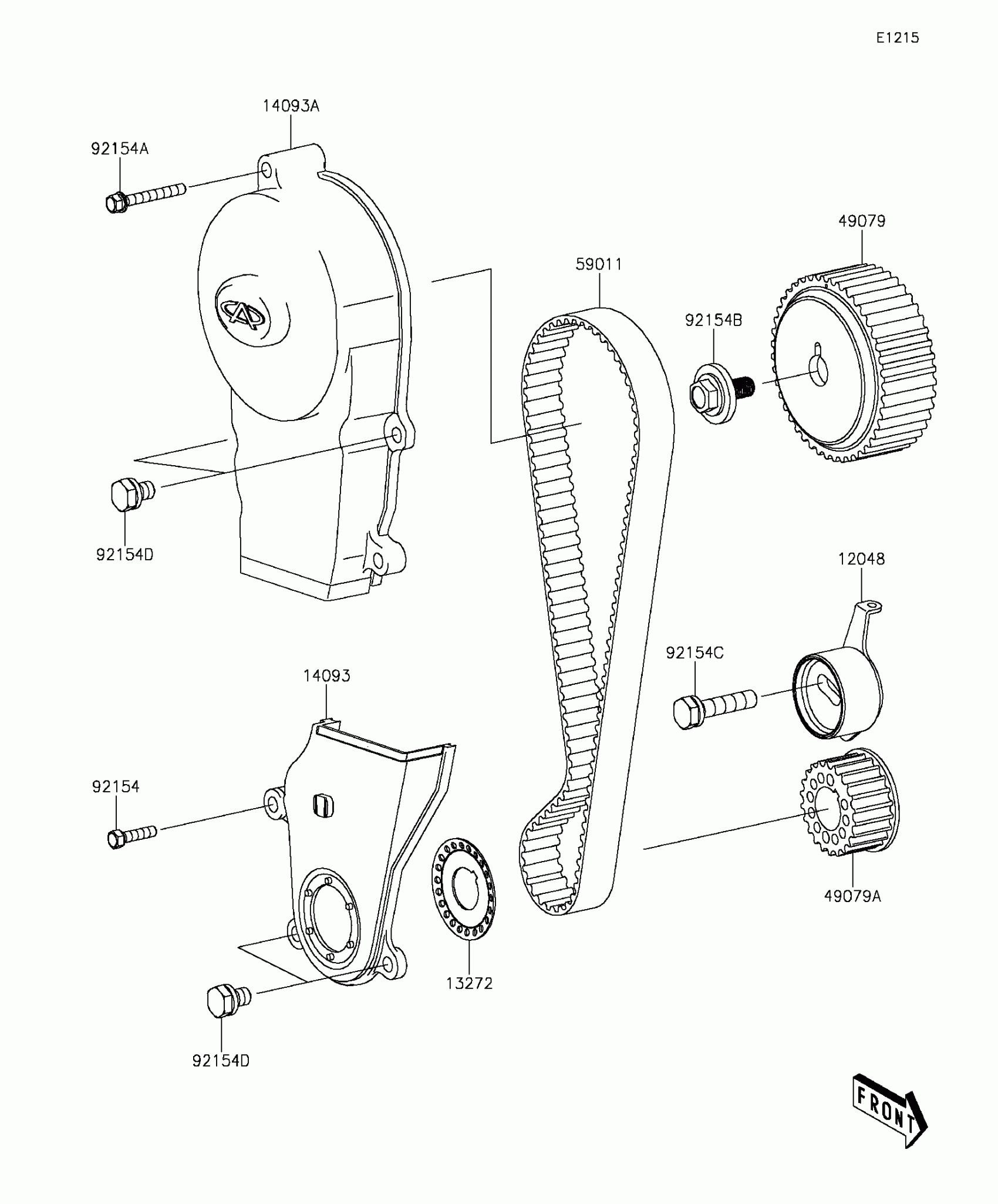

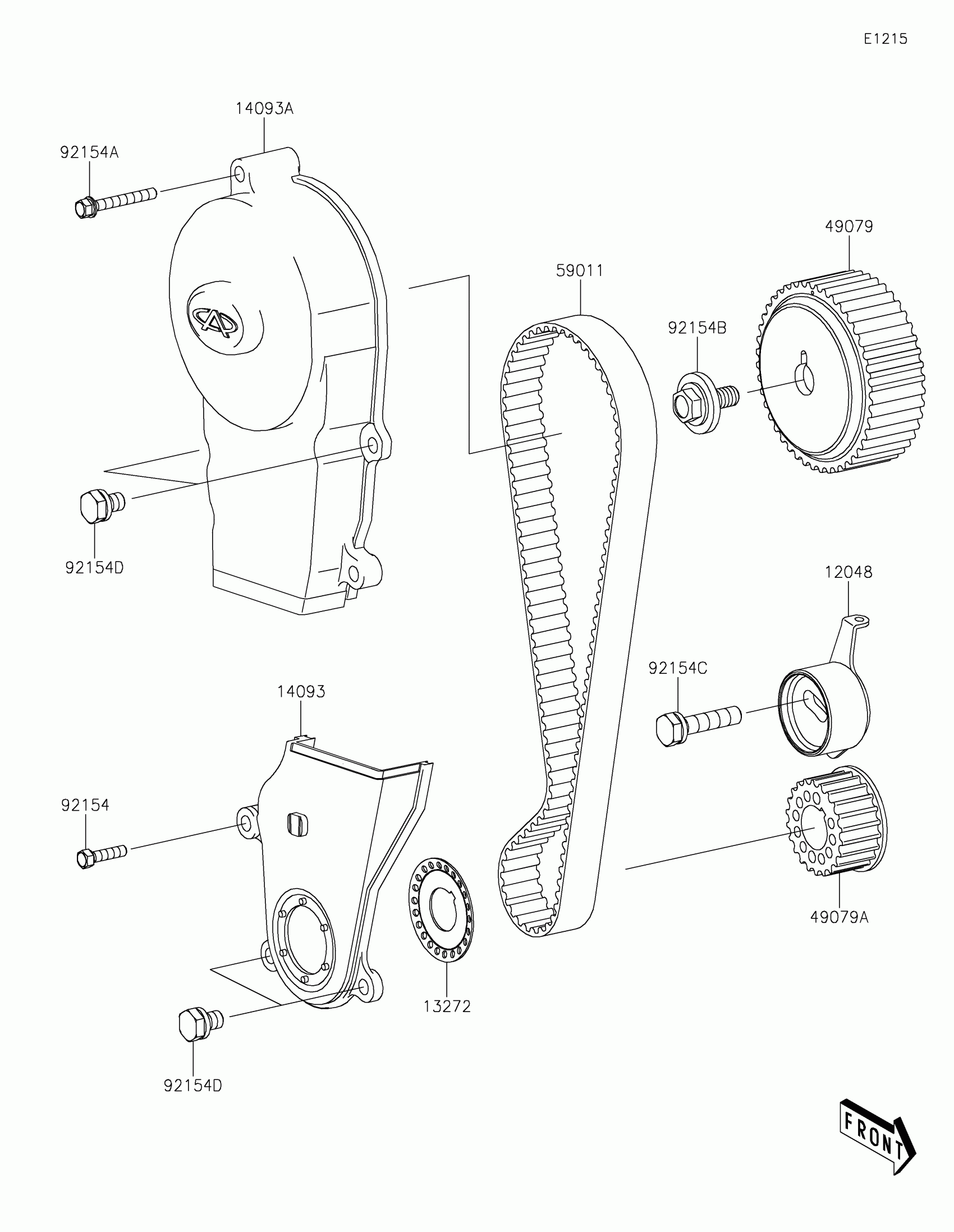

2016 Kawasaki Mule PRO-FXT™ Timing Belt Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12048

TENSIONER-ASSY

12048-0093

1
Out of stock

13272

PLATE,TIMING BELT

13272-1872

1

$1.54

In stock

14093

COVER,TIMING BELT,LWR

14093-0200

1
Out of stock

14093A

COVER,TIMING BELT,UPP

14093-0201

1
Out of stock

49079

PULLEY-BELT,CAMSHAFT

49079-0023

1
Out of stock

49079A

PULLEY-BELT,CRANKSHAFT

49079-0024

1
Out of stock

59011

BELT,TIMING

59011-0042

1
Out of stock

92154

BOLT,6X25

92154-1583

1
Out of stock

92154A

BOLT,6X50

92154-1591

1
Out of stock

92154B

BOLT,FLANGED

92154-1614

1
Out of stock

92154C

BOLT,10X45

92154-1615

1
Out of stock

92154D

BOLT,6X16

92154-1617

1
Out of stock
