2016 Kawasaki Mule PRO-FXT™ Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2016 Kawasaki Mule PRO-FXT™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

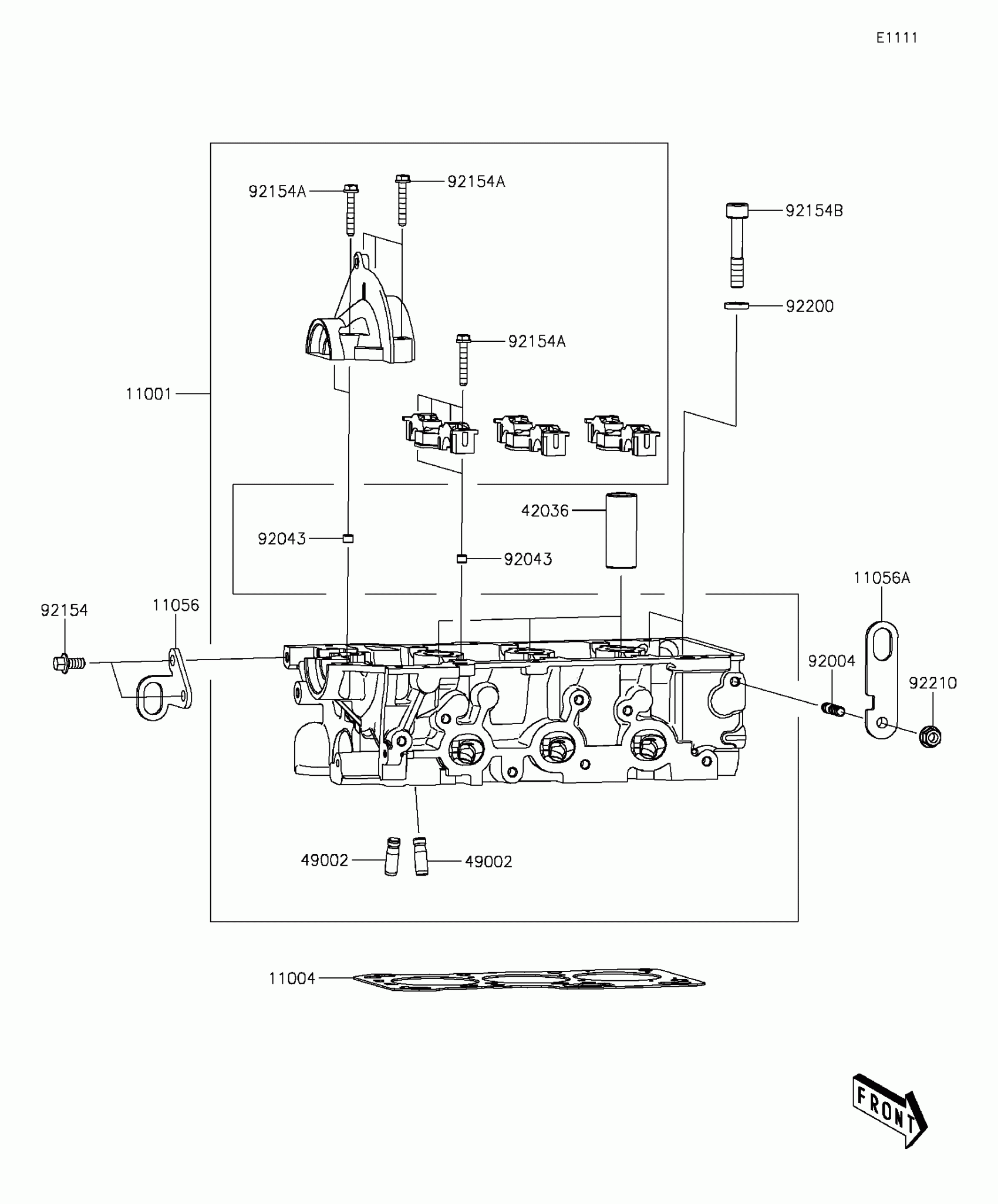

2016 Kawasaki Mule PRO-FXT™ Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11001

HEAD-CYLINDER

11001-0839

1
Out of stock

11004

GASKET-HEAD

11004-0747

1
Out of stock

11056

BRACKET

11056-7081

1
Out of stock

11056A

BRACKET

11056-7082

1
Out of stock

42036

SLEEVE,SPARK PLUG

42036-0764

1
Out of stock

49002

GUIDE-VALVE

49002-0030

1
Out of stock

92004

STUD

92004-0734

1
Out of stock

92043

PIN

92043-0831

1
Out of stock

92154

BOLT,FLANGED,8X16

92154-1588

1
Out of stock

92154A

BOLT,6X38

92154-1589

1
Out of stock

92154B

BOLT,SOCKET

92154-1590

1
Out of stock

92200

WASHER

92200-1683

1
Out of stock

92210

NUT

92210-0944

1
Out of stock
← Crankshaft/piston Cylinder Head Cover →
