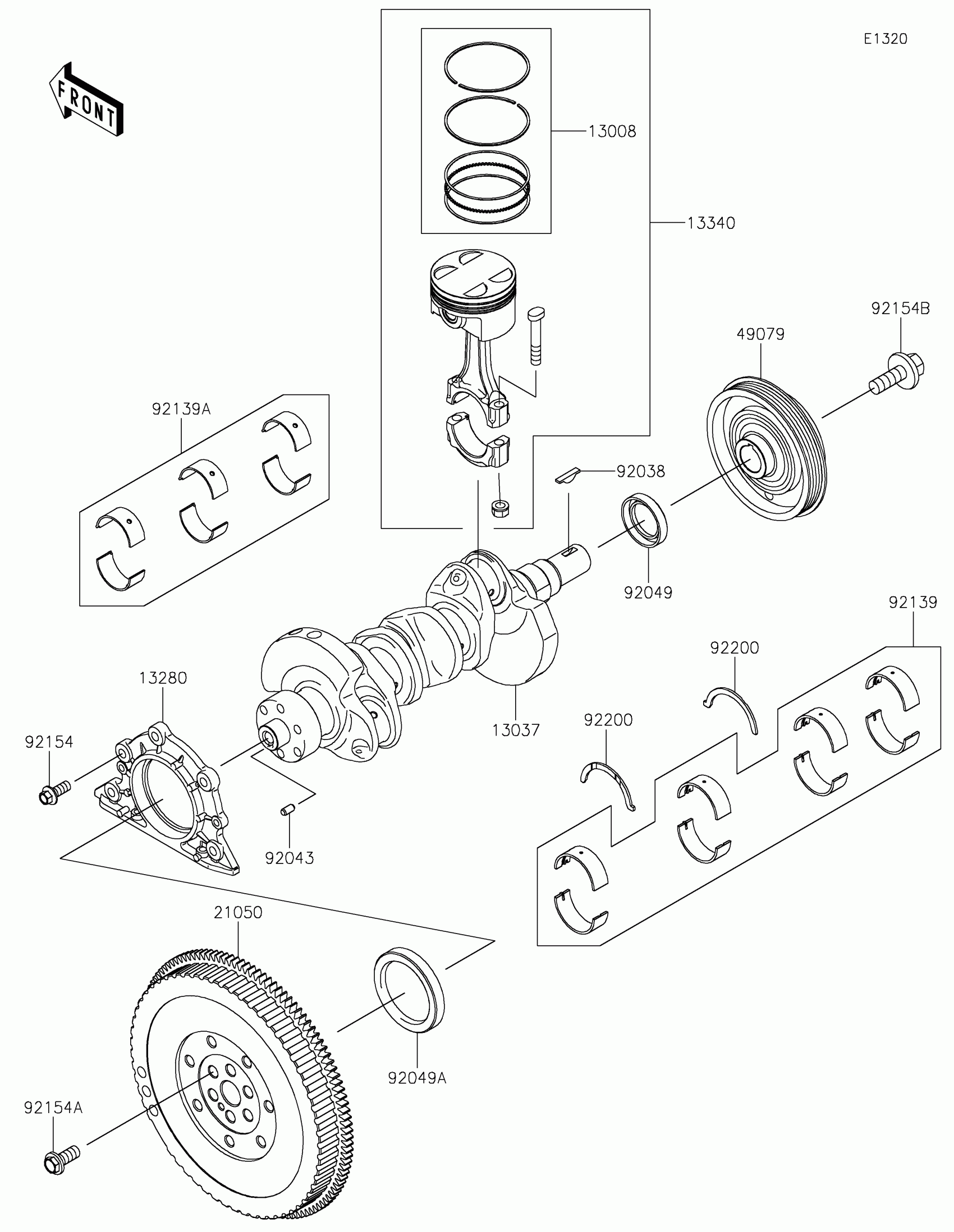

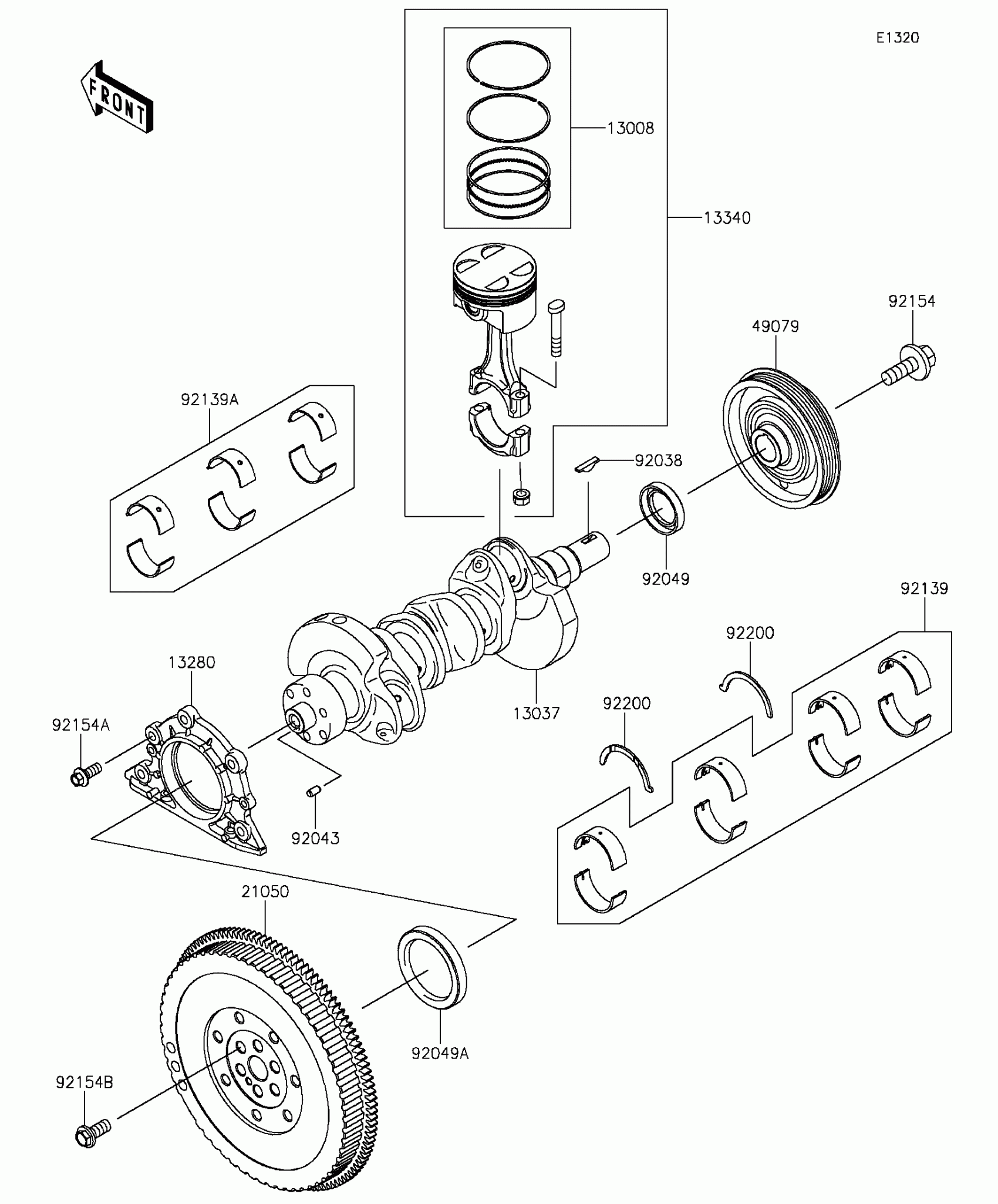

Kawasaki MULE PRO-FXT™ Crankshaft/Piston(s) Diagram

#

Description
Price

13008

RING-SET-PISTON

13008-0561

$42.84

13037

CRANKSHAFT

13037-0854

$254.06

13280

HOLDER

13280-0826

$26.14

13340

PISTON-ASSY-ENGINE

13340-0003

$147.35

21050

FLYWHEEL

21050-0008

$123.84

49079

PULLEY-BELT,CRANKSHAFT

49079-0021

$124.32

92038

KEY

92038-0005

$3.49

92043

PIN

92043-0830

$0.74

92049

SEAL-OIL

92049-0774

$5.61

92049A

SEAL-OIL

92049-0775

$14.74

92139

BUSHING

92139-0833

$10.52

92139A

BUSHING

92139-0838

$13.82

92154

BOLT,CRANKSHAFT PULLEY

92154-1585

$2.27

92154A

BOLT,FLANGED,8X20

92154-1586

$1.29

92154B

BOLT,FLYWHEEL

92154-1587

$1.89

92200

WASHER

92200-1682

$3.08
