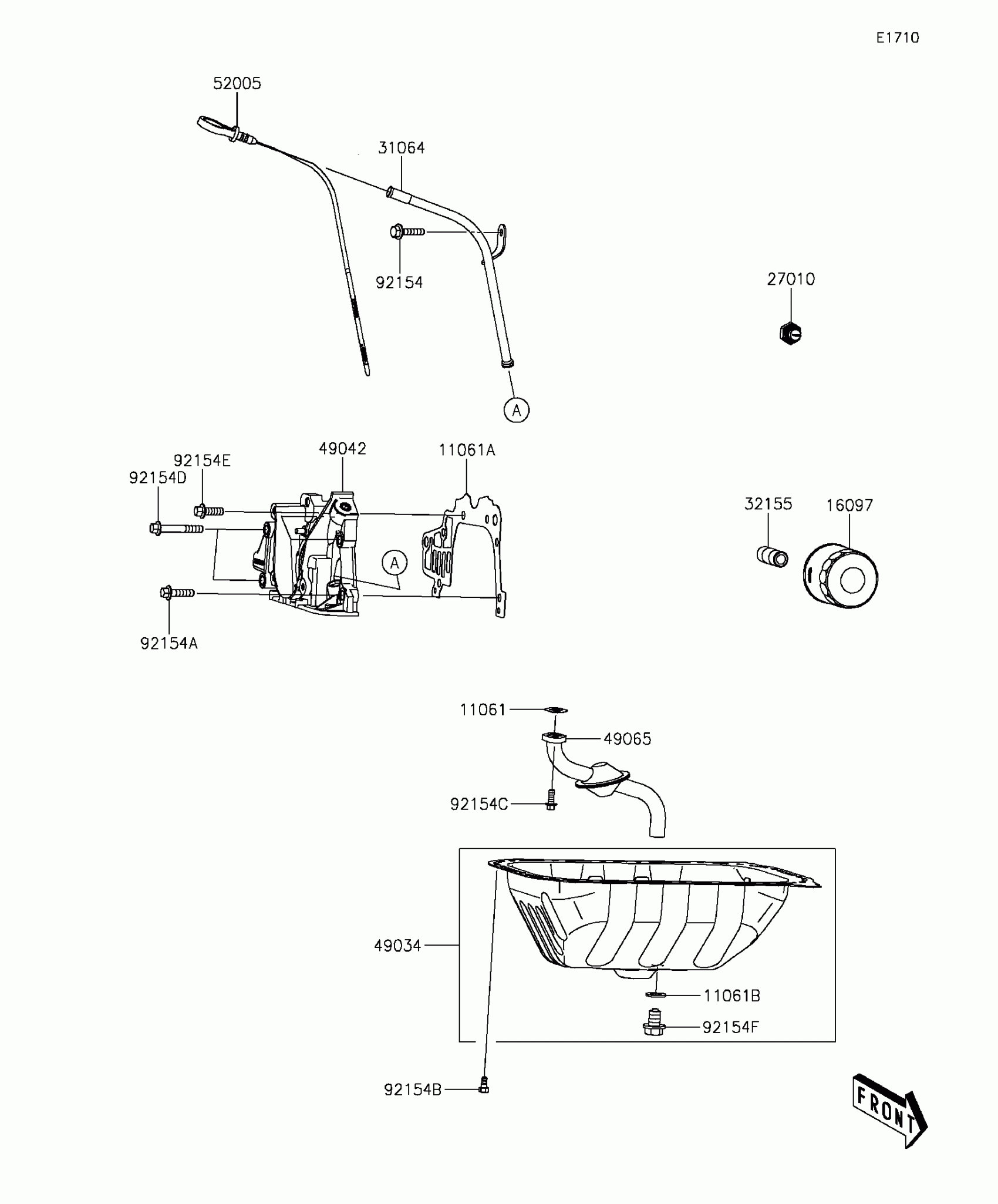

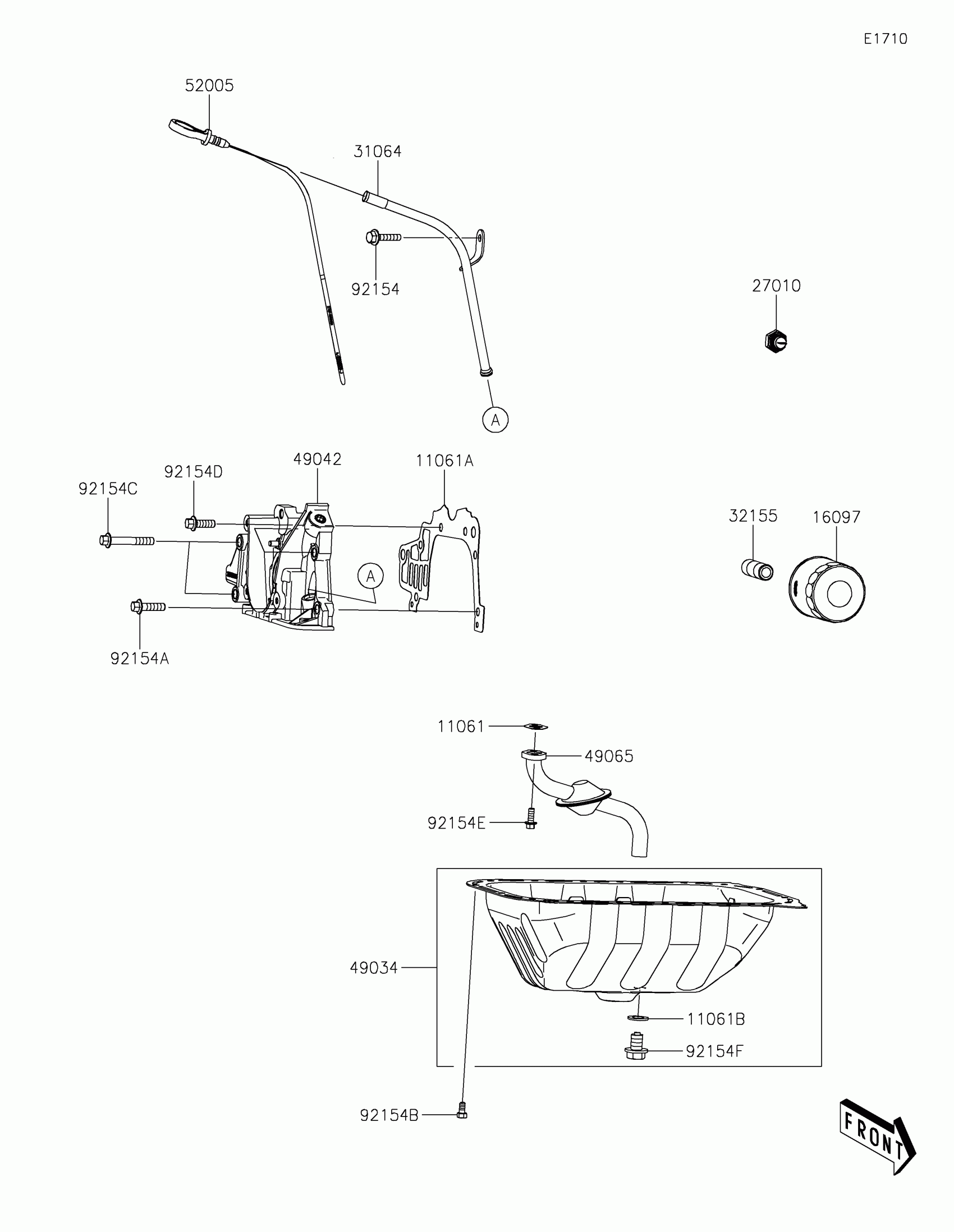

Kawasaki MULE PRO-FXT™ Oil Pump/Oil Filter Diagram

Description

Price

11061

GASKET,OIL PICKUP

11061-0957

$1.62

11061A

GASKET,OIL PUMP

11061-0958

$6.22

11061B

GASKET,DRAIN

11061-0962

$1.33

16097

FILTER-ASSY-OIL

16097-0010

$7.02

27010

SWITCH,OIL PRESSURE

27010-0804

$7.15

31064

PIPE-COMP,LEVEL GAUGE

31064-0633

$15.68

32155

PIPE,OIL FILTER

32155-1893

$1.80

49034

PAN-OIL

49034-0558

$515.68

49042

PUMP-OIL

49042-0001

$111.37

49065

FILTER-OIL

49065-0029

$36.39

52005

GAUGE,OIL LEVEL

52005-0728

$9.81

92154

BOLT,FLANGED

92154-1579

$0.93

92154A

BOLT,FLANGED,8X30

92154-1592

$0.83

92154B

BOLT,6X12

92154-1594

$0.60

92154C

BOLT,FLANGED,6X16

92154-1596

$0.71

92154D

BOLT,FLANGED,8X55

92154-1601

$1.88

92154E

BOLT,FLANGED,8X25

92154-1602

$0.87

92154F

BOLT,DRAIN

92154-1635

$3.71
