2026 Kawasaki Mule PRO-FXR™ 1000 LE Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2026 Kawasaki Mule PRO-FXR™ 1000 LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

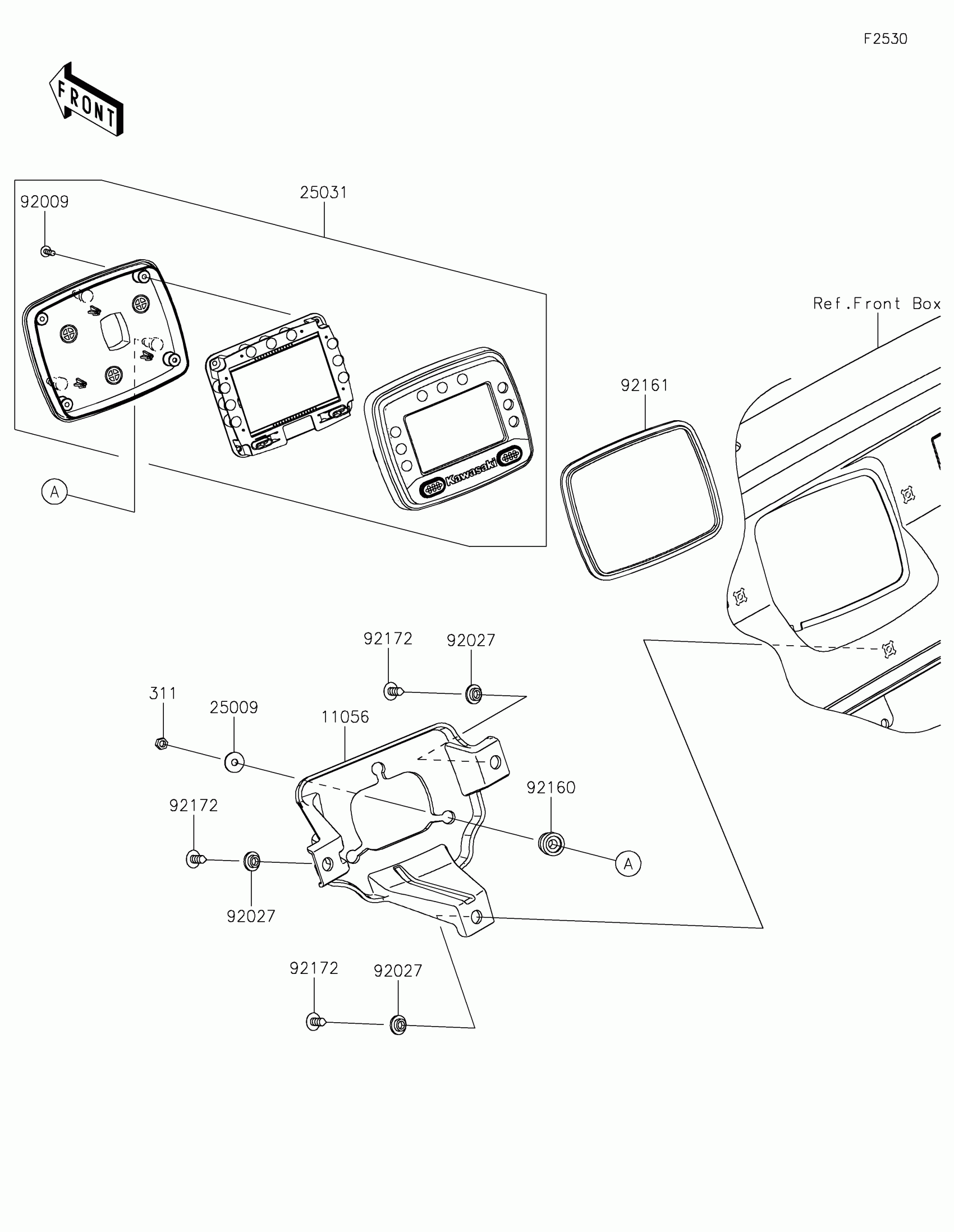

2026 Kawasaki Mule PRO-FXR™ 1000 LE Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,METER

11056-2956

1
Out of stock

25009

WASHER,5.2X16X1.2

25009-004

1
Out of stock

25031

METER-ASSY,LCD

25031-1322

1
Out of stock

92009

SCREW,TAPPING,3X12

92009-1255

1
Out of stock

92027

COLLAR,L=4.6

92027-1168

1
Out of stock

92160

DAMPER

92160-1460

1
Out of stock

92161

DAMPER,METER

92161-0906

1
Out of stock

92172

SCREW,6X16

92172-0284

1
Out of stock

311

NUT-HEX,5MM

311AB0500

1
Out of stock
