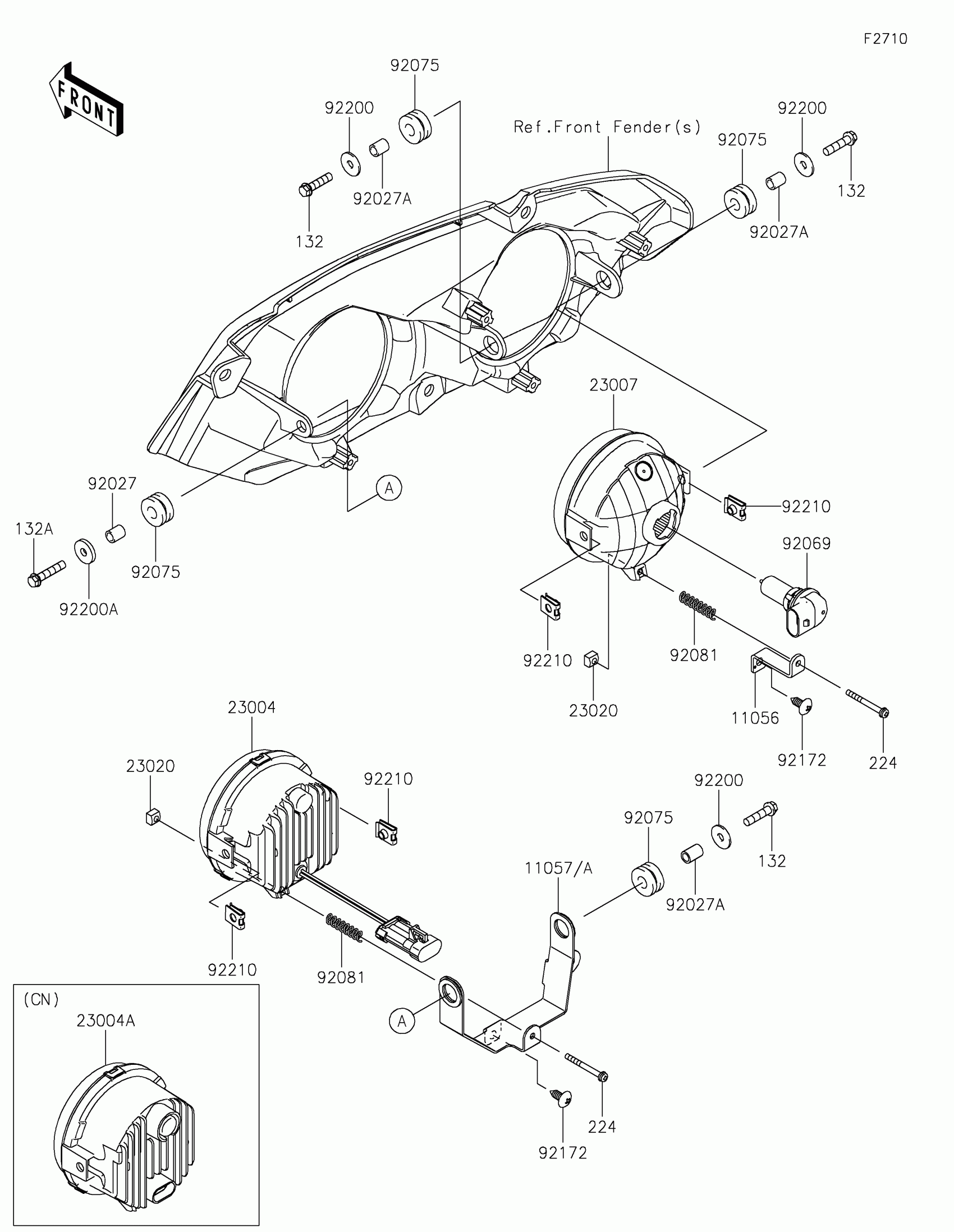

Find the part on the Headlight diagram for your 2026 Kawasaki Mule PRO-FXR™ 1000 LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki Mule PRO-FXR™ 1000 LE Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-2933

1
Out of stock

11057

BRACKET,LED HL,LH

11057-0755

1
Out of stock

11057A

BRACKET,LED HL,RH

11057-0783

1
Out of stock

23004A

LAMP-HEAD,LED

23004-0448

1
Out of stock

23007

LENS-COMP,HEAD LAMP

23007-0220

1
Out of stock

23020

NUT,4MM,FOCUS ADJUST

23020-018

1
Out of stock

92027

COLLAR,6.8X10X14.5

92027-156

1
Out of stock

92027A

COLLAR,6.8X10X12

92027-162

1
Out of stock

92069

BULB,12V 35/35W

92069-0102

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92081

SPRING,FOCUS ADJUST

92081-1896

1
Out of stock

92172

SCREW,6X16

92172-0284

1
Out of stock

92200

WASHER,6.5X20X1.6

92200-0283

1
Out of stock

92200A

WASHER,6.5X20X3.2

92200-0359

1
Out of stock

92210

NUT

92210-1125

1
Out of stock

132

1

$2.29

In stock

132A

1

$2.17

In stock

224

SCREW-PAN-WP-CROS

224AA0440

1
Out of stock
