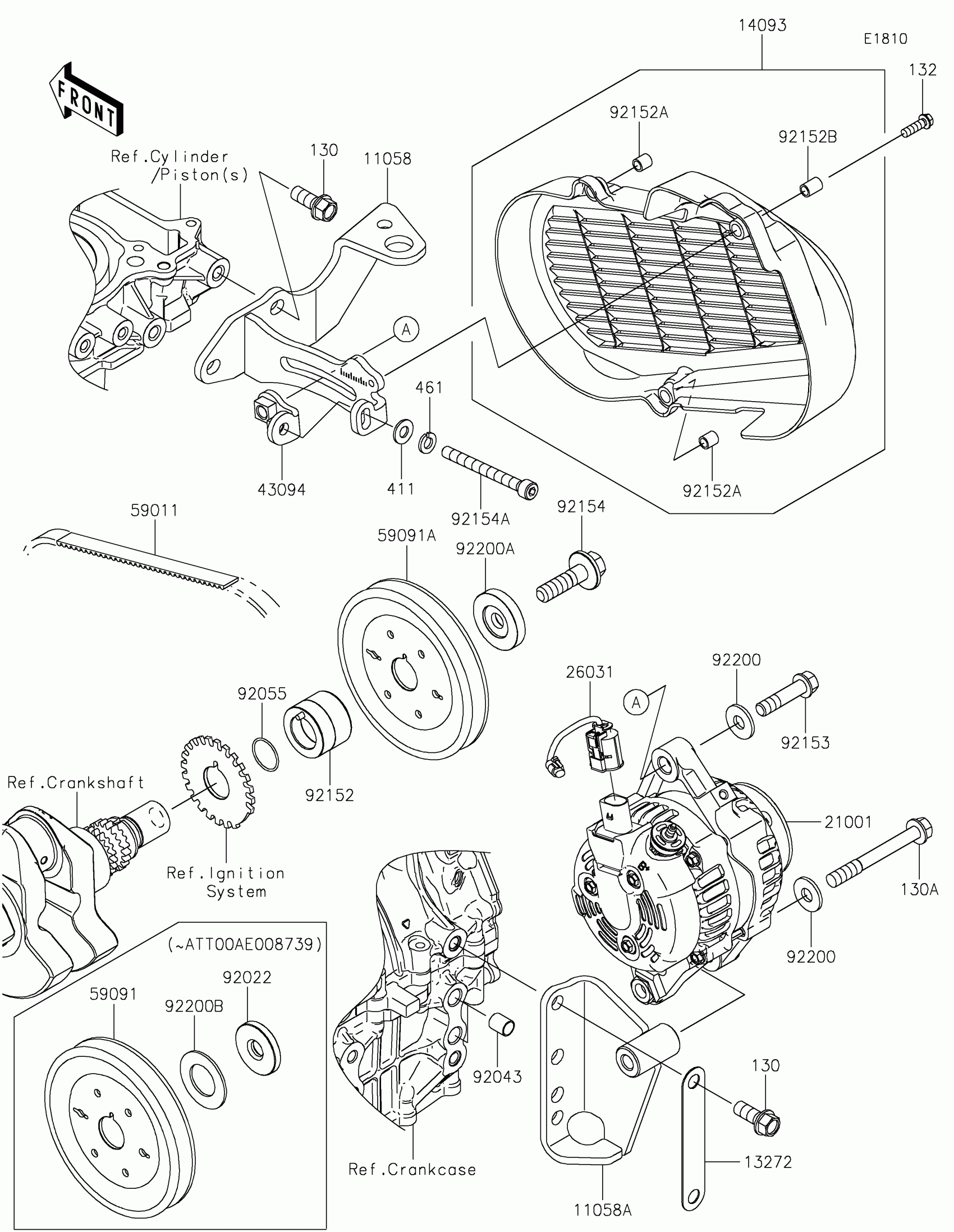

Kawasaki MULE PRO-FXR™ 1000 LE Generator Diagram

Description

Price

11058

BRACKET,GENERATOR UPPER

11058-0328

$135.78

11058A

BRACKET,GENERATOR LOWER

11058-0329

$120.95

13272

PLATE,GENERATOR LOWER

13272-4113

$1.68

14093

COVER,GENERATOR

14093-1393

$92.87

21001

GENERATOR

21001-0687

$791.58

26031

HARNESS,GENERATOR

26031-4001

$34.98

43094

ADJUSTER,GENERATOR

43094-0014

$9.66

59011

BELT

59011-0059

$10.97

59091A

PULLEY

59091-0019

$99.81

92043

PIN,10.1X12X14

92043-4009

$4.67

92055

RING-O,21.5X1.5

92055-1293

$3.81

92152

COLLAR,PULLEY

92152-2928

$39.70

92152A

COLLAR

92152-2948

$4.76

92152B

COLLAR

92152-2949

$5.08

92153

BOLT,FLANGED,10X42

92153-1957

$2.98

92154

BOLT-FLANGED,12X43

92154-7017

$5.73

92154A

BOLT-SOCKET,8X80

92154-7077

$7.81

92200

WASHER,11X26X2.6

92200-0352

$2.34

92200A

WASHER

92200-2621

$38.35

130

BOLT-FLANGED

130CA1025

$1.35

130A

BOLT-FLANGED,10X85

130CA1085

$3.10

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77

411

WASHER-PLAIN,8MM

411AA0800

$0.81

461

WASHER-SPRING,8MM

461DA0800

$0.44
