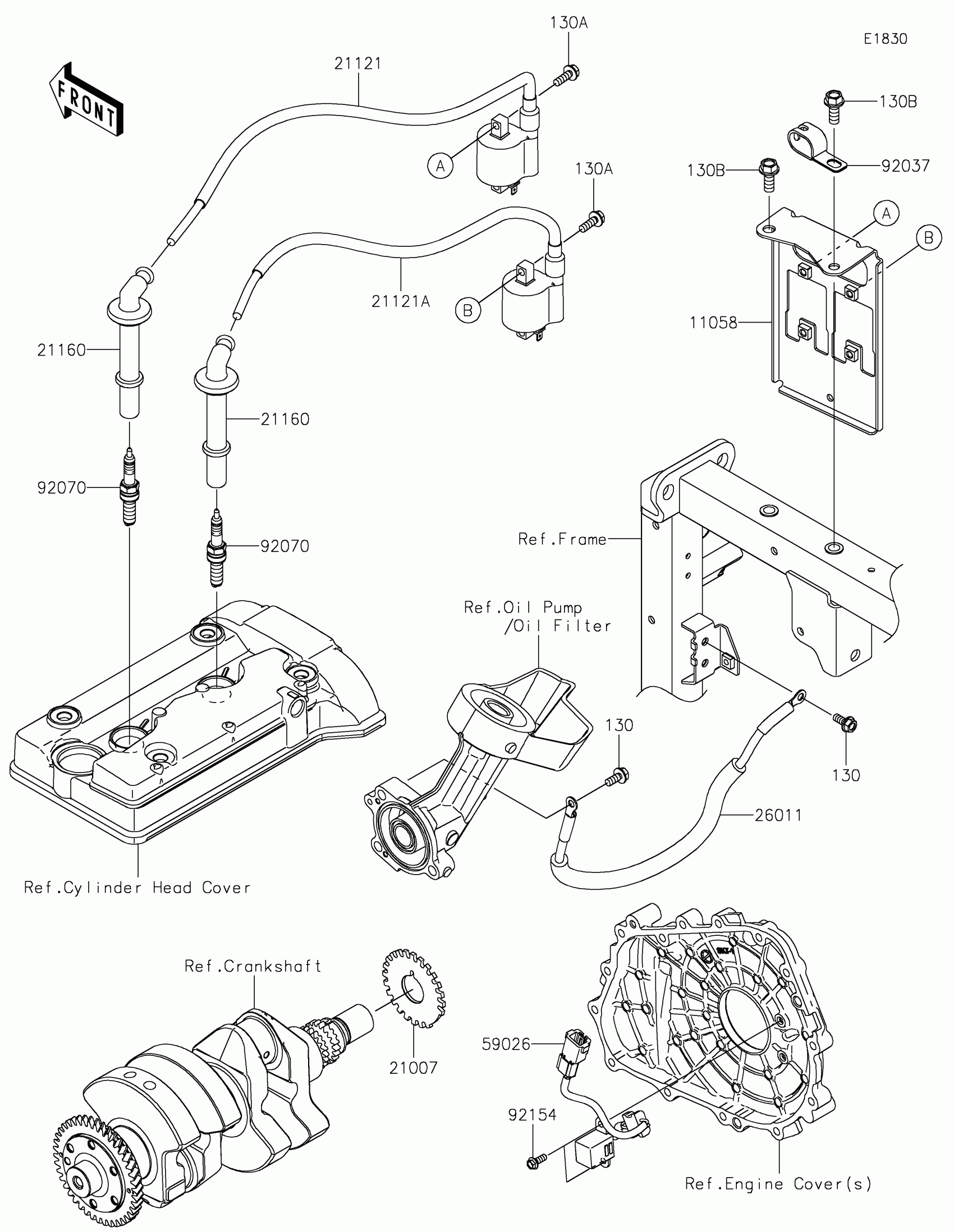

Find the part on the Ignition System diagram for your 2026 Kawasaki Mule PRO-FXR™ 1000 LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki Mule PRO-FXR™ 1000 LE Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,COIL-IGNITION

11058-0333

1
Out of stock

21007

ROTOR

21007-0726

1
Out of stock

21121

COIL-IGNITION,#1

21121-0751

1
Out of stock

21121A

COIL-IGNITION,#2

21121-0752

1
Out of stock

21160

CAP-ASSY-PLUG

21160-0030

1
Out of stock

26011

WIRE-LEAD

26011-2420

1
Out of stock

59026

COIL-PULSING

59026-0566

1
Out of stock

92037

CLAMP

92037-2204

1
Out of stock

92070

PLUG-SPARK,LMAR9G(NGK)

92070-0716

1
Out of stock

92154

BOLT,FLANGED,5X14

92154-3884

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

130A

BOLT-FLANGED,6X18

130BA0618

1

$1.36

In stock

130B

BOLT-FLANGED,8X20

130BA0820

1

$3.27

In stock
