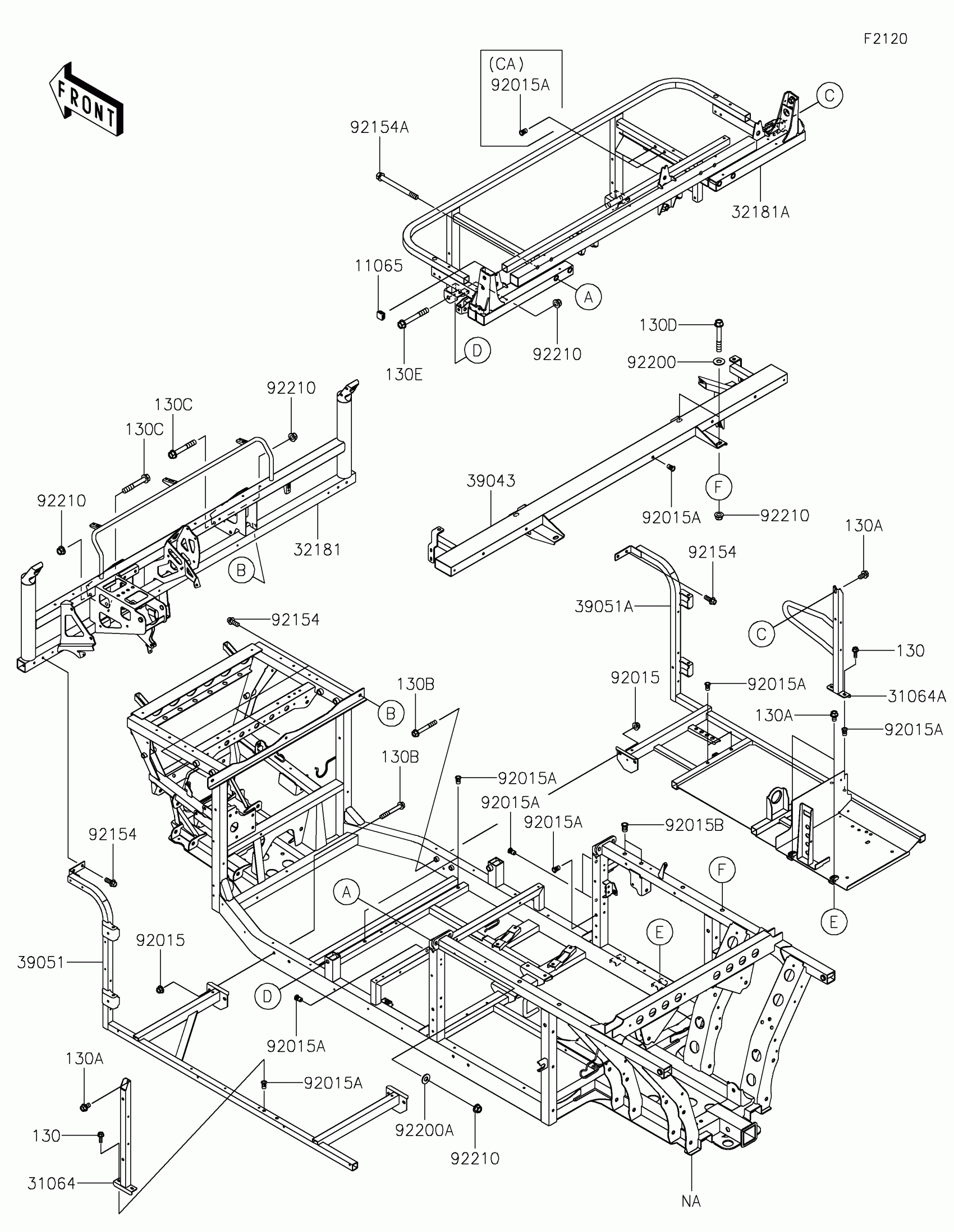

Kawasaki MULE PRO-FXR 1000 Frame(MRFNN-MSSNL) Diagram

Description

Price

11065

CAP

11065-0901

Unavailable

31064

PIPE-COMP,SEAT SIDE,LH

31064-0706

$41.20

31064A

PIPE-COMP,SEAT SIDE,RH

31064-0707

$56.85

32181

FRAME-SUB-COMP,DASH PANEL

32181-0048

$775.21

32181A

FRAME-SUB-COMP,SEAT

32181-0049

$891.17

39043

CROSSMEMBER-COMP,RR CROSS

39043-0042

$484.54

39051

FRAME-COMP-SIDE,LH

39051-0015

$327.32

39051A

FRAME-COMP-SIDE,RH

39051-0016

$626.53

92015

NUT,8MM

92015-1432

$4.93

92015A

NUT,POP,6MM,L=15

92015-1791

$3.57

92015B

NUT,POP,8MM,L=16.5

92015-1793

$4.42

92154

BOLT,FLANGED,8X20

92154-1226

$0.85

92154A

BOLT,FLANGED,10X110

92154-1353

$3.74

92200

WASHER,10.5X25X1.6

92200-1595

$4.65

92200A

WASHER,10.3X23X1.6

92200-2009

$1.04

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

130

BOLT-FLANGED,6X18

130BA0618

$1.17

130A

BOLT-FLANGED,8X14

130BA0814

$1.54

130B

BOLT-FLANGED,8X60

130BA0860

$1.24

130C

BOLT-FLANGED,10X65

130BA1065

$2.17

130D

BOLT-FLANGED,10X70

130BA1070

$2.25

130E

BOLT-FLANGED,10X75

130CA1075

$3.85

92015A

NUT,POP,6MM,L=15

92015-1791

$3.57
