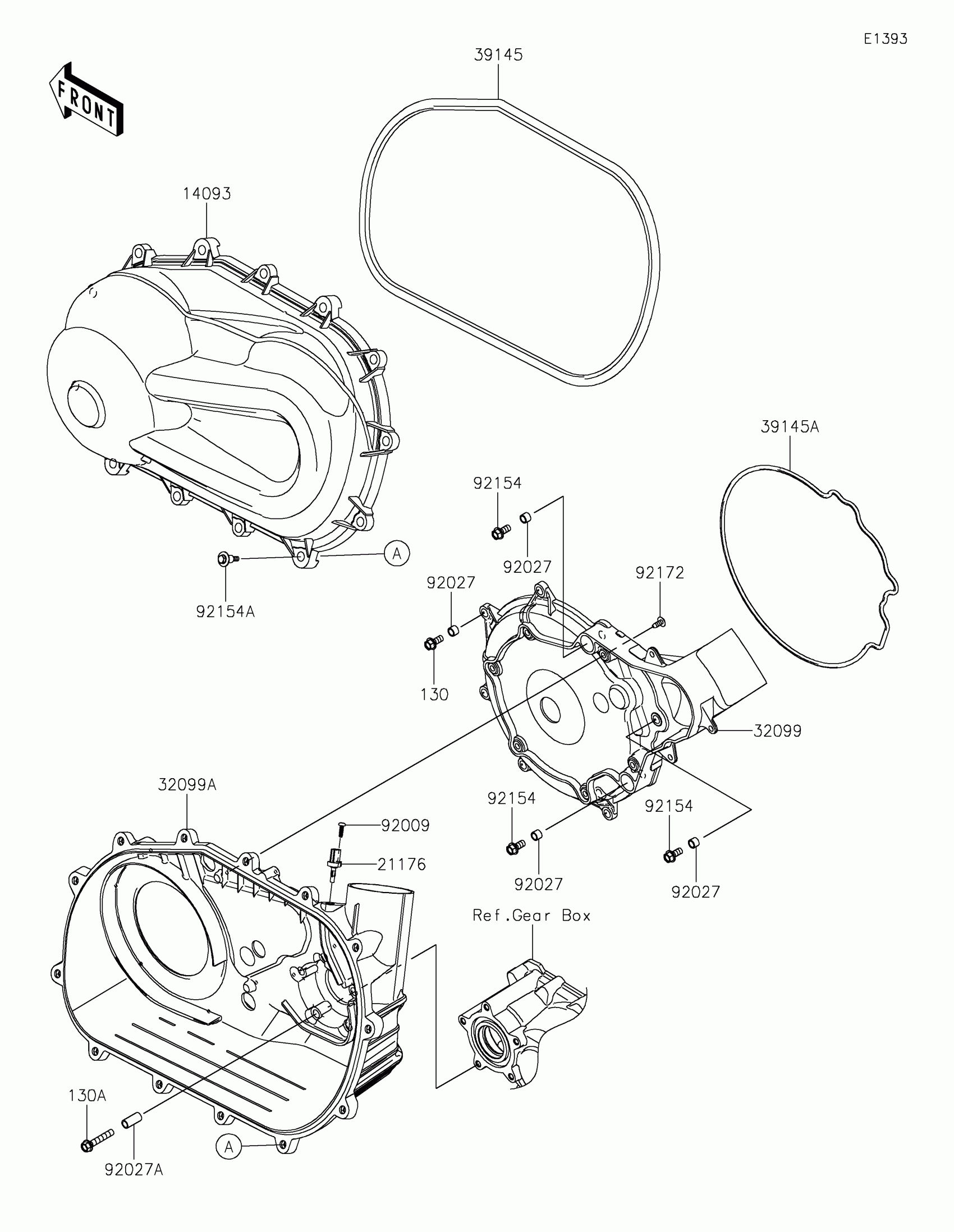

Kawasaki MULE PRO-FXR™ 1000 Converter Cover Diagram

Description

Price

14093

COVER,CVT

14093-1361

$52.85

21176

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

32099

CASE,INNER

32099-0823

$37.25

32099A

CASE,OUTER

32099-0824

$121.17

39145

TRIM-SEAL,CVT COVER

39145-0742

$100.01

39145A

TRIM-SEAL,E/G SIDE

39145-0771

$48.90

92009

SCREW,TAPPING,5X16

92009-1264

$2.51

92027

COLLAR,8.8X12X9

92027-1568

$1.41

92027A

COLLAR

92027-4012

$5.25

92154

BOLT,FLANGED,8X18

92154-1386

$1.27

92154A

BOLT,CVT COVER

92154-1522

$2.27

92172

SCREW,6X16

92172-0284

$0.90

130

BOLT-FLANGED,8X18

130BA0818

$1.81

130A

BOLT-FLANGED,8X45

130BA0845

$1.39
