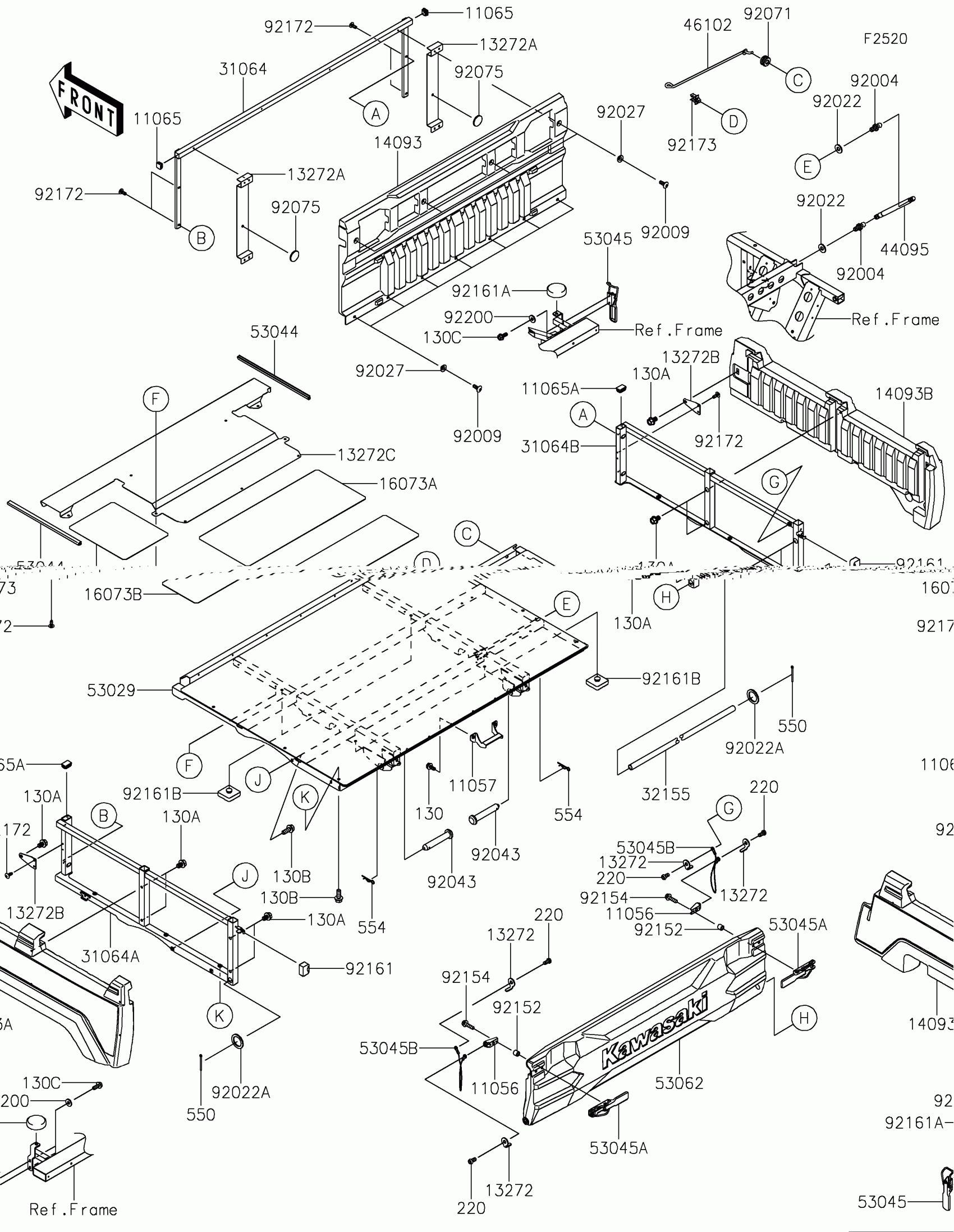

Kawasaki MULE PRO-FXR™ 1000 Carrier(s) Diagram

#

Description
Price

11056

BRACKET,STOPPER

11056-2848

$19.44

11057

BRACKET,GATE SUPPORT

11057-1438

$20.58

11065

CAP

11065-0901

$2.37

11065A

CAP

11065-0907

$2.37

13272

PLATE

13272-1597

$0.90

13272A

PLATE,FR COVER

13272-2101

$30.78

13272B

PLATE

13272-2299

$3.31

13272C

PLATE

13272-4154

$438.56

14093

COVER,SCREEN

14093-0301

$81.94

14093A

COVER,RESIN PANEL,LH,F.BLACK

14093-0585-6Z

$163.87

14093B

COVER,RESIN PANEL,RH,BLACK

14093-1441-6Z

$113.07

16073

INSULATOR,265X335

16073-0878

$10.25

16073A

INSULATOR,295X705

16073-0879

$23.71

16073B

INSULATOR,210X705

16073-0881

$19.46

31064

PIPE-COMP,FR FRAME

31064-0663

$201.90

31064A

PIPE-COMP,SIDE FRAME,LH

31064-0688

$122.03

31064B

PIPE-COMP,SIDE FRAME,RH

31064-0689

$122.03

32155

PIPE

32155-1533

$64.17

44095

DAMPER-GAS FILLED

44095-0002

$39.13

46102

ROD

46102-0629

$12.95

53029

CARRIER,BASE

53029-0379

$754.55

53044

TRIM,HEAT COVER

53044-0583

$7.58

53045

HOOK-ASSY,MAIN LOCK

53045-0025

$18.63

53045A

HOOK-ASSY,MAIN CLAMP

53045-0026

$21.27

53045B

HOOK-ASSY

53045-0029

$4.90

53062

GATE-TAIL

53062-0022

$125.99

92004

STUD

92004-0733

$2.44

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92022

WASHER,8.2X19X2

92022-1533

$4.85

92022A

WASHER,23X32X2.3

92022-1618

$5.42

92027

COLLAR,L=4.6

92027-1168

$3.81

92043

PIN,12.4X72.4

92043-0716

$7.15

92071

GROMMET,7.5X14X11

92071-0763

$4.07

92075

DAMPER,RUBBER

92075-261

$3.85

92152

COLLAR,6.8X10X9.3

92152-1799

$1.62

92154

BOLT,FLANGED,6X22

92154-1356

$1.14

92161

DAMPER

92161-1656

$1.05

92161A

DAMPER,10X40X10

92161-1775

$7.47

92161B

DAMPER,10X34X10

92161-1920

$1.20

92172

SCREW,TAPPING,6X16

92172-0739

$0.73

92173

CLAMP

92173-1850

$1.66

92200

WASHER,6.5X16X2.0

92200-1543

$1.68

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,8X12

130BA0812

$0.79

130B

BOLT-FLANGED,8X20

130BA0820

$3.04

130C

BOLT-FLANGED,6X16

130CA0616

$1.32

220

SCREW-PAN-CROS,6X10

220AB0610

$1.33

550

PIN-COTTER,3.0X30

550AA3030

$1.80

554

PIN-SNAP,12MM

554DA1200

$2.63
